SKU: OPD-A0432 Category: 4 Way RF Power Divider
Add to Wishlist

Description

The A-series power dividers are SMA connector 0° power dividers, covering the 0.5-18GHz range (specific mod-el covers 2-4GHz). They feature small size, low loss, lowVSWR, and high isolation. This series utilizes mass production control methods, ensuring high product consistency tomeet large-volume supply requirements. OPD-A0432 is primarily used in electronic warfare, radar, navigation, test andmeasurement, and communication systems for the distribution and combination of 4-way microwave signals. Customdesigns are available upon request.

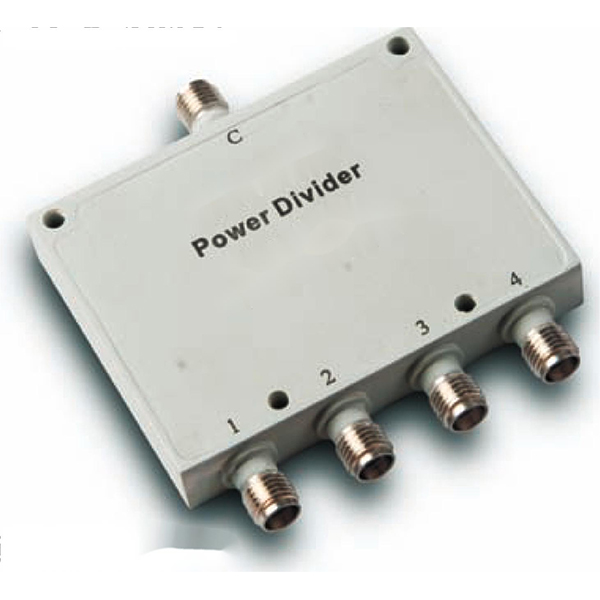

OPD-A0432

2-4GHz Insertion Loss 0.60dB SMA Connector 0° Power Divider


Property

Value

Frequency Range

2-4GHz

Insertion Loss

0.60dB

Isolation

20dB

Power Handling

30W

Connector

SMA-F

Amplitude Balance

±0.30dB

Phase Balance

±3°

Operating Temperature

-55~+85°C

Storage Temperature

-55~+100°C

Input VSWR

1.3

Output VSWR

1.2

Compliance

Meets GJB-1509-1992 test items and requirements

Features

SMA Connectors

0° Power Divider

Small Size

Low Loss

Low VSWR

High Isolation

Mass Production Consistency

Applications

Electronic Countermeasures, Testing and Measurement

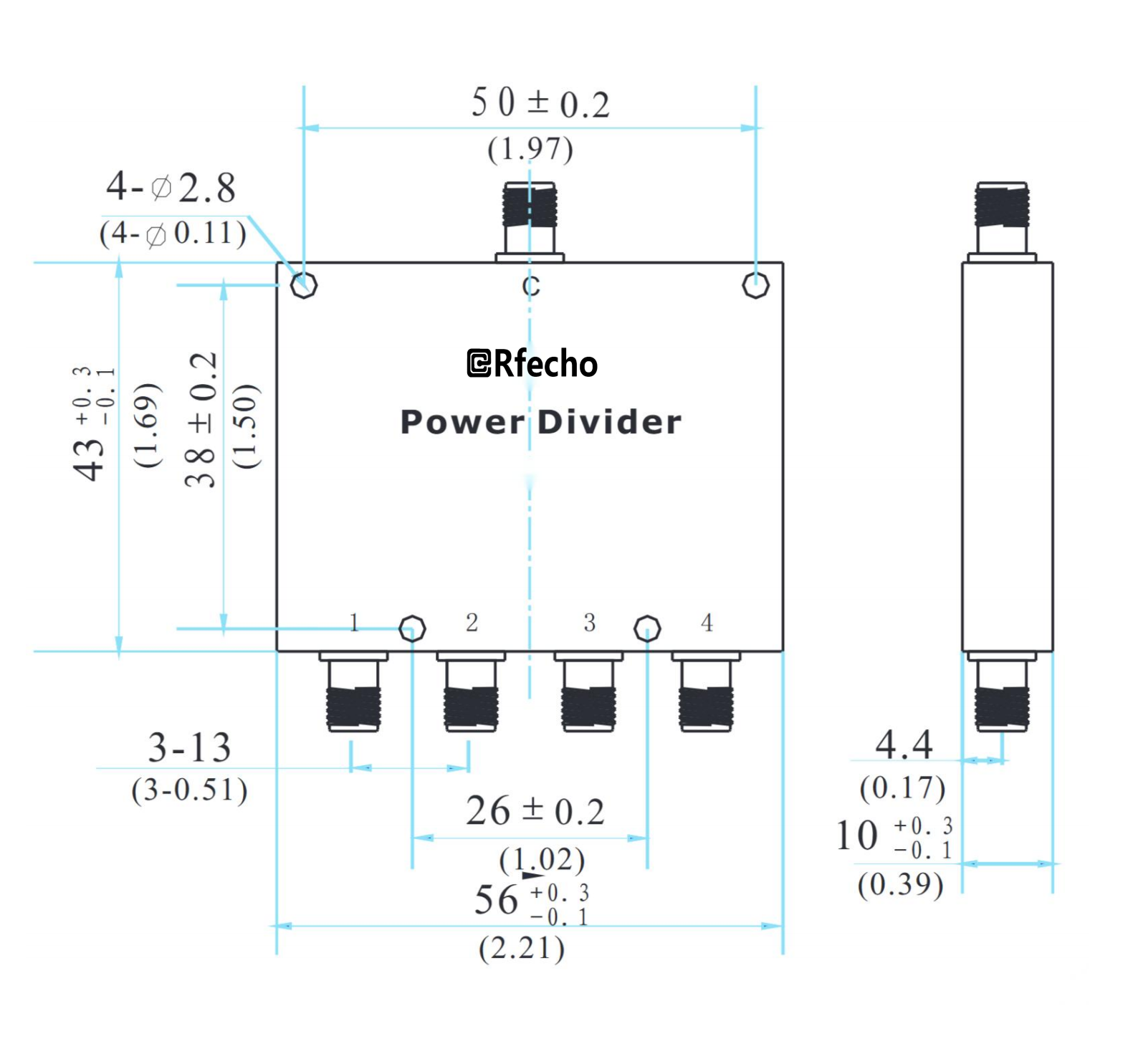

2-4GHz Insertion Loss 0.60dB SMA Connector 0° Power Divider-Outline
