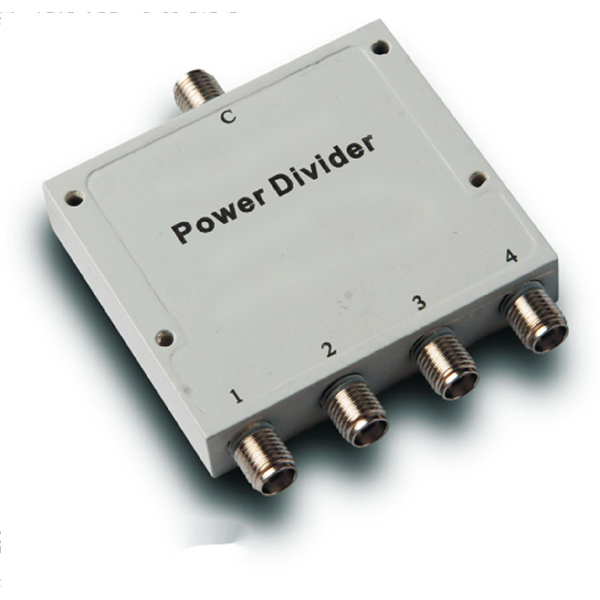

6-18GHz Insertion Loss 1.30dB SMA Connector 0° Power Divider
SMA connector 0° power divider
Wideband coverage (6-18GHz)
Small size, low loss, low VSWR, high isolation
High consistency due to mass production control
Suitable for electronic warfare, radar, test and measurement, and satellite communication systems
Used for 4-way microwave signal distribution and combination
Standardized product, customizable upon request
- Description
- Datasheet

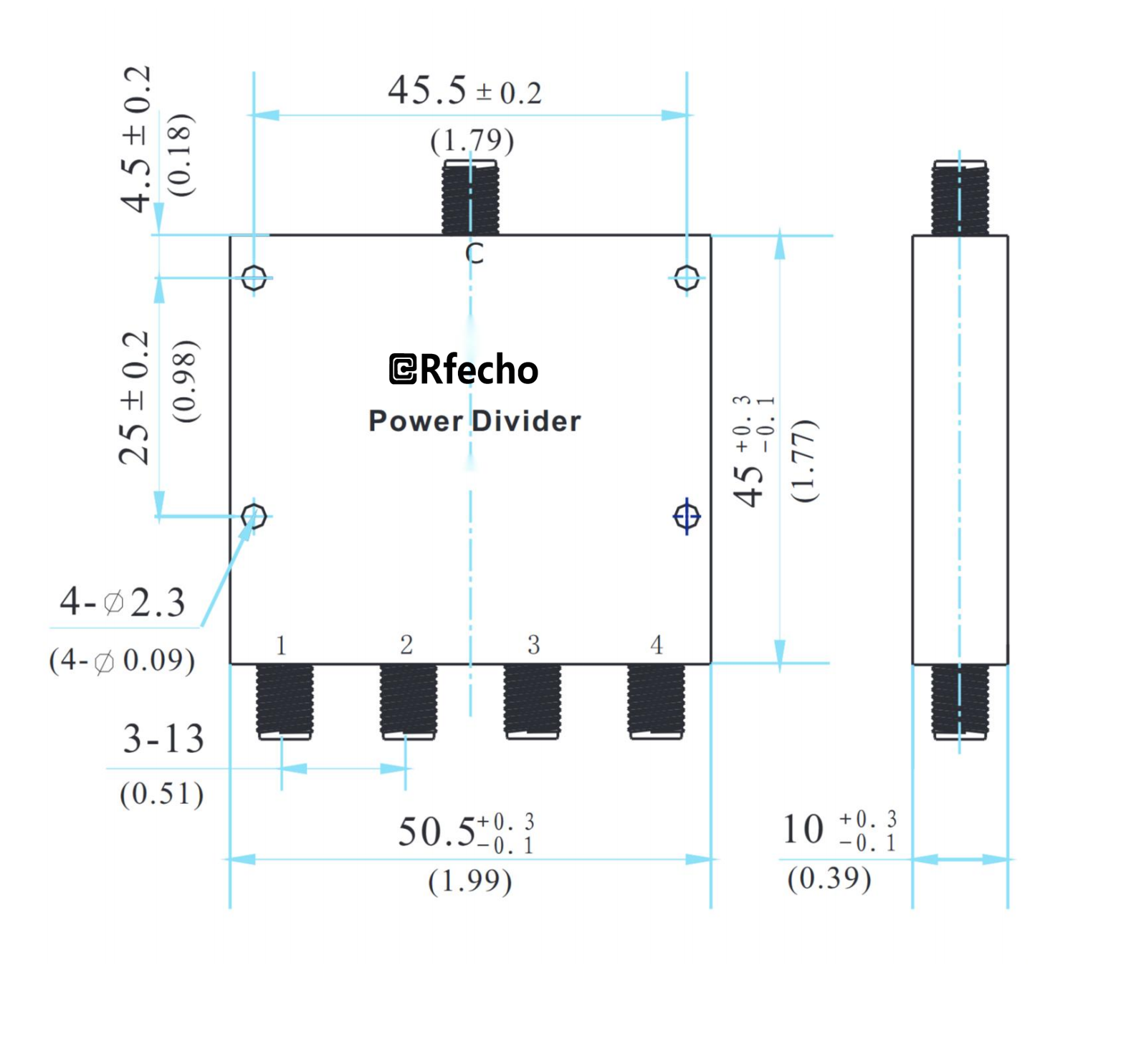

- Outline
- Reviews (0)
Description
The OPD-A0434 is a 4-way SMA connector 0° power divider from the A-series, designed for the 6-18GHz frequen-cy range. It features compact size, low insertion loss, lowVSWR, and high isolation. Utilizing mass production control methods, this series ensures high product quality andconsistency, meeting large-scale delivery requirements. It iswidely used in electronic warfare, radar, test and measurement, and satellite communication systems for signal distri-bution and combination.
OPD-A0434 | |
| 6-18GHz Insertion Loss 1.30dB SMA Connector 0° Power Divider | |
Property | Value |
| Frequency Range | 6-18GHz |
| Insertion Loss | 1.30dB |
| Isolation | 18dB |
| Power Handling | 30W |
| Connector | SMA-F |
| Amplitude Balance | ±0.50dB |
| Phase Balance | ±8° |
| Operating Temperature | -55~+85°C |
| Storage Temperature | -55~+100°C |
| Input VSWR | 1.6 |
| Output VSWR | 1.5 |
| Compliance | Compliant with GJB-1509-1992 standard |
Features | |
| SMA connector 0° power divider | |
| Wideband coverage (6-18GHz) | |
| Small size, low loss, low VSWR, high isolation | |
| High consistency due to mass production control | |
| Suitable for electronic warfare, radar, test and measurement, and satellite communication systems | |
| Used for 4-way microwave signal distribution and combination | |
| Standardized product, customizable upon request | |
Applications | |
| Electronic Countermeasures, Testing and Measurement | |
