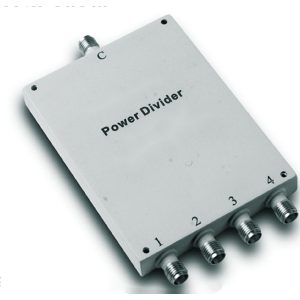

0.5-2GHz Insertion Loss 1.00dB SMA Connector 0° Power Divider
SMA Connectors
0° Power Divider
0.5-2GHz Frequency Coverage
Small Size
Low Loss
Low VSWR
High Isolation
High Consistency
Suitable for Batch Production
- Description
- Datasheet

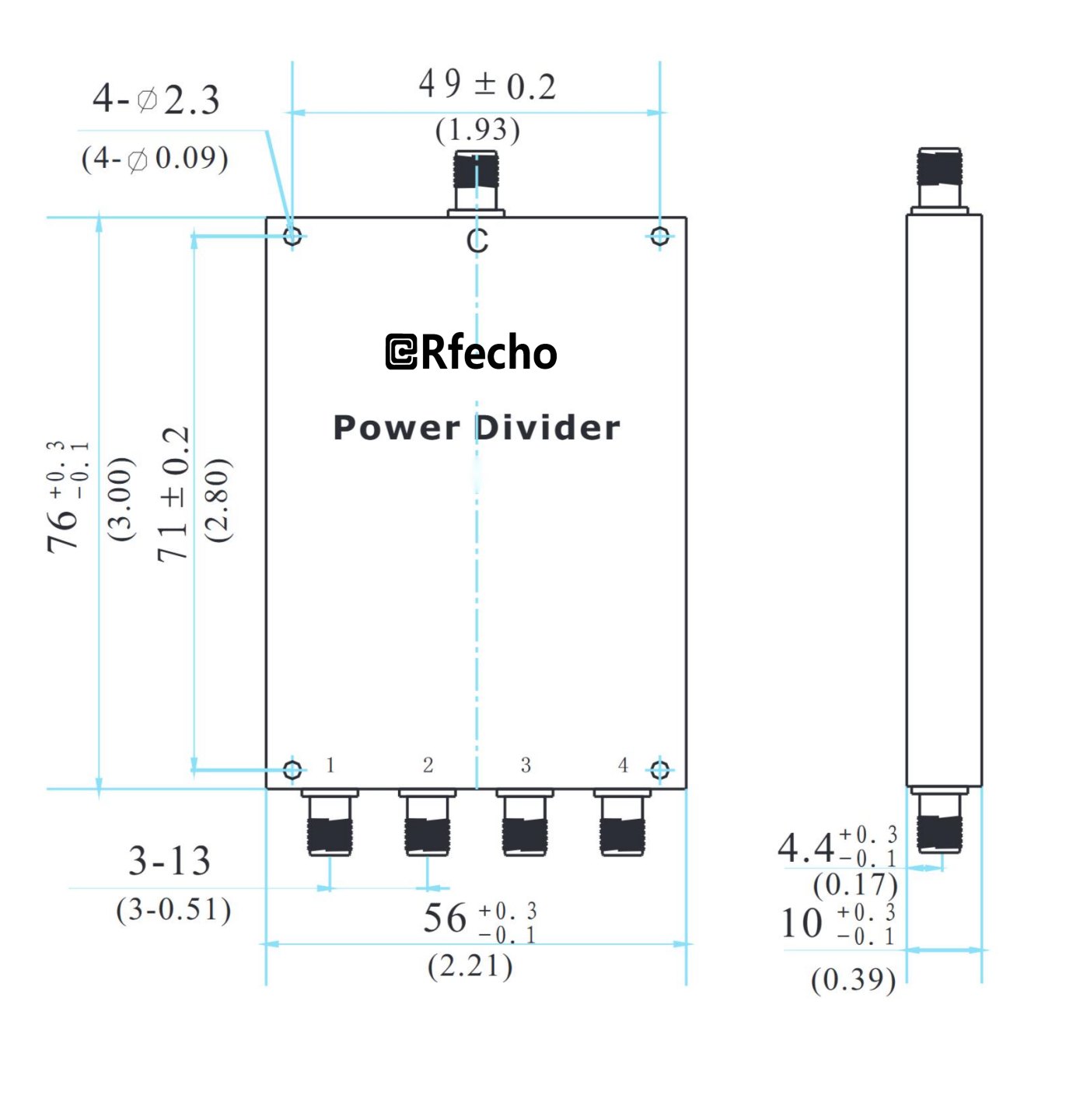

- Outline
- Reviews (0)
Description
The A-series power dividers are 0° power dividers with SMAconnectors. This specific model, OPD-A0420, covers the frequency range of 0.5-2GHz. Key features include compactsize, low loss, low VSWR, and high isolation. The series utilizes batch production control methods to ensure high prod-uct consistency, meeting large-volume supply requirements.OPD-A0420 is primarily used in electronic warfare, radar,navigation, test and measurement, and communication systems for the distribution and synthesis of 4-way microwavesignals. Customized designs, spectrum products, and standard-compliant versions are available upon request.
OPD-A0420 |
|
|
0.5-2GHz Insertion Loss 1.00dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
0.5-2GHz |
|
Insertion Loss |
1.00dB |
|
Isolation |
20dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.3dB |
|
Phase Balance |
±3° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.3 |
|
Output VSWR |
1.2 |
|
Compliance |
Compliant with GJB-1426-92 test requirements |
Features |
|
|
SMA Connectors |
|
|
0° Power Divider |
|
|
0.5-2GHz Frequency Coverage |
|
|
Small Size |
|
|
Low Loss |
|
|
Low VSWR |
|
|
High Isolation |
|
|
High Consistency |
|
|
Suitable for Batch Production |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
