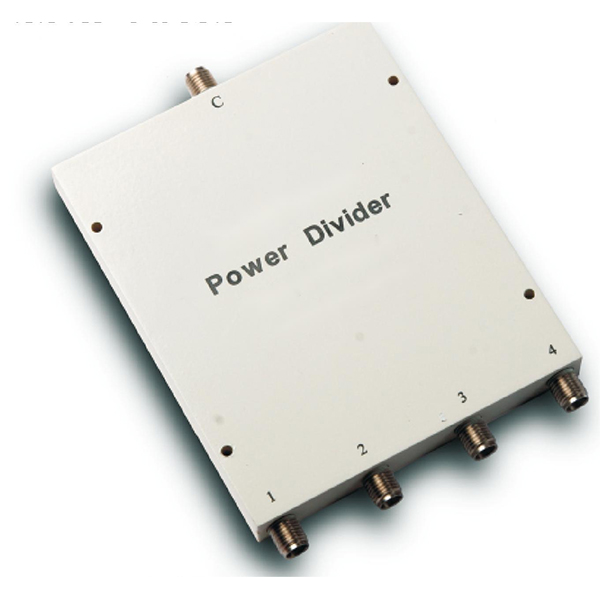

1-12.4GHz Insertion Loss 2.80dB SMA Connector 0° Power Divider
SMA connector 0° power divider
Full series covering 0.5-18GHz
Small size, low loss, low VSWR, high isolation
High consistency in batch production
Applications: Electronic countermeasures, testing, and measurement ultra-wideband systems
Used for 4-way microwave signal distribution and combination
- Description
- Datasheet

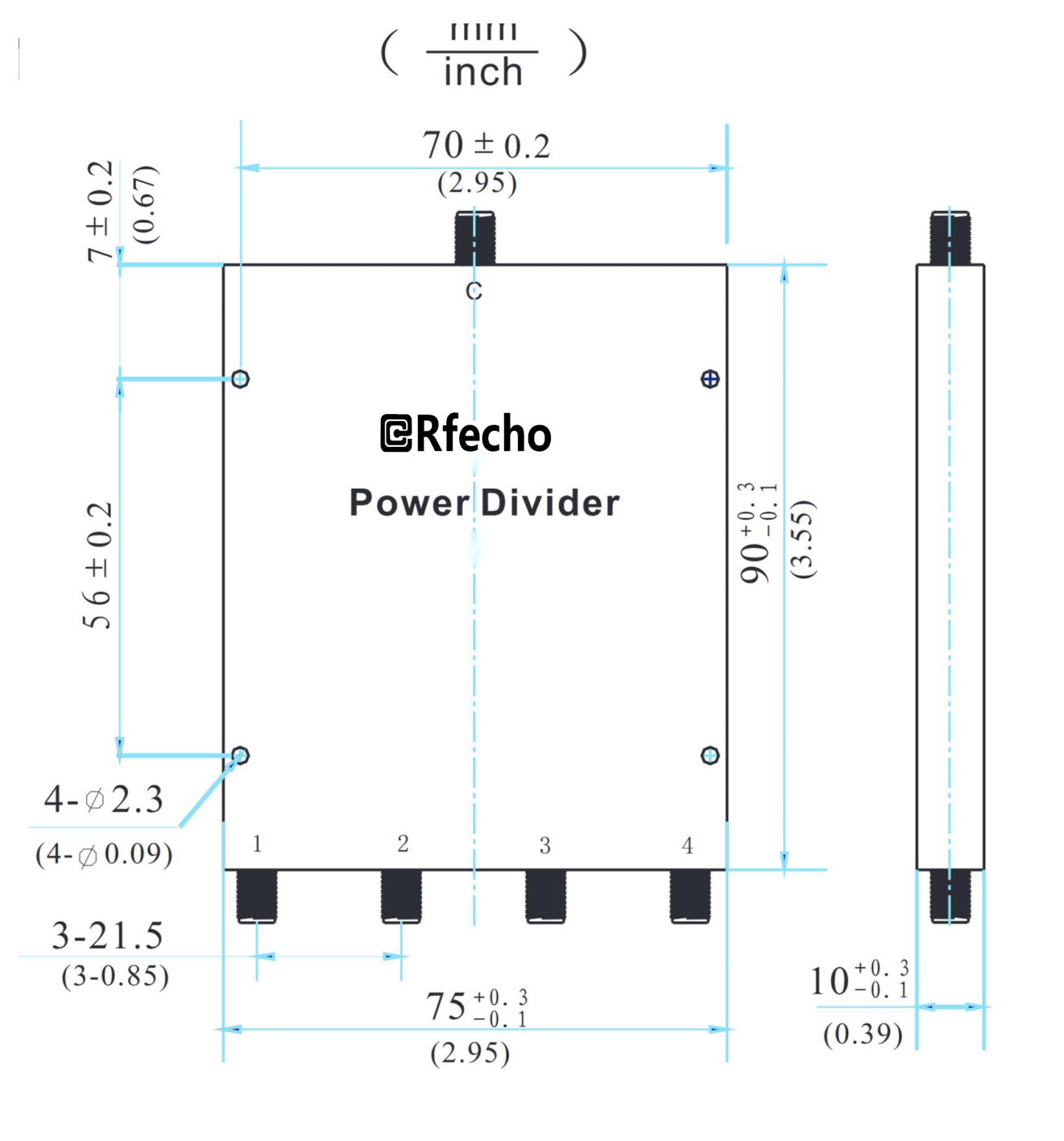

- Outline
- Reviews (0)
Description
The A-series power dividers are SMA connector 0° powerdividers, with the full series covering 0.5-18GHz. They feature small size, low loss, low VSWR, and high isolation. Thisseries adopts batch production control methods, ensuringhigh product consistency capable of meeting large-volumedelivery requirements. The OPD-A0413 is primarily used inelectronic countermeasures, testing, and measurement ultra-wideband systems for 4-way microwave signal distribu-tion and combination. This series consists of standardizedproducts which can be customized according to user needs.
OPD-A0413 | |
| 1-12.4GHz Insertion Loss 2.80dB SMA Connector 0° Power Divider | |
Property | Value |
| Frequency Range | 1-12.4GHz |
| Insertion Loss | 2.80dB |
| Isolation | 16dB |
| Power Handling | 30W |
| Connector | SMA-F |
| Amplitude Balance | ±0.50dB |
| Phase Balance | ±7° |
| Operating Temperature | -55~+85°C |
| Storage Temperature | -55~+100°C |
| Input VSWR | 1.6 |
| Output VSWR | 1.35 |
| Compliance | Complies with ‘GJB-1426-92’ testing items and requirements |
Features | |
| SMA connector 0° power divider | |
| Full series covering 0.5-18GHz | |
| Small size, low loss, low VSWR, high isolation | |
| High consistency in batch production | |
| Applications: Electronic countermeasures, testing, and measurement ultra-wideband systems | |
| Used for 4-way microwave signal distribution and combination | |
Applications | |
| Electronic Countermeasures, Testing and Measurement | |
