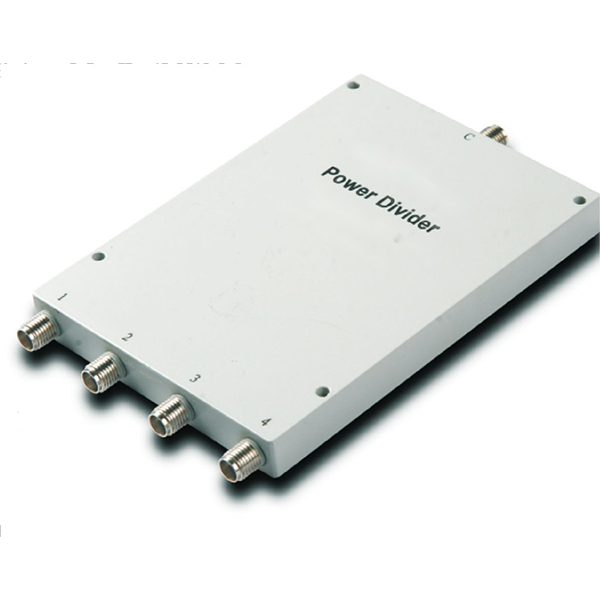

1-18GHz Insertion Loss 2.9dB SMA Connector 0° Power Divider
Frequency Range: 0.5-18GHz
SMA Connectors
Small size, low loss, low VSWR, high isolation
Batch production ensures high consistency
Suitable for electronic warfare, test, and measurement systems
Standardized product, customizable
- Description
- Datasheet

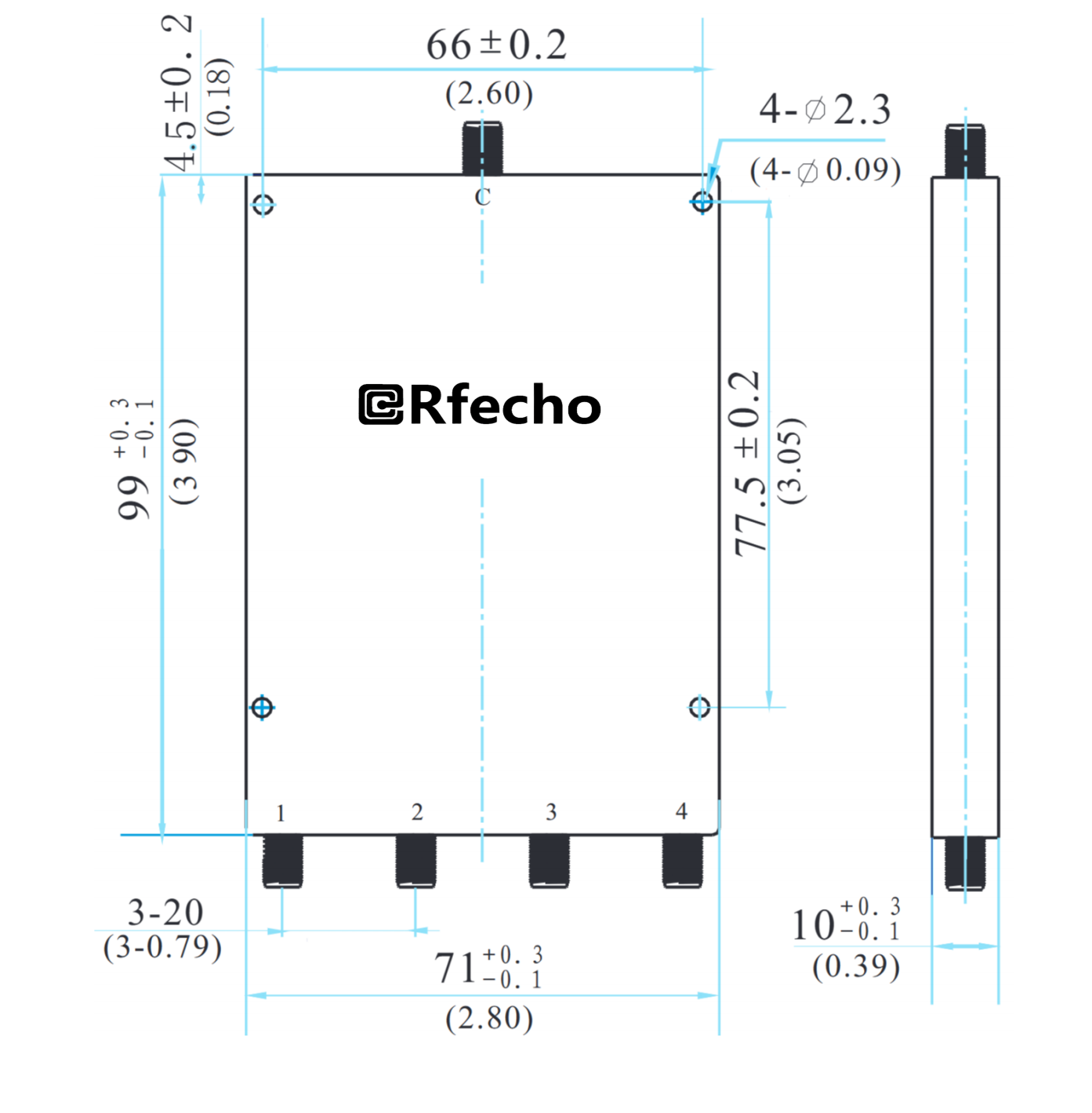

- Outline
- Reviews (0)
Description
The OPD-A series power dividers are 0° power dividerswith SMA connectors, covering the full 0.5-18GHz frequency range. They feature small size, low loss, low standingwave ratio (VSWR), and high isolation. This series employsbatch production control methods to ensure high productconsistency and meet large-scale supply requirements. TheOPD-A0411 is primarily used for signal distribution and synthesis in ultra-wideband systems such as electronic coun-termeasures, testing, and measurement.
OPD-A0411 | |
| 1-18GHz Insertion Loss 2.9dB SMA Connector 0° Power Divider | |
Property | Value |
| Frequency Range | 1-18GHz |
| Insertion Loss | 2.9dB |
| Isolation | 14dB |
| Power Handling | 30W |
| Connector | SMA-F |
| Amplitude Balance | ±0.8dB |
| Phase Balance | ±10° |
| Operating Temperature | -55~+85°C |
| Storage Temperature | -55~+100°C |
| Input VSWR | 1.8 |
| Output VSWR | 1.6 |
| Compliance | Meets GJB-1426-92 test requirements |
Features | |
| Frequency Range: 0.5-18GHz | |
| SMA Connectors | |
| Small size, low loss, low VSWR, high isolation | |
| Batch production ensures high consistency | |
| Suitable for electronic warfare, test, and measurement systems | |
| Standardized product, customizable | |
Applications | |
| Electronic Countermeasures, Testing and Measurement | |
