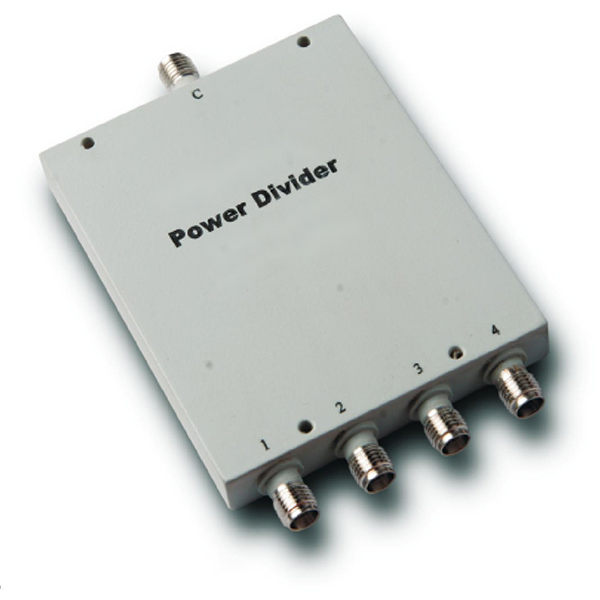

1-8GHz Insertion Loss 2.20dB SMA Connector 0° Power Divider
SMA connector 0° power divider
Frequency Range: 1-8GHz
Small size, low loss, low VSWR, high isolation
High product consistency with mass production control
4-way microwave signal distribution and combination
Applications: Electronic countermeasures, testing, and measurement
- Description
- Datasheet

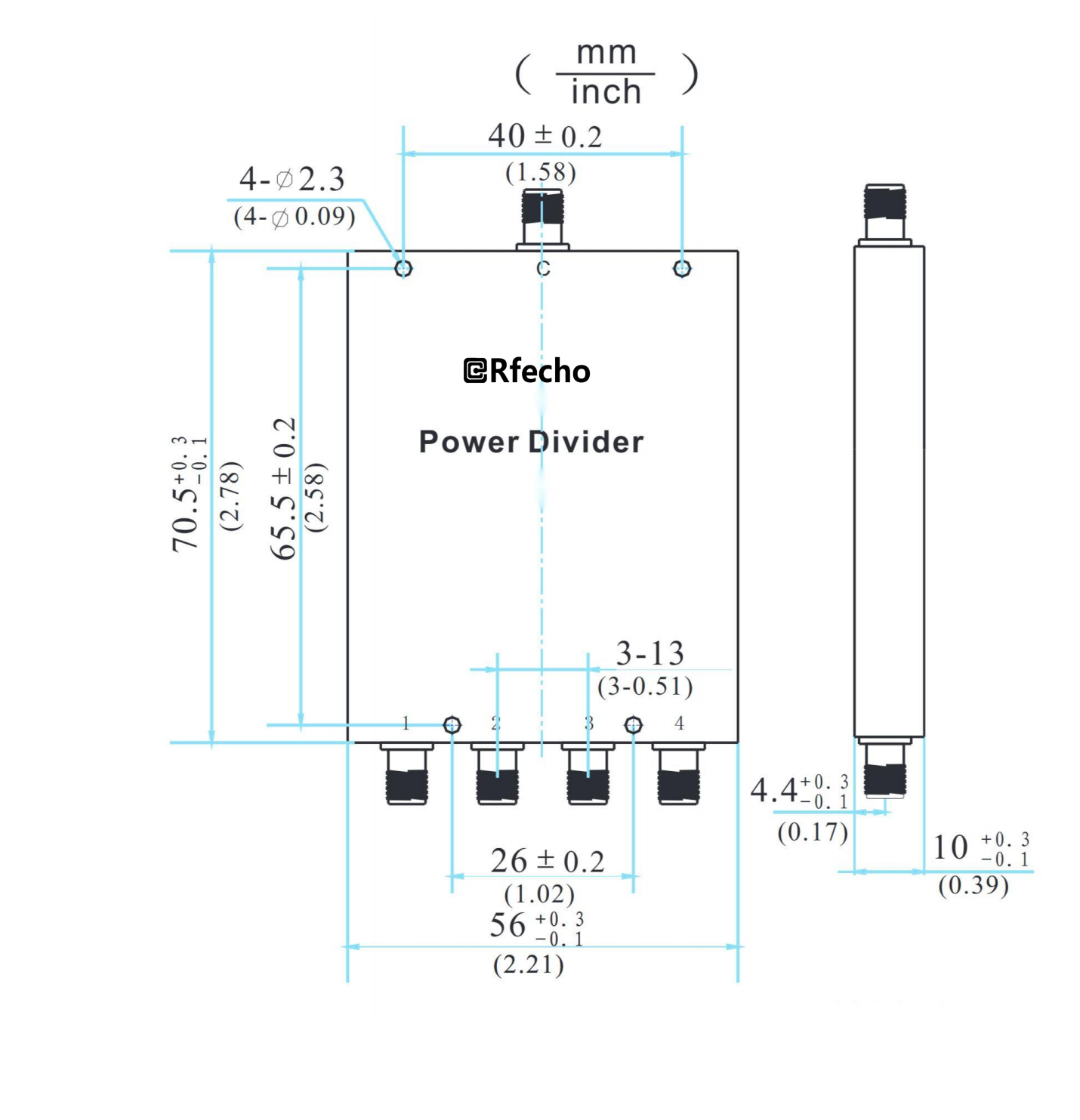

- Outline
- Reviews (0)
Description
The A-series power dividers are 0° power dividers withSMA connectors. This specific model, OPD-A0415, coversthe 1-8GHz frequency range, featuring small size, low loss,low standing wave (VSWR), and high isolation. The series adopts mass production control methods, ensuring highproduct consistency to meet large-volume supply requirements. OPD-A0415 is primarily used in ultra-wideband sys-tems such as electronic warfare, testing, and measurementfor the distribution and synthesis of 4-way microwave signals. This series consists of standardized products that canbe customized according to user needs.
OPD-A0415 | |
| 1-8GHz Insertion Loss 2.20dB SMA Connector 0° Power Divider | |
Property | Value |
| Frequency Range | 1-8GHz |
| Insertion Loss | 2.20dB |
| Isolation | 15dB |
| Power Handling | 30W |
| Connector | SMA-F |
| Amplitude Balance | ±0.40dB |
| Phase Balance | ±8° |
| Operating Temperature | -55~+85°C |
| Storage Temperature | -55~+100°C |
| Input VSWR | 1.5 |
| Output VSWR | 1.4 |
| Compliance | Complies with GJB-1426-92 test requirements |
Features | |
| SMA connector 0° power divider | |
| Frequency Range: 1-8GHz | |
| Small size, low loss, low VSWR, high isolation | |
| High product consistency with mass production control | |
| 4-way microwave signal distribution and combination | |
| Applications: Electronic countermeasures, testing, and measurement | |
Applications | |
| Electronic Countermeasures, Testing and Measurement | |
