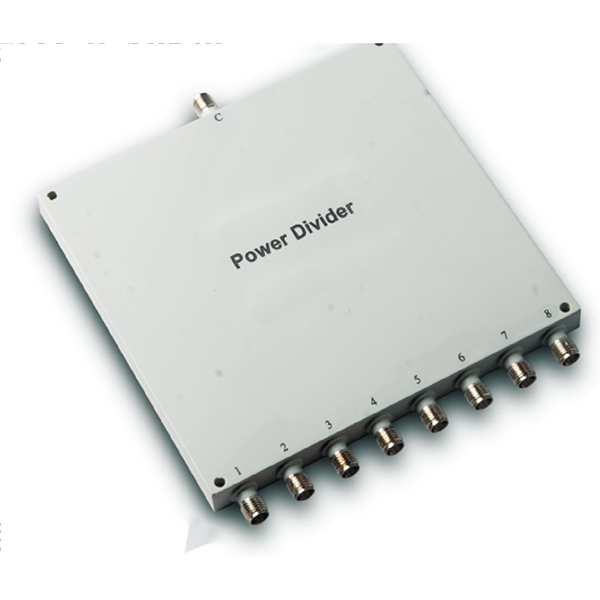

0.5-2GHz Insertion Loss 1.50dB SMA Connector 0° Power Divider
Frequency Range: 0.5-2GHz
8-Way Power Division
Insertion Loss: d 1.50dB
Isolation: e 20dB
VSWR (Input/Output): 1.40 / 1.30
Amplitude Balance: ±0.40dB
Phase Balance: ±4°
Small size, low loss, high consistency
SMA-Female Connectors
Meets GJB-1426-92 standard
- Description
- Datasheet

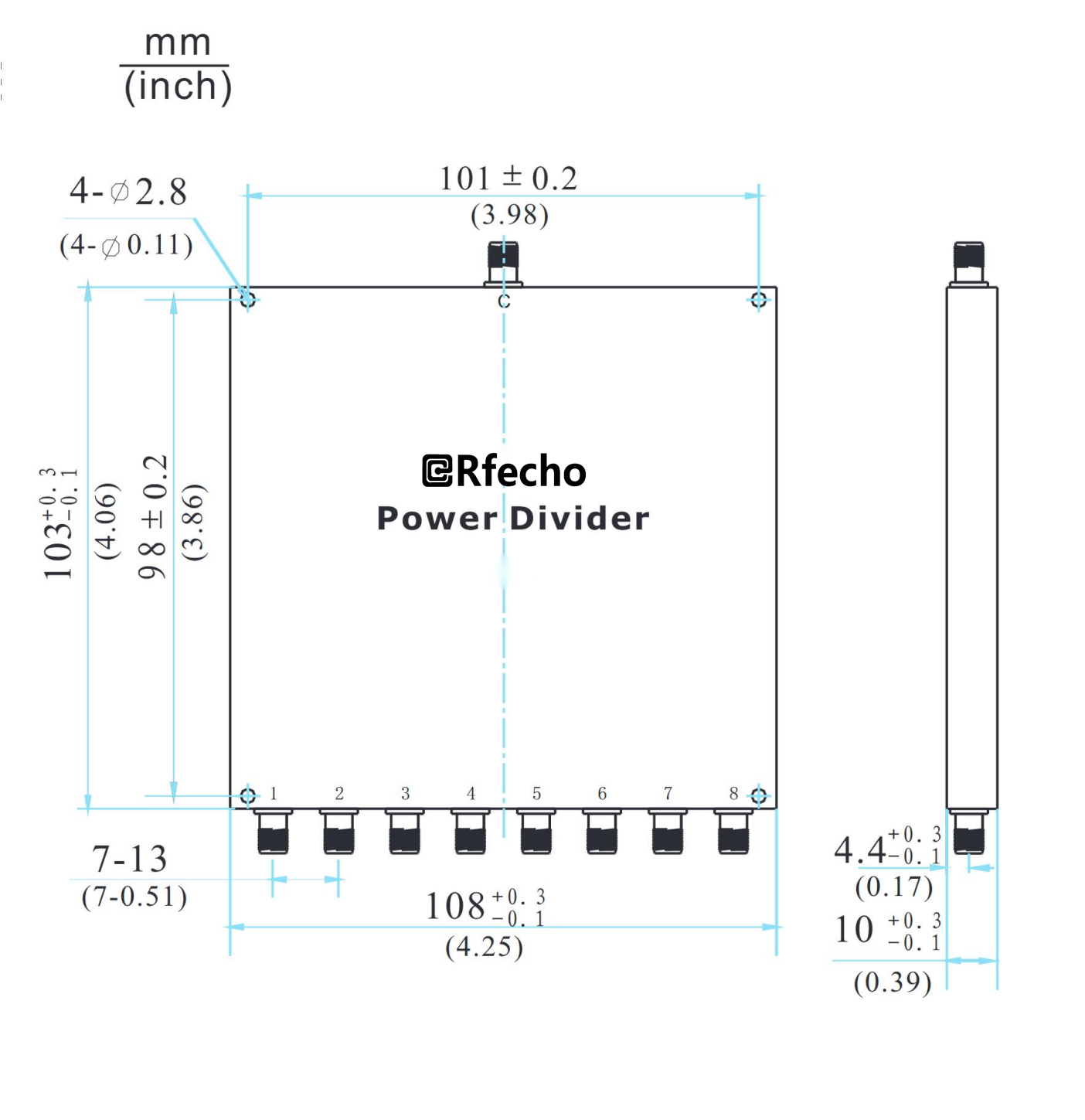

- Outline
- Reviews (0)
Description
The OPD-A0820 is a specialized 8-way 0° power divider fromthe A-series, designed for the 0.5-2GHz frequency band.It is widely used in electronic warfare, radar, navigation,test and measurement, and communication systems for microwave signal distribution and combination. The device fea-tures compact dimensions, low insertion loss, low VSWR,and high isolation. Utilizing batch production control, it offershigh product consistency suitable for large-volume requirements. Custom designs are available upon request.
OPD-A0820 |
|
|
0.5-2GHz Insertion Loss 1.50dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
0.5-2GHz |
|
Insertion Loss |
1.50dB |
|
Isolation |
20dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.40dB |
|
Phase Balance |
±4° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.4 |
|
Output VSWR |
1.3 |
|
Compliance |
Test Standard: GJB-1426-92 |
Features |
|
|
Frequency Range: 0.5-2GHz |
|
|
8-Way Power Division |
|
|
Insertion Loss: d 1.50dB |
|
|
Isolation: e 20dB |
|
|
VSWR (Input/Output): 1.40 / 1.30 |
|
|
Amplitude Balance: ±0.40dB |
|
|
Phase Balance: ±4° |
|
|
Small size, low loss, high consistency |
|
|
SMA-Female Connectors |
|
|
Meets GJB-1426-92 standard |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
