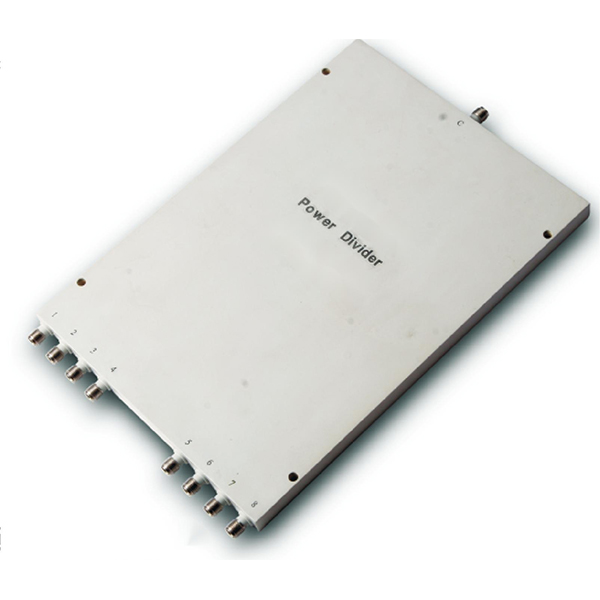

0.5-6GHz Insertion Loss 3.00dB SMA Connector 0° Power Divider
Frequency Range: 0.5-6GHz
8-Way Power Divider
SMA Connectors
Low Insertion Loss: 3.00dB
High Isolation: 16dB
Small Size
Low VSWR
High Consistency Batch Production
- Description
- Datasheet

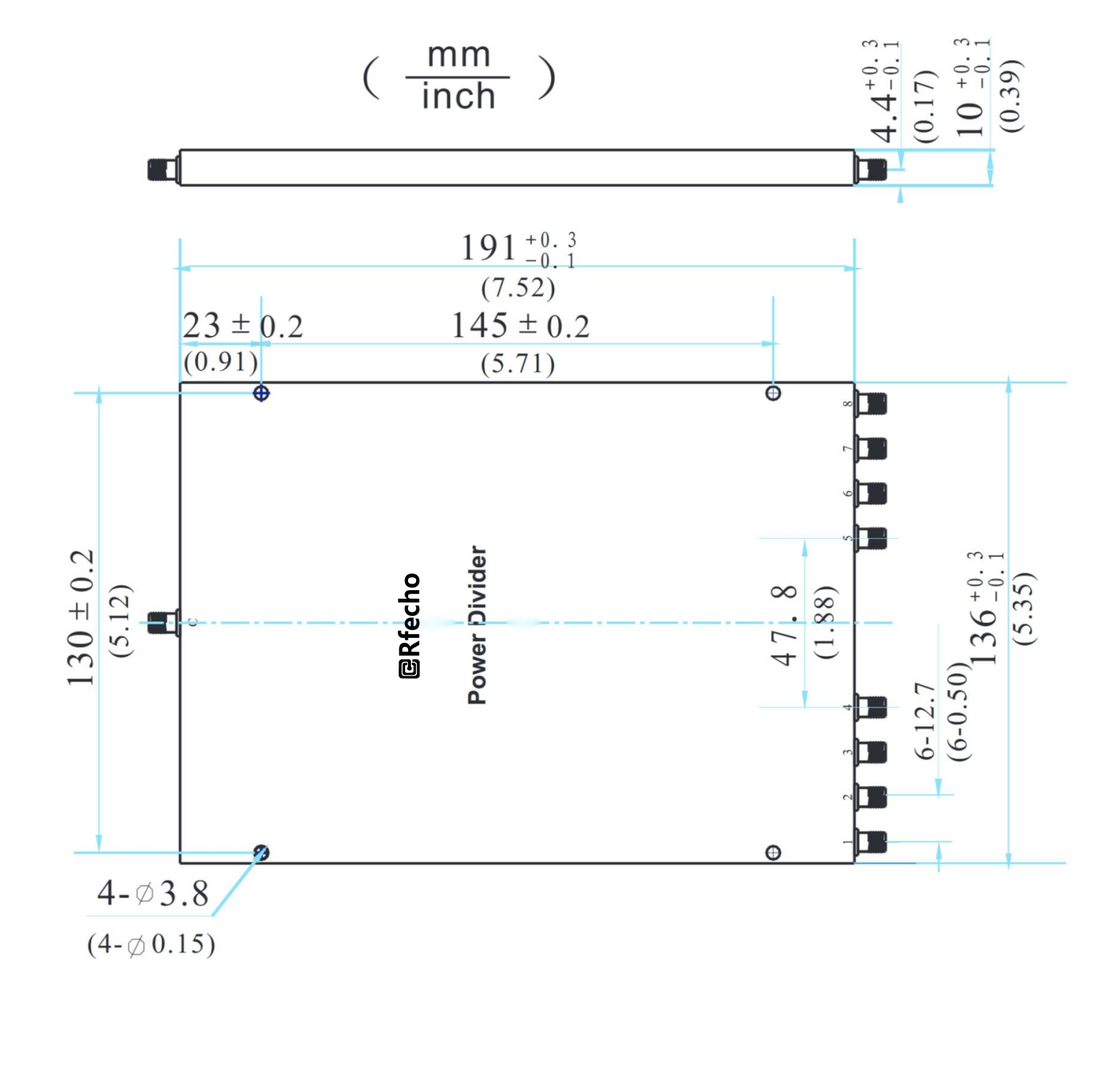

- Outline
- Reviews (0)
Description
The A-series power dividers are SMA connector 0° powerdividers, with the full series covering 0.5-18GHz. They feature small size, low loss, low VSWR, and high isolation. Thisseries employs batch production control methods, ensuringhigh product consistency and meeting large-volume deliveryrequirements. The OPD-A0814 is primarily used in electronic warfare, test and measurement, and ultra-wideband sys-tems for the distribution and synthesis of 8-way microwavesignals.
OPD-A0814 |
|
|
0.5-6GHz Insertion Loss 3.00dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
0.5-6GHz |
|
Insertion Loss |
3.00dB |
|
Isolation |
16dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.30dB |
|
Phase Balance |
±8° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.6 |
|
Output VSWR |
1.5 |
|
Compliance |
Meets ‘GJB-1426-92’ testing requirements |
Features |
|
|
Frequency Range: 0.5-6GHz |
|
|
8-Way Power Divider |
|
|
SMA Connectors |
|
|
Low Insertion Loss: 3.00dB |
|
|
High Isolation: 16dB |
|
|
Small Size |
|
|
Low VSWR |
|
|
High Consistency Batch Production |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
