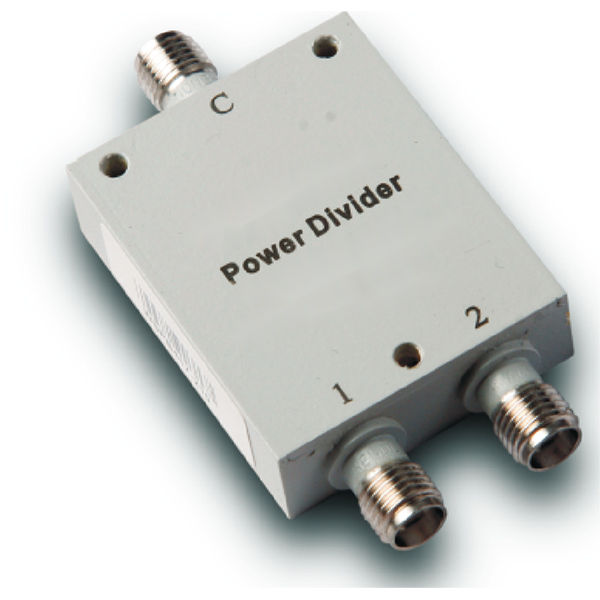

0.8-2.5GHz Insertion Loss 0.40dB SMA Connector 0° Power Divider
SMA connector 0° power divider
Frequency coverage: 0.5-18GHz (Series), 0.8-2.5GHz (Specific Model)
Small size
Low insertion loss
Low VSWR
High isolation
Batch production control for high consistency
Suitable for large-volume supply
- Description
- Datasheet

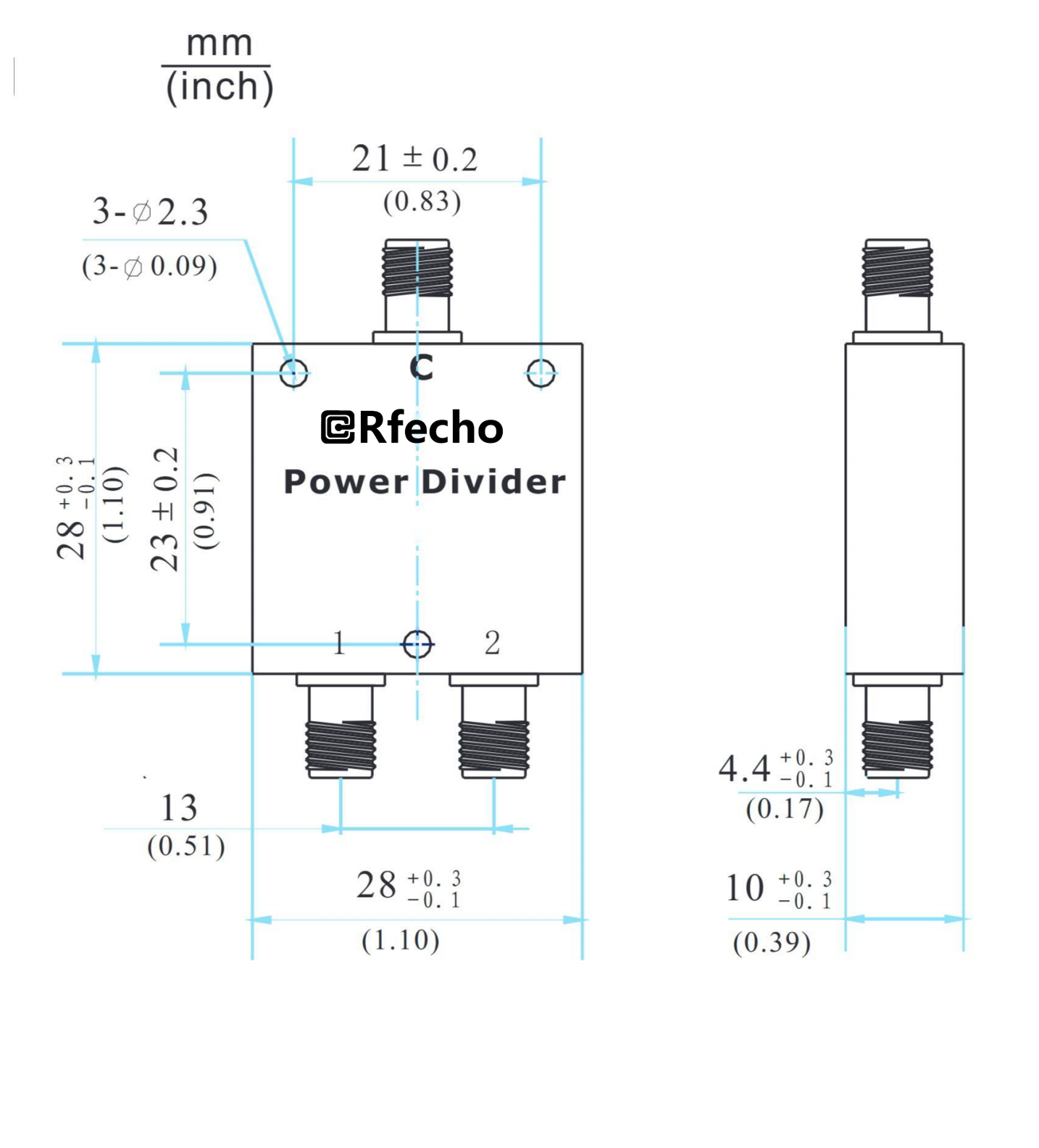

- Outline
- Reviews (0)
Description
Series A power dividers are SMA connector 0° power dividers, covering 0.5-18GHz. They feature small size, low loss,low VSWR, and high isolation. The series utilizes batch production control methods, ensuring high product consistencyto meet large-volume supply requirements. The OPD-A0221is mainly used in communication, electronic warfare, radar,navigation, test and measurement systems for the distribution and combination of 2-way microwave signals. This is astandardized product, but custom designs are available uponrequest.
OPD-A0221 |
|
|
0.8-2.5GHz Insertion Loss 0.40dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
0.8-2.5GHz |
|
Insertion Loss |
0.40dB |
|
Isolation |
20dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.20dB |
|
Phase Balance |
±2° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.3 |
|
Output VSWR |
1.2 |
|
Compliance |
Meets ‘GJB-1426-92’ test items and requirements |
Features |
|
|
SMA connector 0° power divider |
|
|
Frequency coverage: 0.5-18GHz (Series), 0.8-2.5GHz (Specific Model) |
|
|
Small size |
|
|
Low insertion loss |
|
|
Low VSWR |
|
|
High isolation |
|
|
Batch production control for high consistency |
|
|
Suitable for large-volume supply |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
