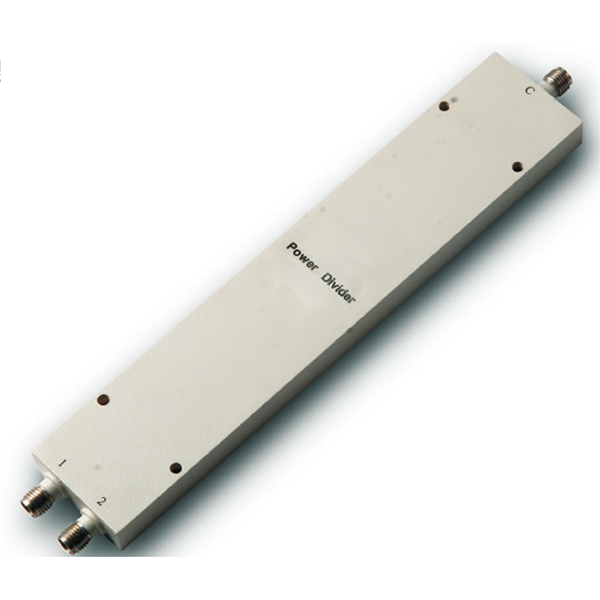

0.5-6GHz Insertion Loss 0.80dB SMA Connector 0° Power Divider
SMA connector 0° power divider
Full series coverage 0.5-18GHz (Model specific: 0.5-6GHz)
Small size, low insertion loss, low VSWR, high isolation
High consistency due to mass production control
Suitable for electronic countermeasures, test and measurement
Standardized product, customization available
- Description
- Datasheet

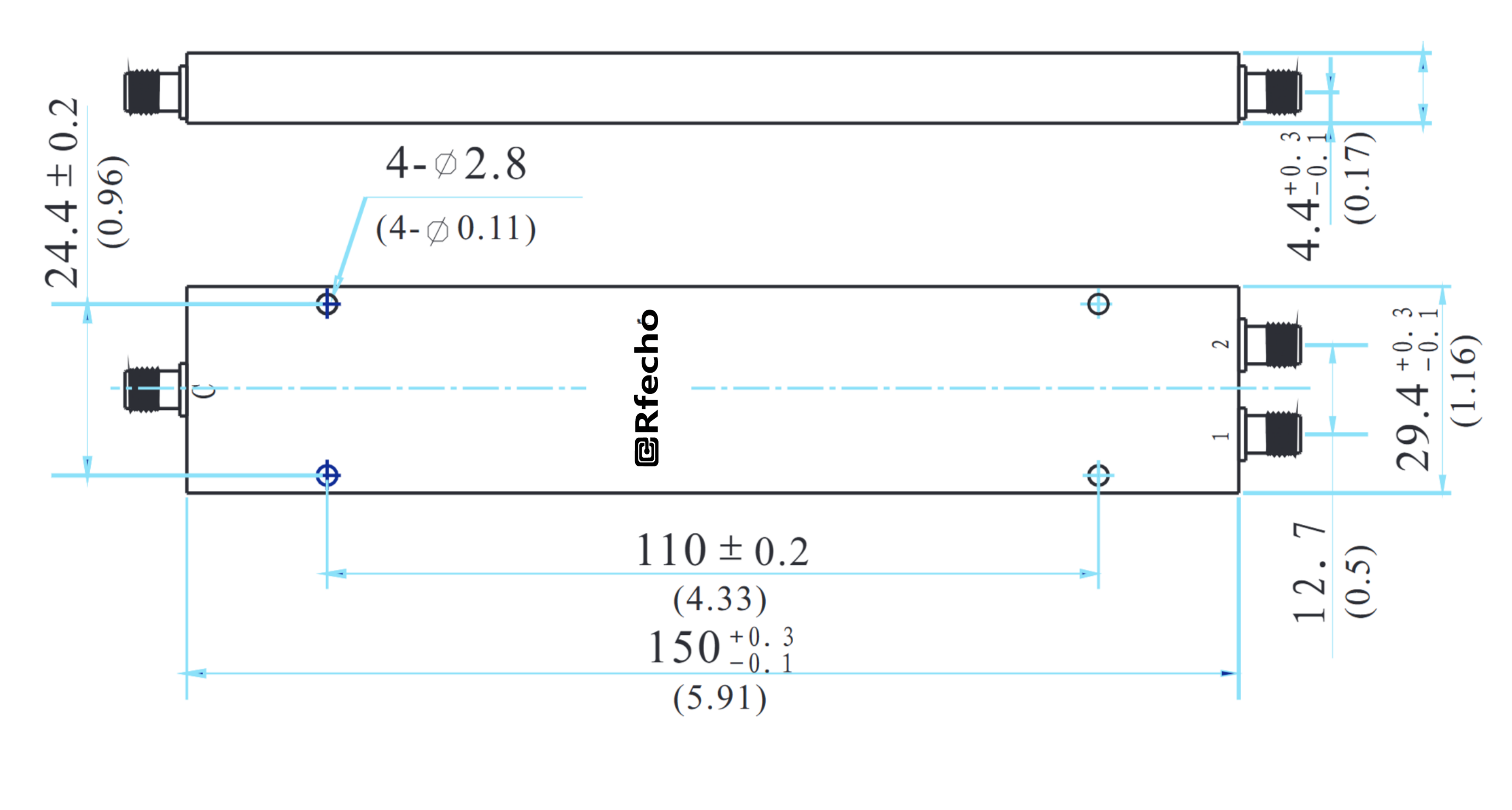

- Outline
- Reviews (0)
Description
The A series power dividers are SMA connector 0° power dividers, covering a full range of 0.5-18GHz. They feature smallsize, low loss, low standing wave, and high isolation. This series adopts mass production control methods, ensuring highproduct quality and consistency to meet large-volume delivery requirements. The OPD-A0214 is mainly used in ul-tra-wideband systems such as electronic countermeasures,testing, and measurement for the distribution and combination of 2-way microwave signals. This series consists of stan-dardized products, allowing for customization according touser needs.
OPD-A0214 | |
| 0.5-6GHz Insertion Loss 0.80dB SMA Connector 0° Power Divider | |
Property | Value |
| Frequency Range | 0.5-6GHz |
| Insertion Loss | 0.80dB |
| Isolation | 18dB |
| Power Handling | 30W |
| Connector | SMA-F |
| Amplitude Balance | ±0.20dB |
| Phase Balance | ±3° |
| Operating Temperature | -55~+85°C |
| Storage Temperature | -55~+100°C |
| Input VSWR | 1.4 |
| Output VSWR | 1.3 |
| Compliance | Meets “GJB-1426-92” test requirements |
Features | |
| SMA connector 0° power divider | |
| Full series coverage 0.5-18GHz (Model specific: 0.5-6GHz) | |
| Small size, low insertion loss, low VSWR, high isolation | |
| High consistency due to mass production control | |
| Suitable for electronic countermeasures, test and measurement | |
| Standardized product, customization available | |
Applications | |
| Electronic Countermeasures, Testing and Measurement | |
