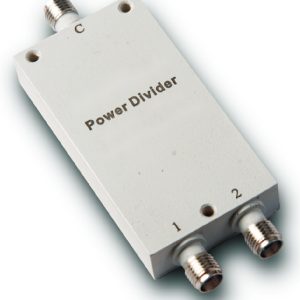

0.5-2GHz Insertion Loss 0.50dB SMA Connector 0° Power Divider
SMA connector 0° power divider
Frequency coverage: 0.5-18GHz (Series capability), Specific Model: 0.5-2GHz
Small size, low consumption
Low VSWR, High Isolation
Batch production control with consistent quality
Applications: Electronic countermeasures, Radar, Navigation, Test & Measurement, Communication systems
- Description
- Datasheet

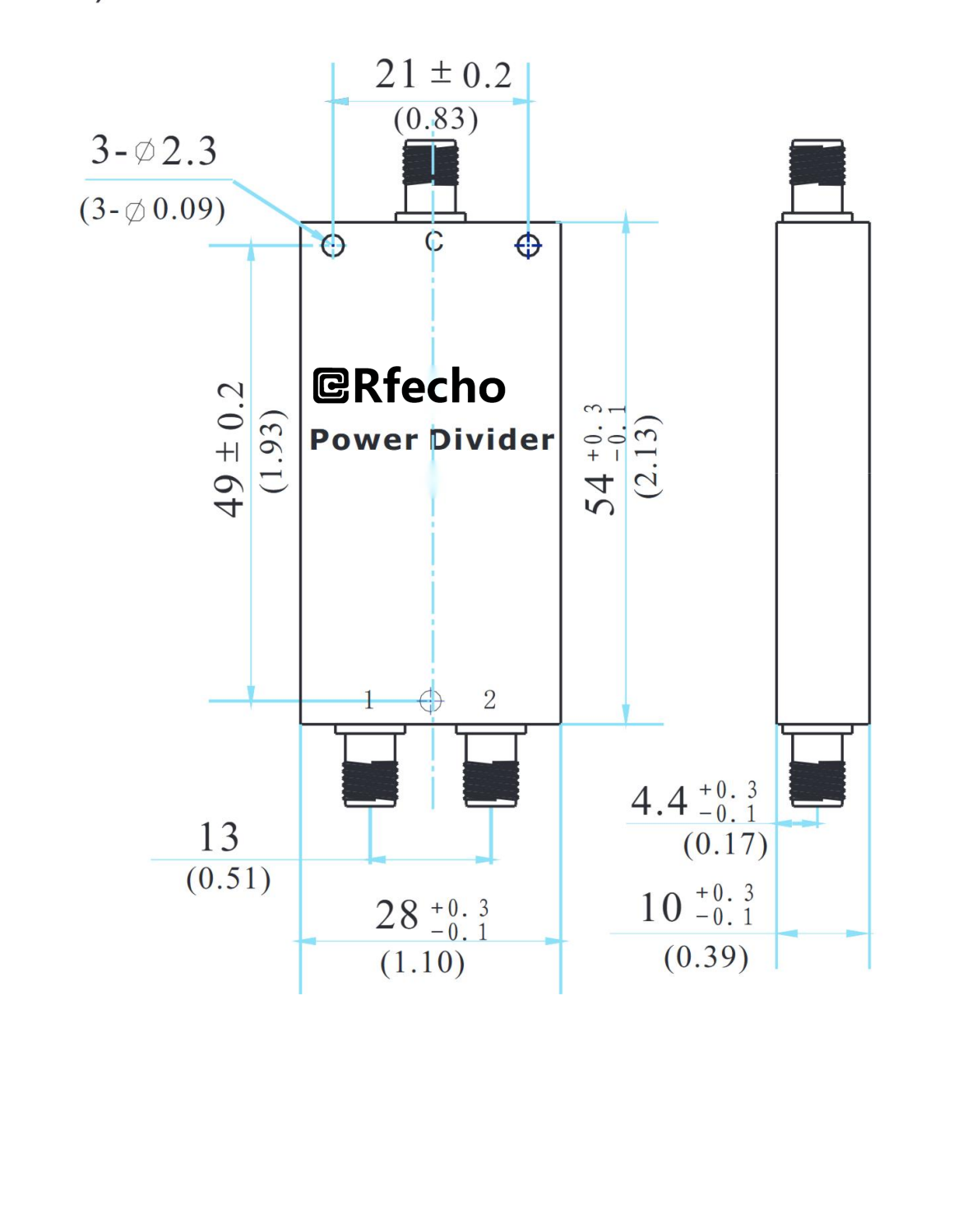

- Outline
- Reviews (0)
Description
The A-series power dividers are SMA connector 0° dividers. Features include small size, low consumption, lowVSWR, and high isolation. This series employs batch production control methods ensuring consistent product qualityand large volume supply capability. The OPD-A0220 is mainly used in electronic countermeasures, radar, navigation, testand measurement, and communication systems for 2-waymicrowave signal distribution and synthesis. This is a standardized product, but custom designs are available based onuser requirements.
OPD-A0220 | |
| 0.5-2GHz Insertion Loss 0.50dB SMA Connector 0° Power Divider | |
Property | Value |
| Frequency Range | 0.5-2GHz |
| Insertion Loss | 0.50dB |
| Isolation | 20dB |
| Power Handling | 30W |
| Connector | SMA-F |
| Amplitude Balance | ±0.20dB |
| Phase Balance | ±2° |
| Operating Temperature | -55~+85°C |
| Storage Temperature | -55~+100°C |
| Input VSWR | 1.25 |
| Output VSWR | 1.2 |
| Compliance | Meets ‘GJB-1426-92’ test requirements |
Features | |
| SMA connector 0° power divider | |
| Frequency coverage: 0.5-18GHz (Series capability), Specific Model: 0.5-2GHz | |
| Small size, low consumption | |
| Low VSWR, High Isolation | |
| Batch production control with consistent quality | |
| Applications: Electronic countermeasures, Radar, Navigation, Test & Measurement, Communication systems | |
Applications | |
| Electronic Countermeasures, Testing and Measurement | |
