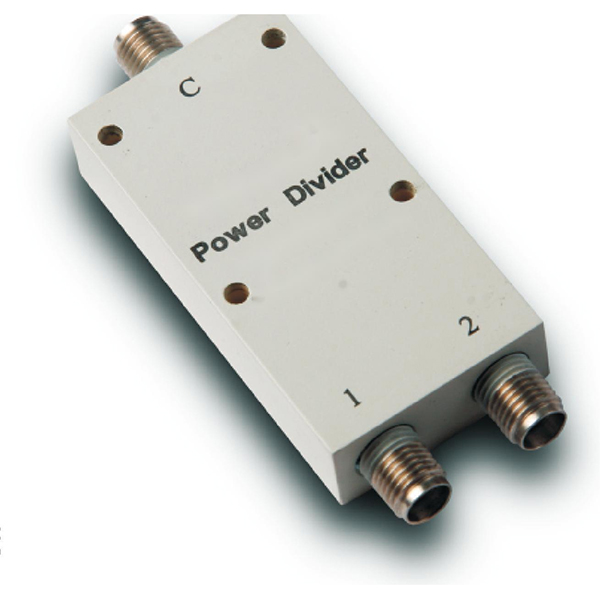

2-18GHz Insertion Loss 1.20dB SMA Connector 0° Power Divider
SMA connector 0° power divider
Wide frequency coverage: 0.5-18GHz (Series), 2-18GHz (Specific Model)
Small size, low loss, low VSWR, high isolation
Batch production control ensuring consistent quality
Suitable for electronic warfare, test and measurement ultra-wideband systems
2-way microwave signal distribution and synthesis
Customizable design available
- Description
- Datasheet

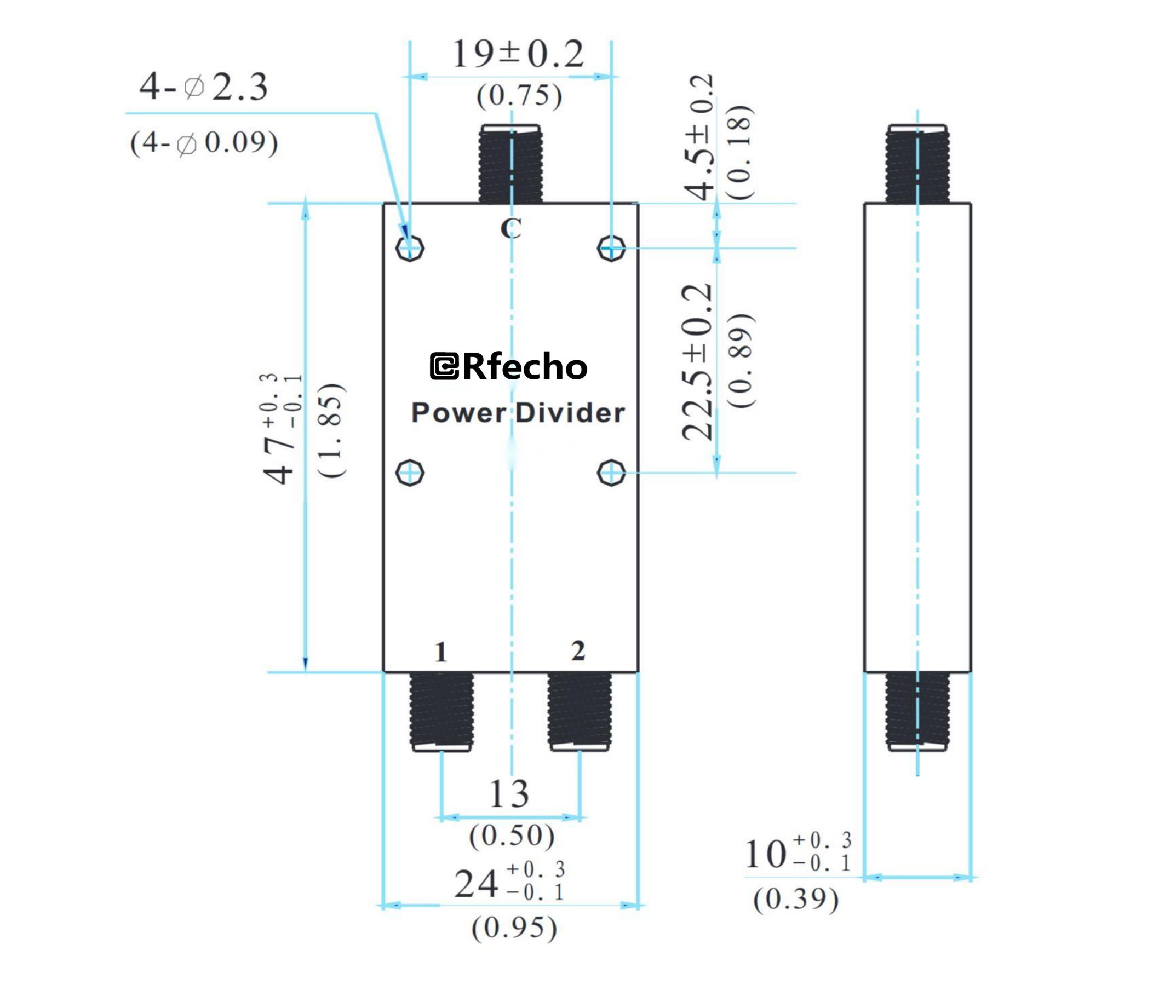

- Outline
- Reviews (0)
Description
The A-series power dividers are SMA connector 0° powerdividers, covering the full 0.5-18GHz range. Features includesmall size, low loss, low VSWR, and high isolation. This series utilizes batch production control methods, ensuring highproduct consistency to meet large-volume supply requirements. The OPD-A0212 is primarily used in ultra-widebandsystems such as electronic warfare, test, and measurementfor the distribution and synthesis of 2-way microwave signals.This is a standard product that can be customized accordingto user needs.
OPD-A0212 | |
| 2-18GHz Insertion Loss 1.20dB SMA Connector 0° Power Divider | |
Property | Value |
| Frequency Range | 2-18GHz |
| Insertion Loss | 1.20dB |
| Isolation | 16dB |
| Power Handling | 30W |
| Connector | SMA-F |
| Amplitude Balance | ±0.30dB |
| Phase Balance | ±5° |
| Operating Temperature | -55~+85°C |
| Storage Temperature | -55~+100°C |
| Input VSWR | 1.5 |
| Output VSWR | 1.5 |
| Compliance | Meets ‘GJB-1426-92’ test requirements |
Features | |
| SMA connector 0° power divider | |
| Wide frequency coverage: 0.5-18GHz (Series), 2-18GHz (Specific Model) | |
| Small size, low loss, low VSWR, high isolation | |
| Batch production control ensuring consistent quality | |
| Suitable for electronic warfare, test and measurement ultra-wideband systems | |
| 2-way microwave signal distribution and synthesis | |
| Customizable design available | |
Applications | |
| Electronic Countermeasures, Testing and Measurement | |
