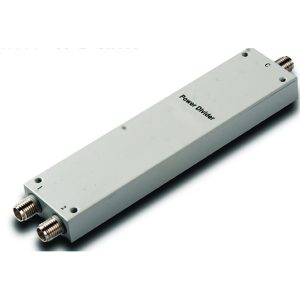

SMA connector 0° power divider
Covers full 0.5-18GHz range (Specifications 1-18GHz)
Small volume, low loss
Low VSWR, high isolation
Mass production consistency
Suitable for electronic countermeasures, testing and measurement

SKU: OPD-A0211 Category: 2 Way RF Power Divider
Add to Wishlist

Description

The OPD-A series power dividers are SMA connector 0°power dividers covering the 0.5-18GHz frequency range.They feature small size, low loss, low VSWR, and high isolation. The series utilizes batch production control meth-ods ensuring consistent product quality capable of meetinglarge-volume delivery requirements. The OPD-A0211 is primarily used in electronic countermeasures, testing and mea-surement, and ultra-wideband systems for the distributionand synthesis of 2-way microwave signals.

OPD-A0211

1-18GHz Insertion Loss 1.6dB SMA Connector 0° Power Divider


Property

Value

Frequency Range

1-18GHz

Insertion Loss

1.6dB

Isolation

16dB

Power Handling

30W

Connector

SMA-F

Amplitude Balance

±0.5dB

Phase Balance

±10°

Operating Temperature

-55~+85°C

Storage Temperature

-55~+100°C

Input VSWR

1.6

Output VSWR

1.6

Compliance

Compliant with GJB-1426-92 standards

Features

SMA connector 0° power divider

Covers full 0.5-18GHz range (Specifications 1-18GHz)

Small volume, low loss

Low VSWR, high isolation

Mass production consistency

Suitable for electronic countermeasures, testing and measurement

Applications

Electronic Countermeasures, Testing and Measurement

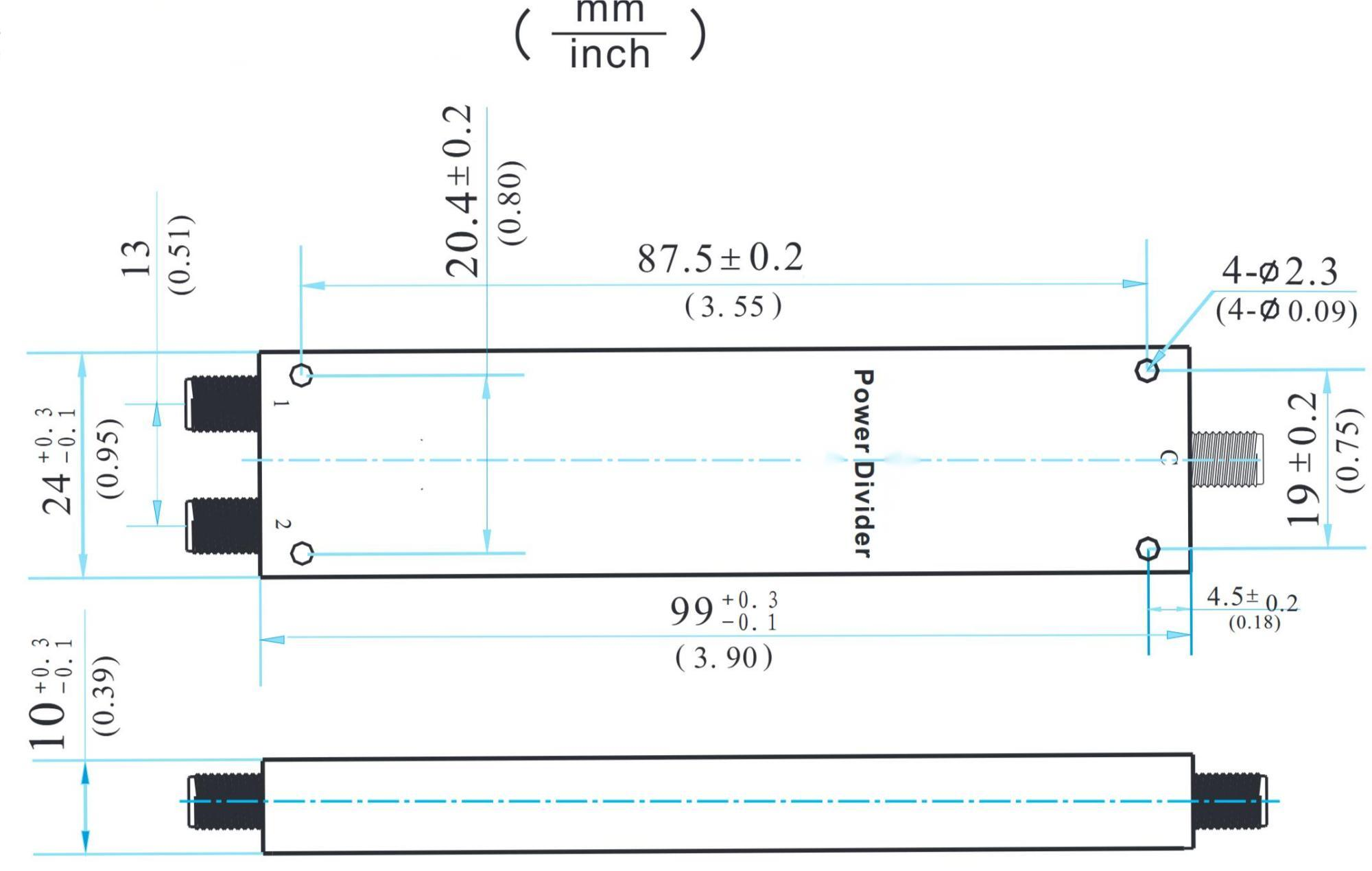

1-18GHz Insertion Loss 1.6dB SMA Connector 0° Power Divider-Outline
