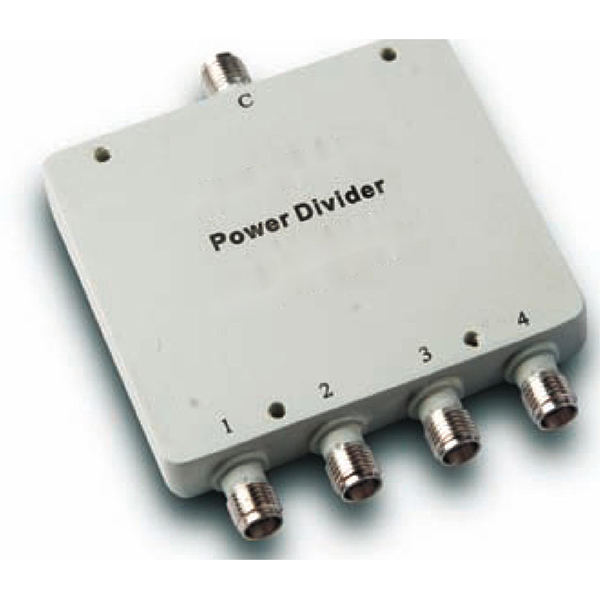

0.8-2.5GHz Insertion Loss 0.7dB SMA Connector 0° Power Divider
SMA Connectors, 0° Power Divider
Frequency Coverage: 0.8-2.5GHz
Small size, low loss, low VSWR, high isolation
High mass production consistency
Standardized product with customization available
- Description
- Datasheet

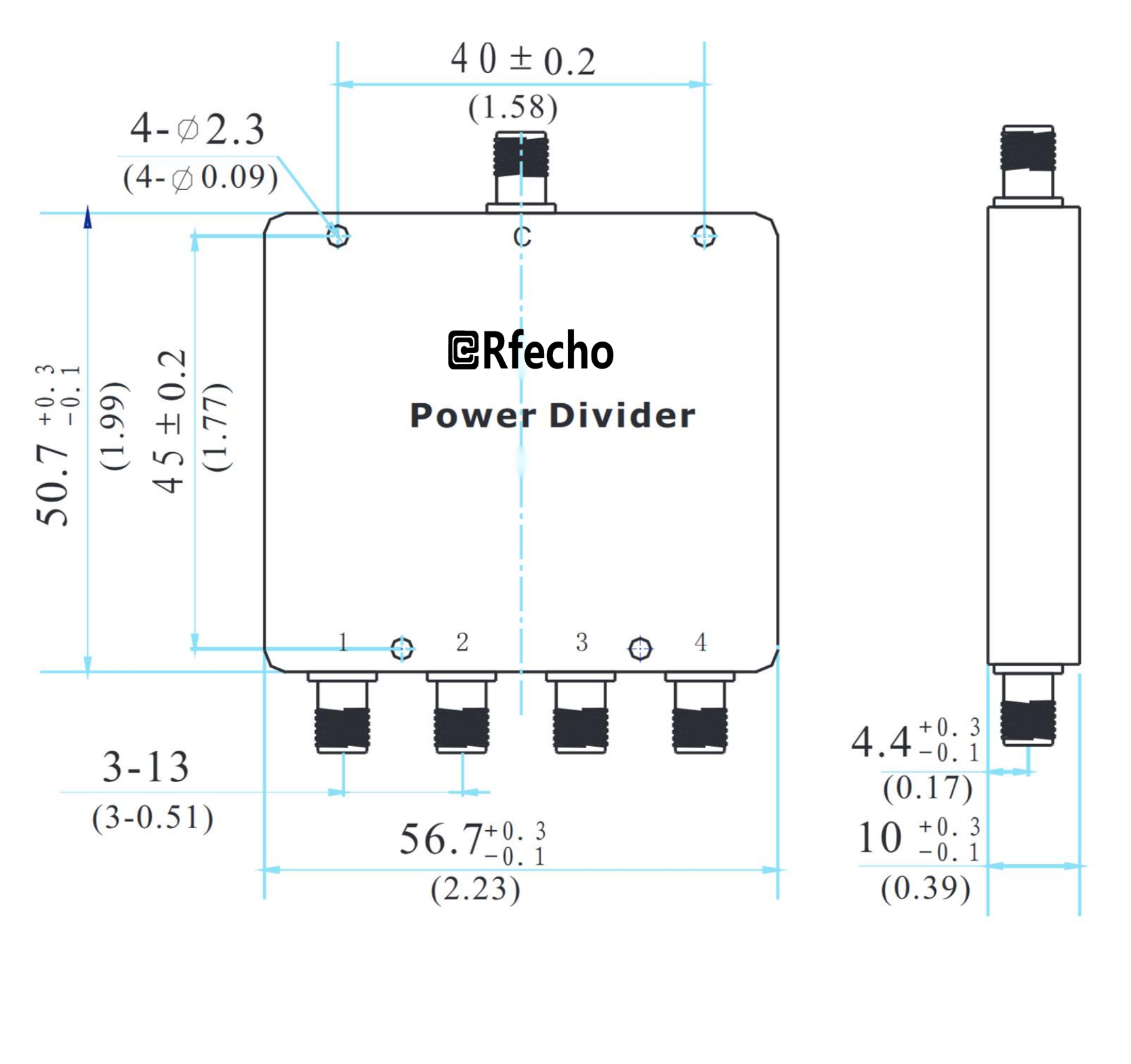

- Outline
- Reviews (0)
Description
The A-series power dividers are SMA connector 0° power dividers covering the 0.5-18GHz range. They featuresmall size, low loss, low VSWR, and high isolation. Utilizing mass production control methods, the series offershigh quality consistency suitable for large-volume supply. TheOPD-A0421 is primarily used in communications, electronicwarfare, radar, navigation, and test and measurement systems for the distribution and synthesis of 4-way microwavesignals.
OPD-A0421 |
|
|
0.8-2.5GHz Insertion Loss 0.7dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
0.8-2.5GHz |
|
Insertion Loss |
0.7dB |
|
Isolation |
20dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.30dB |
|
Phase Balance |
±6° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.3 |
|
Output VSWR |
1.2 |
|
Compliance |
Compliant with GJB-1426-92 test requirements |
Features |
|
|
SMA Connectors, 0° Power Divider |
|
|
Frequency Coverage: 0.8-2.5GHz |
|
|
Small size, low loss, low VSWR, high isolation |
|
|
High mass production consistency |
|
|
Standardized product with customization available |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
