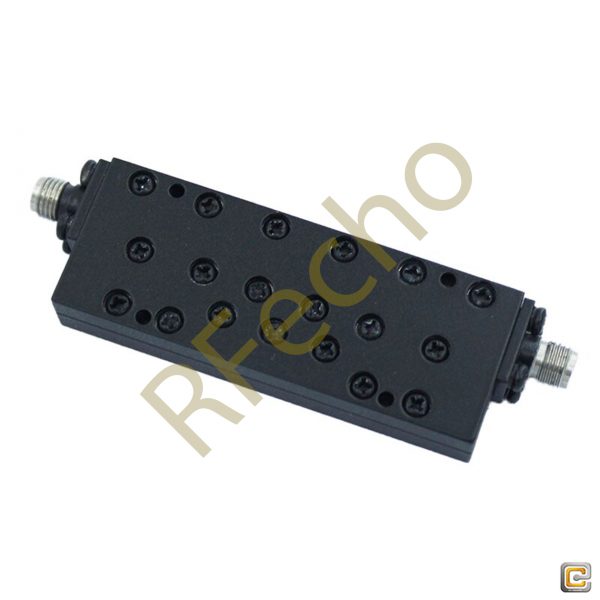

1GHz to 10GHz High Pass Microwave Filter rejection ≥ 50dB @ DC~0.78GHz High Pass Passive RF Filter with SMA Female Connector

1GHz to 10GHz High Pass Microwave Filter model OHP: 1000-10000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This 1GHz to 10GHz High Pass Microwave Filter manufactured with a passband frequency from 1GHz to 10GHz and a Cut-off frequency 1GHz. Our High Pass Passive RF Filter provides a nominal insertion loss of ≤1.5dB @ 1GHz to 1.1GHz | ≤1.0dB @ 1.1GHz to 10GHz across its passband and a typical rejection of ≥50dB @ DC to 0.78GHz. Since the high end cutoff frequency of 1GHz to 10GHz High Pass Microwave Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This High Pass Passive RF Filter has Passband VSWR of ≤1.5:1 and power handling of ≤15W. 1GHz to 10GHz High Pass Microwave Filter is manufactured with SMA Female Connector and Net weight of 0.04Kg. 1GHz to 10GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 1GHz to 10GHz High Pass Microwave Filter is ready for shipping worldwide after purchase. Additional specs of this High Pass Passive RF Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OHP-1000-10000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

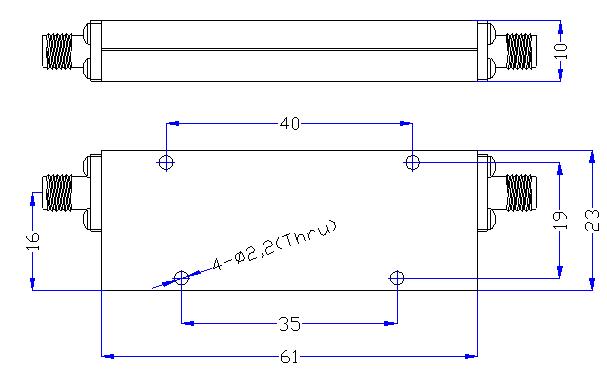

High Pass Cavity Filter – OHP-1000-10000:

  • Cut Off Frequency: 1GHz,
  • Pass Band Frequency:  1-10GHz,
  • Pass Band Insertion Loss: 1.5dB,
  • Pass Band VSWR: ≤1.5:1,
  • Rejection: ≥50 dB @ DC – 0.78 GHz.

Additional information

Weight 0.04 kg
Min. Pass Band Frequency (GHz)

1

Max. Pass Band Frequency (GHz)

10

Connection Type

SMA-Female

Power Handling (W)

≤15

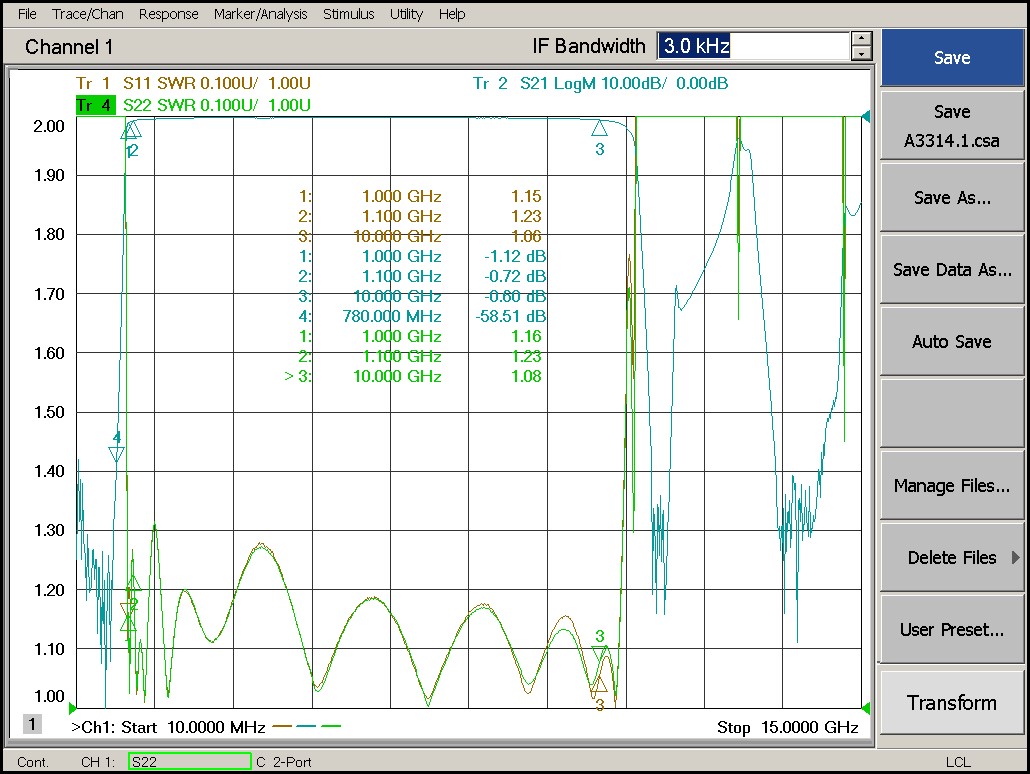

Insertion Loss

≤1.5dB @ 1.0 ~ 1.1GHz ≤1.0dB @ 1.1 ~ 10GHz

VSWR

≤1.5:1

Rejection

≥50 dB @ DC – 0.78 GHz

Impedance (Ω)

50

Surface Finish

Guided Oxygen or Black Paint
