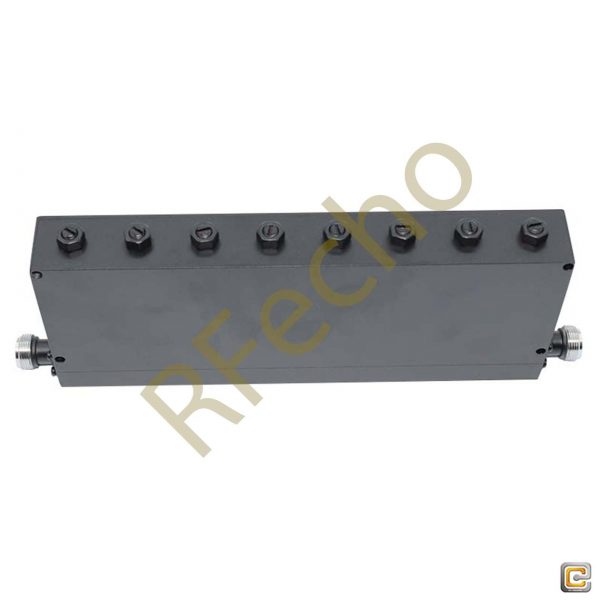

Bandpass Filter From 930MHz To 934MHz With N-Female Connectors OBP-932-4

Bandpass Filter From 930MHz To 934MHz With N-Female Connectors OBP-932-4

Cavity bandpass filter part number OBP-932-4 is only one product of a wide selection of coaxial RF filter components supplied by RFecho. This RF cavity band pass filter design is built from 930MHz to 934MHzGHz with N Female connectors. The N-Type cavity bandpass filter design is rated for a VSWR of ≤1.5:1 and a maximum power of 20 Watts.

SKU: OBP-932-4 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Cavity bandpass filter part number OBP-932-4 is only one product of a wide selection of coaxial RF filter components supplied by RFecho. This RF cavity band pass filter design is built from 930MHz to 934MHz with N Female connectors. The N-Type cavity bandpass filter design is rated for a VSWR of ≤1.5:1 and a maximum power of 20 Watts.

RFecho bandpass filter has a minimum passband frequency of 0.01 GHz and a maximum pass band frequency of 40 GHz. Cavity RF band-pass filter part number OBP-932-4 has an insertion loss maximum that is 2.0 dB. More coaxial N-Type bandpass filter design specs for this radio frequency component can be found on its cavity RF bandpass filter PDF specifications datasheet.

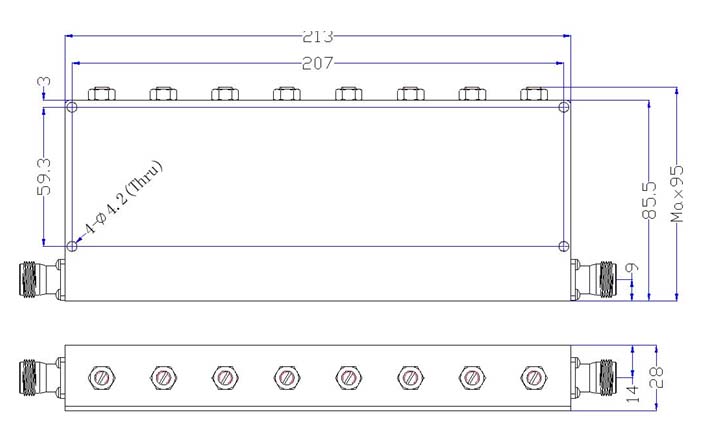

Outline



PDF

OBP-932-4 Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

NA

Min. Pass Band Frequency (MHz)

930

Max. Pass Band Frequency (MHz)

934

Pass Band Insertion Loss (dB)

≤2.0

Stop Band Rejection

NA

Impedance (Ω)

50

Power Handling (W)

≤20

Connection Type

N Female
