1GHz to 6GHz High Pass Passive Filter rejection ≥ 60dB @ DC~0.86GHz High Pass Passive Cavity Filter with SMA Female Connector

1GHz to 6GHz High Pass Passive Filter rejection ≥ 60dB @ DC~0.86GHz High Pass Passive Cavity Filter with SMA Female Connector

1GHz to 6GHz High Pass Passive Filter model OHP: 1000-6000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This 1GHz to 6GHz High Pass Passive Filter manufactured with a passband frequency from 1GHz to 6GHz and a Cut-off frequency 1GHz. Our High Pass Passive Cavity Filter provides a nominal insertion loss of ≤2.0dB @ 1GHz to 1.15GHz | ≤1.0dB @ 1.15GHz to 6GHz across its passband and a typical rejection of ≥60dB @ DC to 0.86GHz. Since the high end cutoff frequency of 1GHz to 6GHz High Pass Cavity Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This High Pass Passive Cavity Filter has Passband VSWR of ≤1.6:1 and power handling of ≤15W. 1GHz to 6GHz High Pass Cavity Filter is manufactured with SMA Female Connector and Net weight of 0.106Kg. 1GHz to 6GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 1GHz to 6GHz High Pass Cavity Filter is ready for shipping worldwide after purchase. Additional specs of this High Pass Passive Cavity Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OHP-1000-6000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

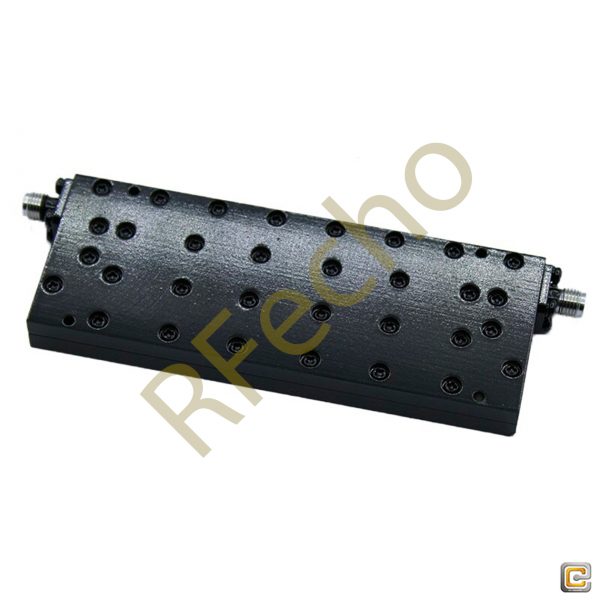

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Cavity Filter – OHP-1000-6000:

  • Cut Off Frequency: 1GHz,
  • Pass Band Frequency:  1-6GHz,
  • Pass Band Insertion Loss: 2dB,
  • Pass Band VSWR: 1.6,
  • Rejection: ≥60 dB @ DC – 0.86 GHz

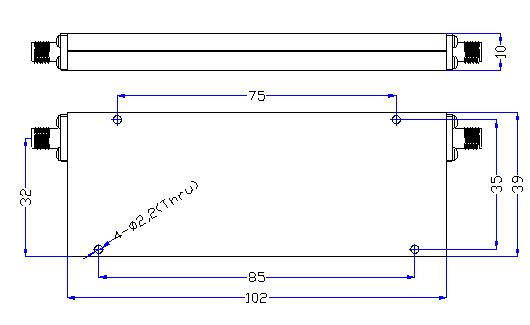

Outline

1.0 GHz to 6 GHz Rejection ≥60 dB @ DC - 0.86 GHz High Pass Cavity Filter 01

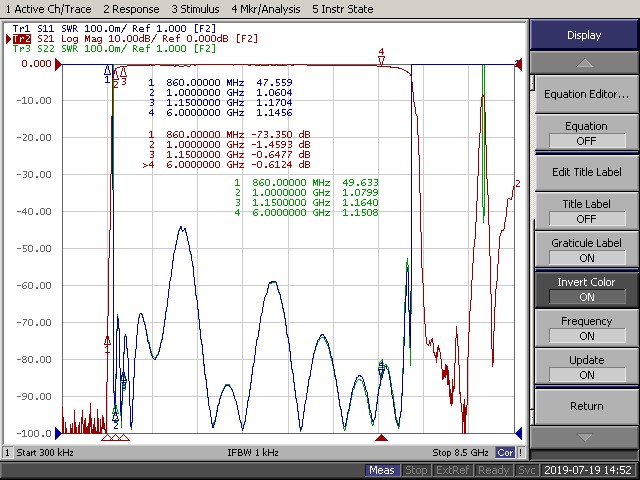

Plot

1.0 GHz to 6 GHz Rejection ≥60 dB @ DC - 0.86 GHz High Pass Cavity Filter 02

PDF

Additional information

Weight 0.106 kg
Min. Pass Band Frequency (GHz)

1.0

Max. Pass Band Frequency (GHz)

6

Connection Type

SMA-Female

Power Handling (W)

≤15

Insertion Loss

≤2.0dB @ 1.0 ~ 1.15GHz ≤1.0dB @ 1.15 ~ 6.0GHz

VSWR

≤1.6:1

Rejection

≥60 dB @ DC – 0.86 GHz

Impedance (Ω)

50

Surface Finish

Guided Oxygen or Black Paint
