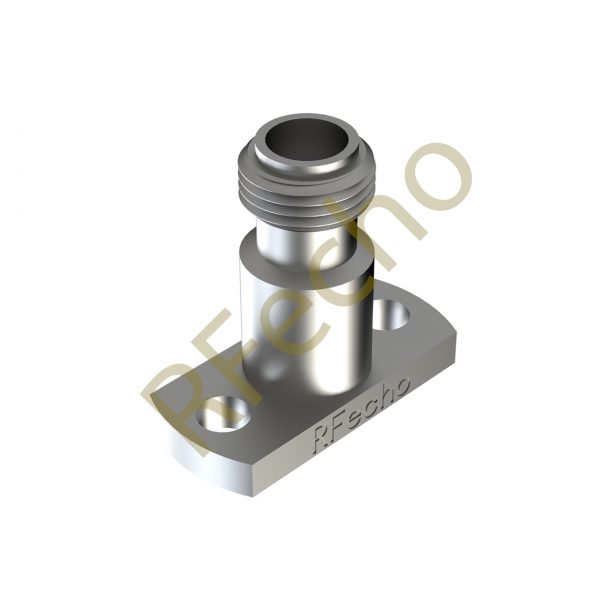

1.0mm 110 GHz, 0.009″ Accept Pin Diameter, 2 Hole 0.400″ Long Mounting Flange Female Connector

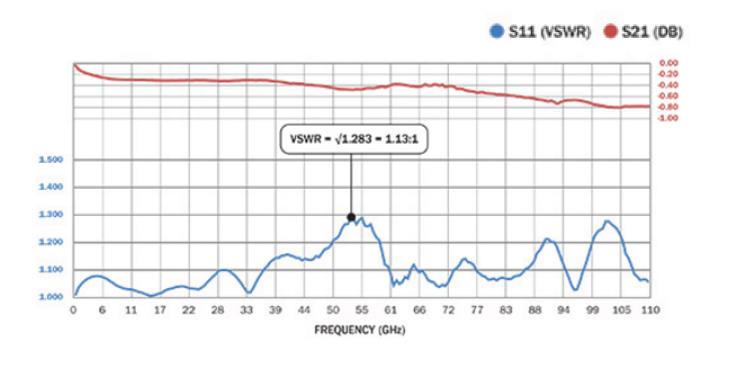

This Model D100-P09-F10 is a Female connector. 1.0mm connector is rugged and durable, featuring a 360° raised grounding ring and operational temperature rating of -55°C to +165°C, offering well-matched impedance, excellent repeatability, and the industry’s lowest VSWR 1.2:1, insertion loss 0.6 dB, and RF leakage ≤ -100 dB.
1.00mm (W) Connector offer the frequency range from DC to 110 GHz, with 2 Hole0.400″ Long mounting 1.00mm (W) Connector has an accept pin diameter of 0.009″inches.
- Description
- Reviews (0)
Description
| 1.00mm (W) Connector | |
| 1.0mm 110 GHz, 0.009″ Accept Pin Diameter, 2 Hole 0.400″ Long Mounting Flange Female Connector | |
| D100-P09-F10 | |
| This Model D100-P09-F10 is a Female connector. 1.0mm connector is rugged and durable, featuring a 360° raised grounding ring and operational temperature rating of -55°C to +165°C, offering well-matched impedance, excellent repeatability, and the industry’s lowest VSWR 1.2:1, insertion loss 0.6 dB, and RF leakage ≤ -100 dB. 1.00mm (W) Connector offer the frequency range from DC to 110 GHz, with 2 Hole0.400″ Long mounting 1.00mm (W) Connector has an accept pin diameter of 0.009″inches. | |
| Property | Value |
| Min. Frequency (GHz) | DC |
| Max. Frequency (GHz) | 110 |

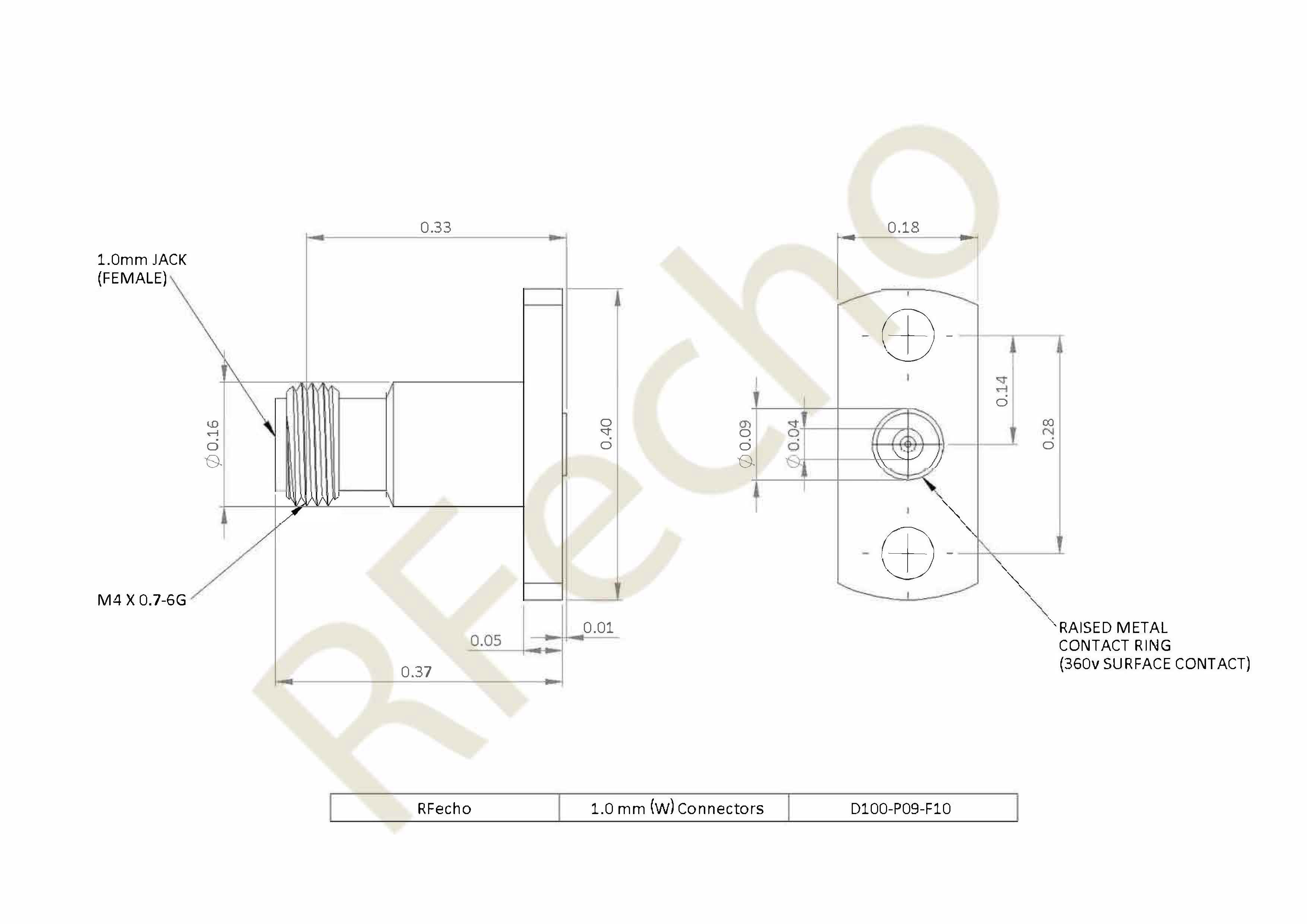

| Flange (inch) | 0.400″ Long |
| Mounting | 2 Hole |
| Accept Pin Diameter (inch) | 0.009″ |
| Gender | Female |
| Features | |
| Low VSWR | |
| Free through 110 GHz | |
| Applications | |
| Telecom Communication | |
| Sub-assemblies | |
| Radio equipment and instruments | |
| Wireless Communication | |
| Test Labs | |
| Instrumentations | |
