1.85mm 67 GHz, 0.009″ Accept Pin Diameter, 4 Hole 0.500″ Square Mounting Flange Female Connector

1.85mm 67 GHz, 0.009″ Accept Pin Diameter, 4 Hole 0.500″ Square Mounting Flange Female Connector

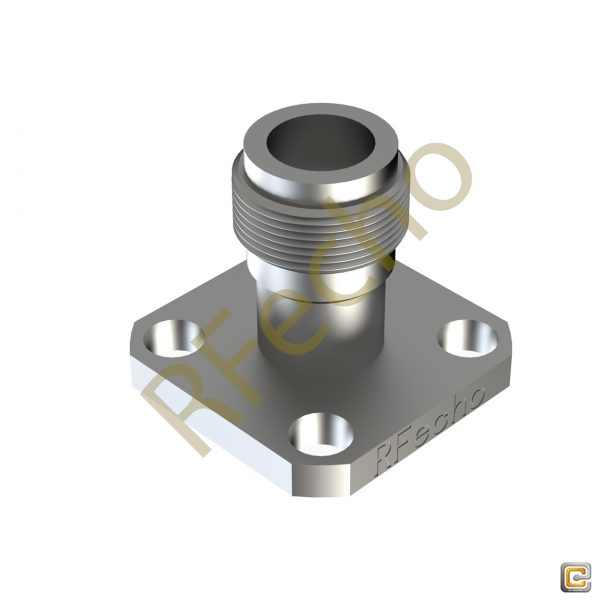

Model D180-P09-F01 is a Female connector. 1.85mm (V) Connectors are durable, operational temperature rating of -55°C to +165°C, offering well-matched impedance, excellent repeatability, having the low VSWR and RF leakage ≤ -100 dB.

1.85mm (V) Connectors offers the frequency range from DC to 67GHz. 1.85mm (V) Connectors have 4 Hole 0.500″ Square mounting. This model of 1.85mm (V) Connectors provide the Accept Pin Diameter of 0.009″ inches.

Description

SPEC

1.85mm (V) Connectors

1.85mm 67 GHz, 0.009″ Accept Pin Diameter, 4 Hole 0.500″ Square Mounting Flange Female Connector

D180-P09-F01

Model D180-P09-F01 is a Female connector. 1.85mm (V) Connectors are durable, operational temperature rating of -55°C to +165°C, offering well-matched impedance, excellent repeatability, having the low VSWR and RF leakage ≤ -100 dB.

1.85mm (V) Connectors offers the frequency range from DC to 67GHz. 1.85mm (V) Connectors have 4 Hole 0.500″ Square mounting. This model of 1.85mm (V) Connectors provide the Accept Pin Diameter of 0.009″ inches.

Property

Value

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

67

Flange (inch)

0.500″ Square

Mounting

4 Hole

Accept Pin Diameter (inch)

0.009″

Gender

Female

Features

Low VSWR

Free through 67 GHz

Applications

Telecom Communication

Sub-assemblies

Radio equipment and instruments

Wireless Communication

Test Labs

Instrumentations

PDF

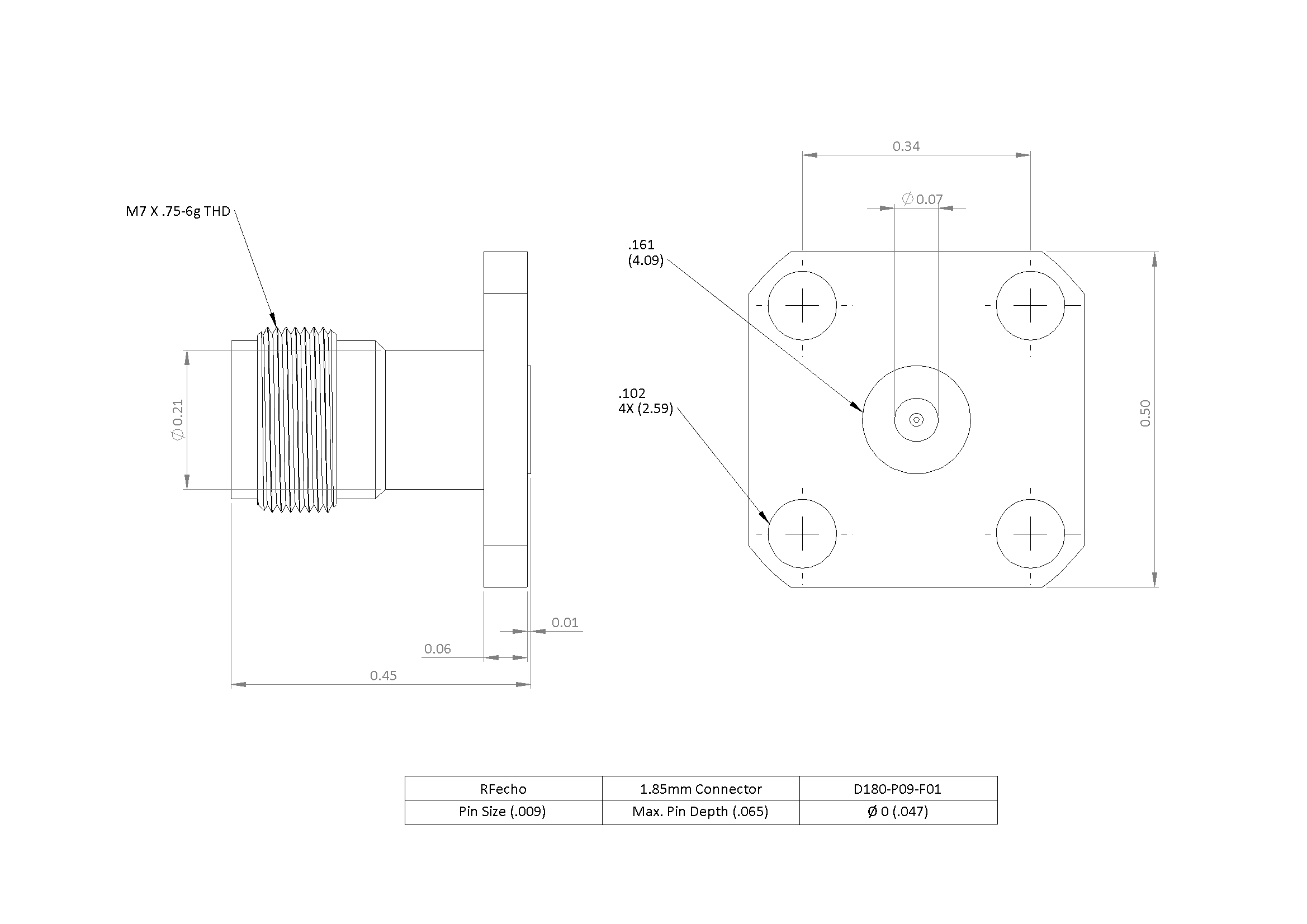

Outline

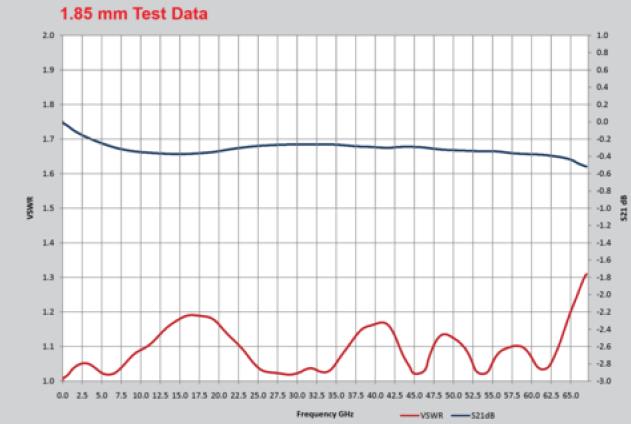

Plot

Additional information

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

67

Flange (inch)

0.500″ Square

Mounting

4 Hole

Accept Pin Diameter (inch)

0.009"

Gender

Female
