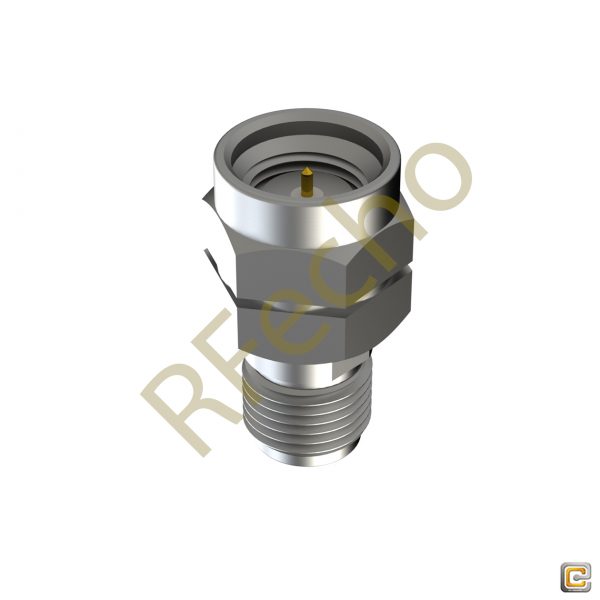

1.85mm 67 GHz, 0.012″ Accept Pin Diameter, Thread-In Male Connector

1.85mm 67 GHz, 0.012″ Accept Pin Diameter, Thread-In Male Connector

Model D181-P12-Y02-A is a Male connector. 1.85mm (V) Connectors are durable, operational temperature rating of -55°C to +165°C, offering well-matched impedance, excellent repeatability, having the low VSWR and RF leakage ≤ -100 dB.

1.85mm (V) Connectors offers the frequency range from DC to 67GHz. 1.85mm (V) Connectors have Thread-In mounting. This model of 1.85mm (V) Connectors provide the Accept Pin Diameter of 0.012″ inches.

Description

SPEC

1.85mm (V) Connectors

1.85mm 67 GHz, 0.012″ Accept Pin Diameter, Thread-In Male Connector

D181-P12-Y02-A

Model D181-P12-Y02-A is a Male connector. 1.85mm (V) Connectors are durable, operational temperature rating of -55°C to +165°C, offering well-matched impedance, excellent repeatability, having the low VSWR and RF leakage ≤ -100 dB.

1.85mm (V) Connectors offers the frequency range from DC to 67GHz. 1.85mm (V) Connectors have Thread-In mounting. This model of 1.85mm (V) Connectors provide the Accept Pin Diameter of 0.012″ inches.

Property

Value

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

67

Flange (inch)

NA

Mounting

Thread-In

Accept Pin Diameter (inch)

0.012″

Gender

Male

Features

Low VSWR

Free through 67 GHz

Applications

Telecom Communication

Sub-assemblies

Radio equipment and instruments

Wireless Communication

Test Labs

Instrumentations

PDF

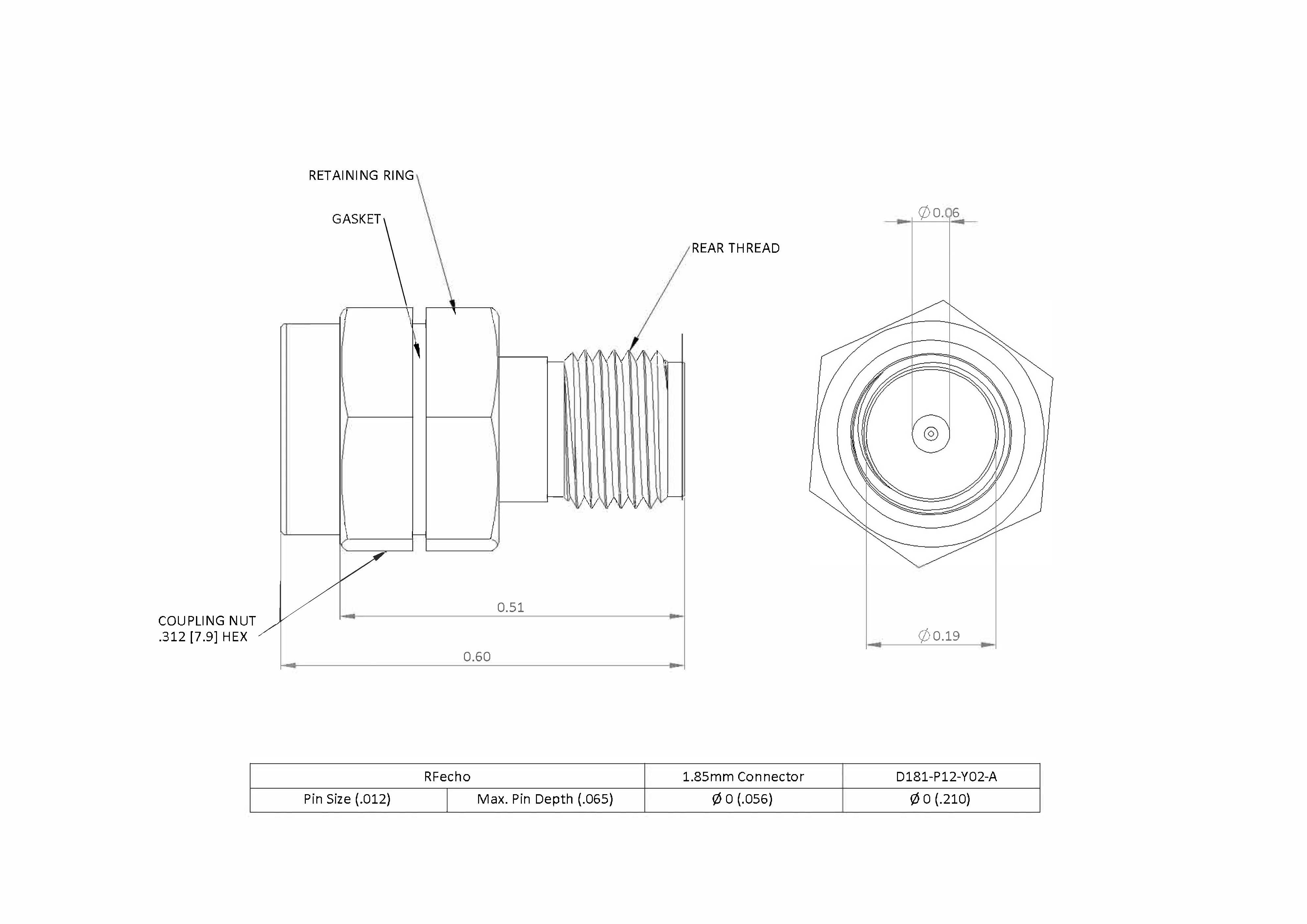

Outline

D181 P12 Y02 A outline 1.85mm 67 GHz, 0.012" Accept Pin Diameter, Thread-In Male Connector

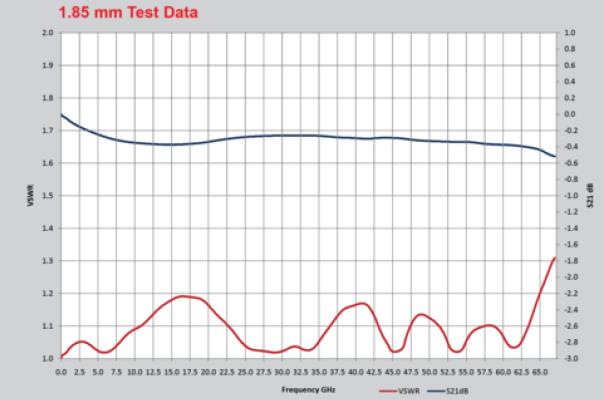

Plot

D181 P12 Y02 A plot1 1.85mm 67 GHz, 0.012" Accept Pin Diameter, Thread-In Male Connector

Additional information

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

67

Flange (inch)

Mounting

Accept Pin Diameter (inch)

Gender
