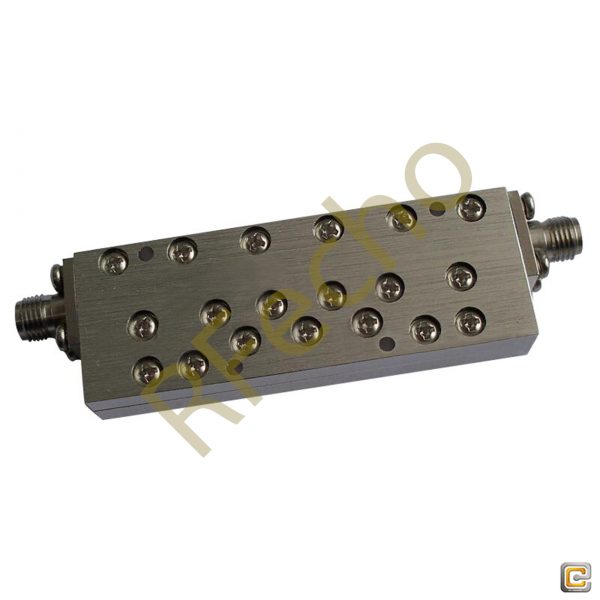

High Pass RF Cavity Filter 1.2GHz to 11.5GHz Microwave Passive High Pass Filter rejection ≥ 60dB @ DC~0.8GHz with SMA Female Connector

High Pass RF Cavity Filter model OHP: 1200-11500 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This High Pass RF Cavity Filter Manufactured with a passband frequency from 1.2GHz to 11.5GHz and a Cut-off frequency 1.0GHz. Our Microwave Passive High Pass Filter provides a nominal insertion loss of ≤1.5dB across its passband and a typical rejection of ≥60dB @ DC – 0.8GHz. Since the high end cutoff frequency of High Pass RF Cavity Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Microwave Passive High Pass Filter has Passband VSWR of ≤1.5:1 and power handling of ≤5W. High Pass RF Cavity Filter is manufactured with SMA Female Connector and Net weight of 0.04Kg.
1.2GHz to 11.5Hz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 1.2GHz to 11.5GHz High Pass RF Cavity Filter is ready for shipping worldwide after purchase. Additional specs of this Microwave Passive High Pass Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OHP-1200-11500 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

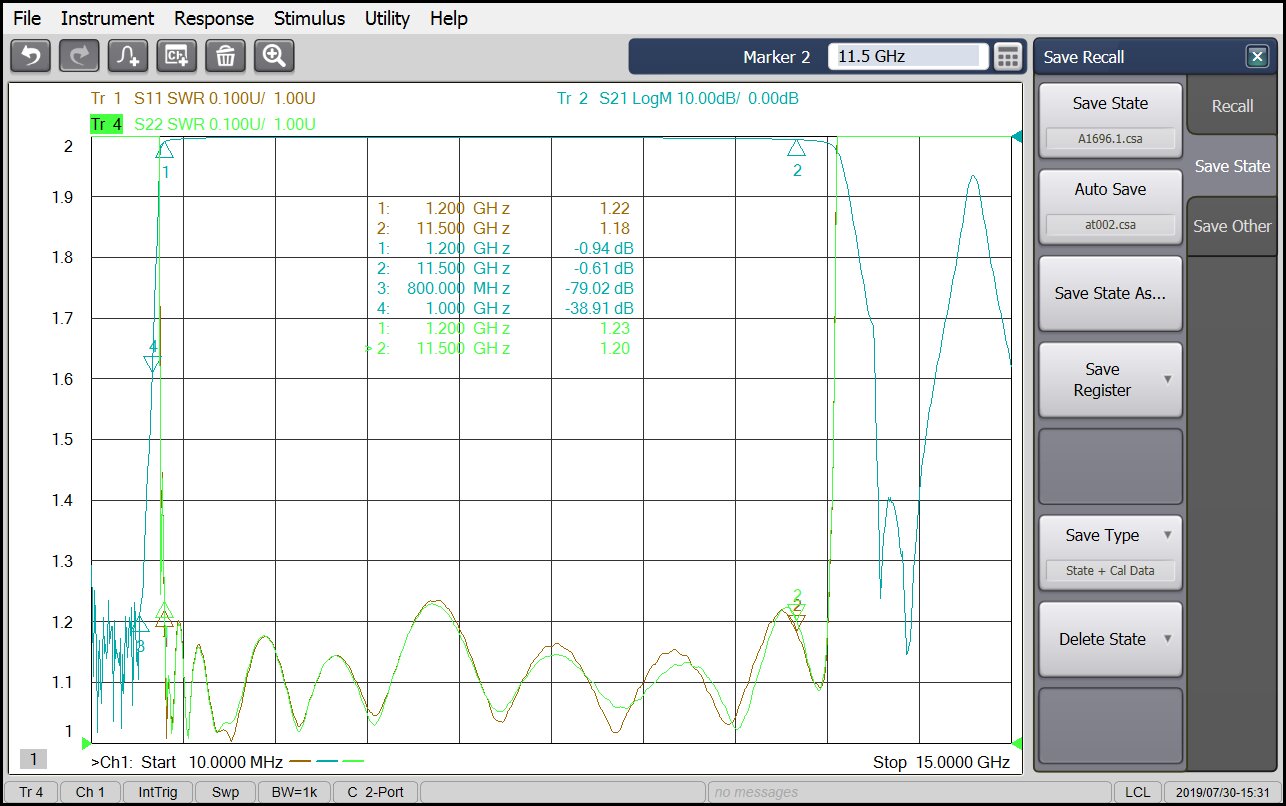

High Pass Filter (OHP) – OHP-1200-11500:

  • Cut Off Frequency: 1.0GHz,
  • Pass Band Frequency: 1.2-11.5GHz,
  • Pass Band Insertion Loss: 1.5dB,
  • Pass Band VSWR: 1.5,
  • Rejection: ≥60dB @ DC-0.8GHz.

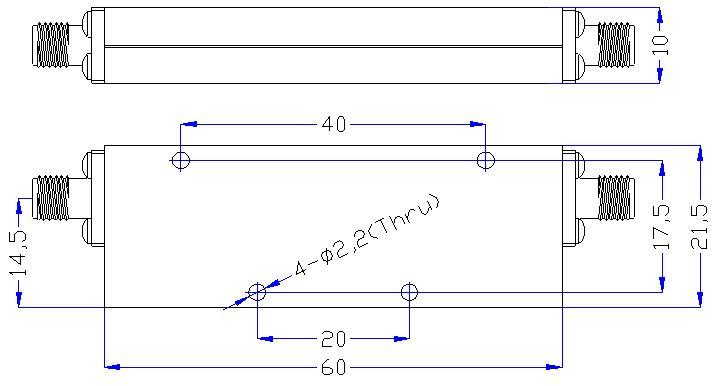

Additional information

Weight 0.04 kg
Min. Pass Band Frequency (GHz)

1.2

Max. Pass Band Frequency (GHz)

11.5

Connection Type

SMA-Female

Power Handling (W)

≤15

Insertion Loss

≤1.5dB

VSWR

≤1.5:1

Rejection

≥35 dB @ 1.0 GHz ≥60 dB @ DC-0.8 GHz

Impedance (Ω)

50

Surface Finish

Guided Oxygen or Black Paint
