High Pass RF Passive Filter 1.25GHz to 7GHz Cavity Passive High Pass Filter rejection ≥ 60dB @ DC~1.04GHz with SMA Female Connector

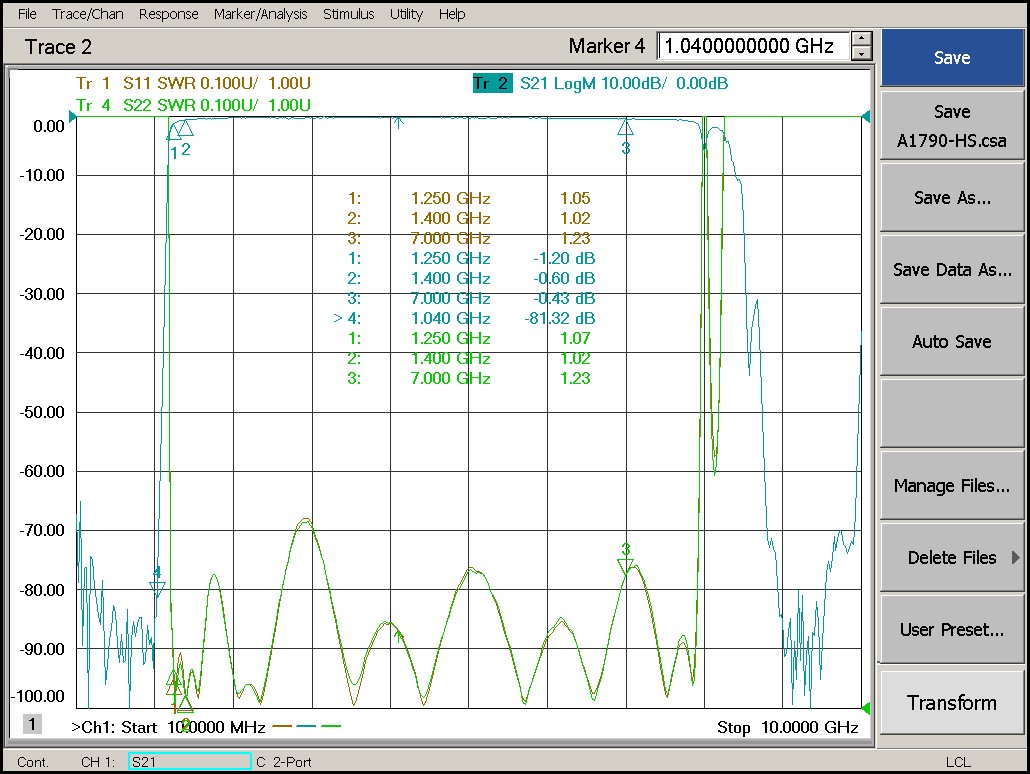

High Pass RF Passive Cavity Filter model OHP: 1250-7000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This High Pass RF Passive Cavity Filter Manufactured with a passband frequency from 1.25GHz to 7GHz and a Cut-off frequency 1.25GHz. Our Cavity Passive High Pass Filter provides a nominal insertion loss of ≤2.0dB @ 1.25GHz – 1.4GHz | ≤1.0dB @ 1.4GHz – 7GHz across its passband and a typical rejection of ≥60dB @ DC – 1.04GHz. Since the high end cutoff frequency of High Pass RF Passive Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Cavity Passive High Pass Filter has Passband VSWR of ≤1.5:1 and power handling of ≤15W. High Pass RF Passive Filter is manufactured with SMA Female Connector and Net weight of 0.085Kg.
1.25GHz to 7Hz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 1.25GHz to 7GHz High Pass RF Passive Filter is ready for shipping worldwide after purchase. Additional specs of this Cavity Passive High Pass Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.
- Description
- Additional information
- Reviews (0)
Description
RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.
High Pass Cavity Filter – OHP-1250-7000:
- Cut Off Frequency: 1.25GHz,
- Pass Band Frequency: 1.25-7GHz,
- Pass Band Insertion Loss: 2.0dB,
- Pass Band VSWR: 1.5,
- Rejection: ≥60 dB @ DC -1.04 GHz
Additional information
Weight | 0.085 kg |
---|---|
Min. Pass Band Frequency (GHz) | |
Max. Pass Band Frequency (GHz) | |
Connection Type | |
Power Handling (W) | |
Insertion Loss | |
VSWR | ≤1.5:1 |
Rejection | |
Impedance (Ω) | |
Surface Finish |
