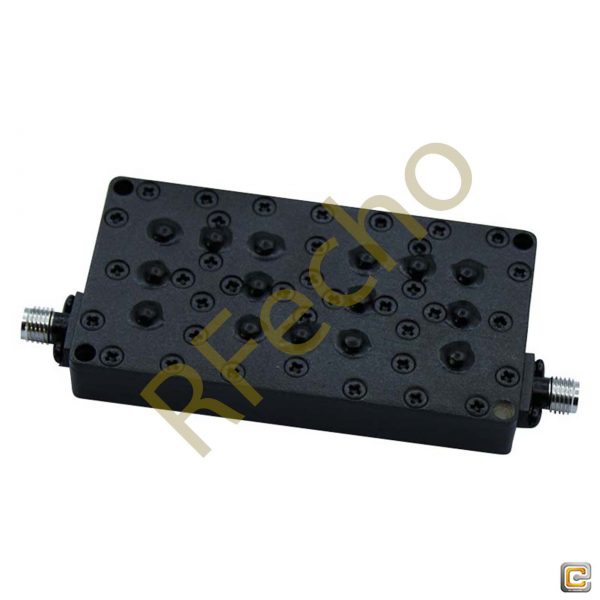

Cavity Band Pass OBP-9840-80

Cavity Band Pass OBP-9840-80

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-9840-80,its Center Frequency(F0) is 9.84GHz, its Pass Band Bandwidth is 9800~9880MHz, its Pass Band
InsertionLoss is≤2.8dB, and its PassBand VSWR is≤1.3:1. Its Stop Band frequency is DC~9760MHz、9920~15000MHz. The Stop Band Rejection is:≥30dB

SKU: OBP-9840-80 Categories: ,

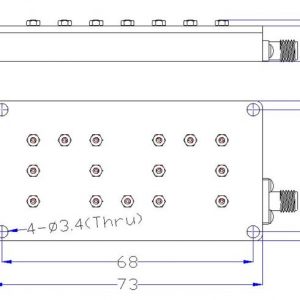

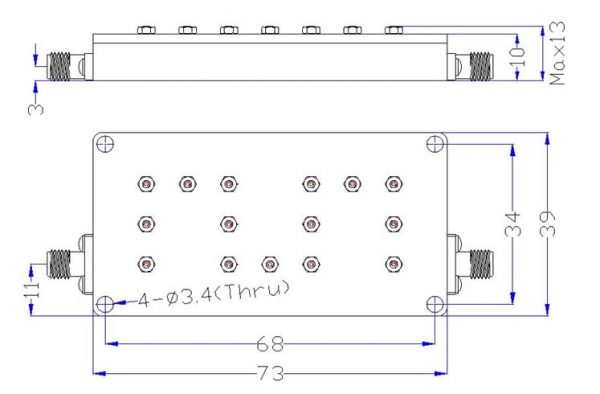

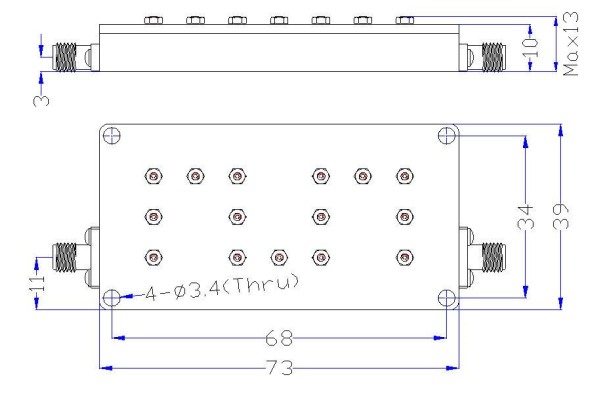

OBP 9840 80 outline Cavity Band Pass OBP-9840-80

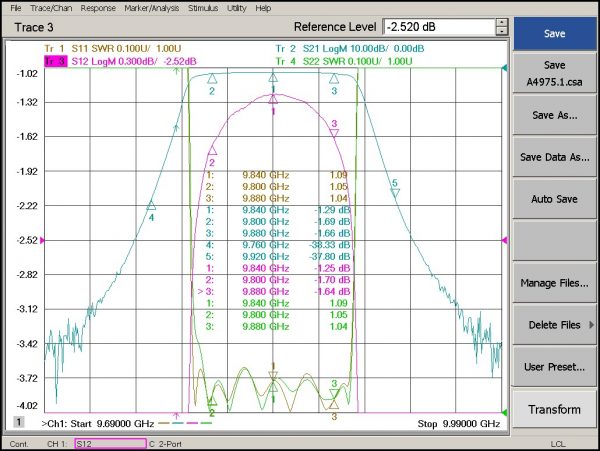

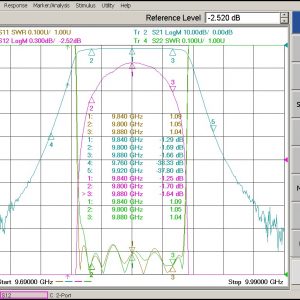

OBP 9840 80 plot1 Cavity Band Pass OBP-9840-80

Additional information

Center Frequency (F0) (MHz)

Min. Pass Band Frequency (MHz)

Max. Pass Band Frequency (MHz)

Pass Band Insertion Loss (dB)

Stop Band Rejection

Impedance (Ω)

Power Handling (W)

Connection Type
