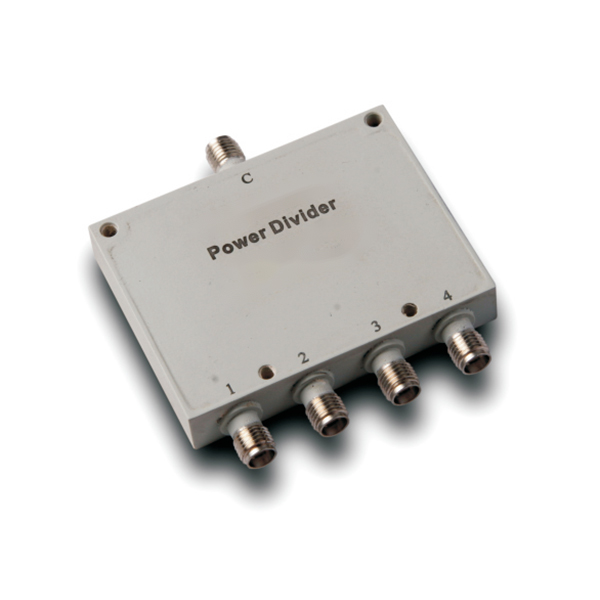

1-2GHz Insertion Loss 0.60dB SMA Connector 0° Power Divider
SMA connector 0-degree power divider
Covers 0.5-18GHz series (Model specific: 1-2GHz)
Small size
Low insertion loss
Low VSWR
High isolation
Batch production control ensures high consistency
Applications: Electronic warfare, radar, navigation, test and measurement, communication systems
- Description
- Datasheet

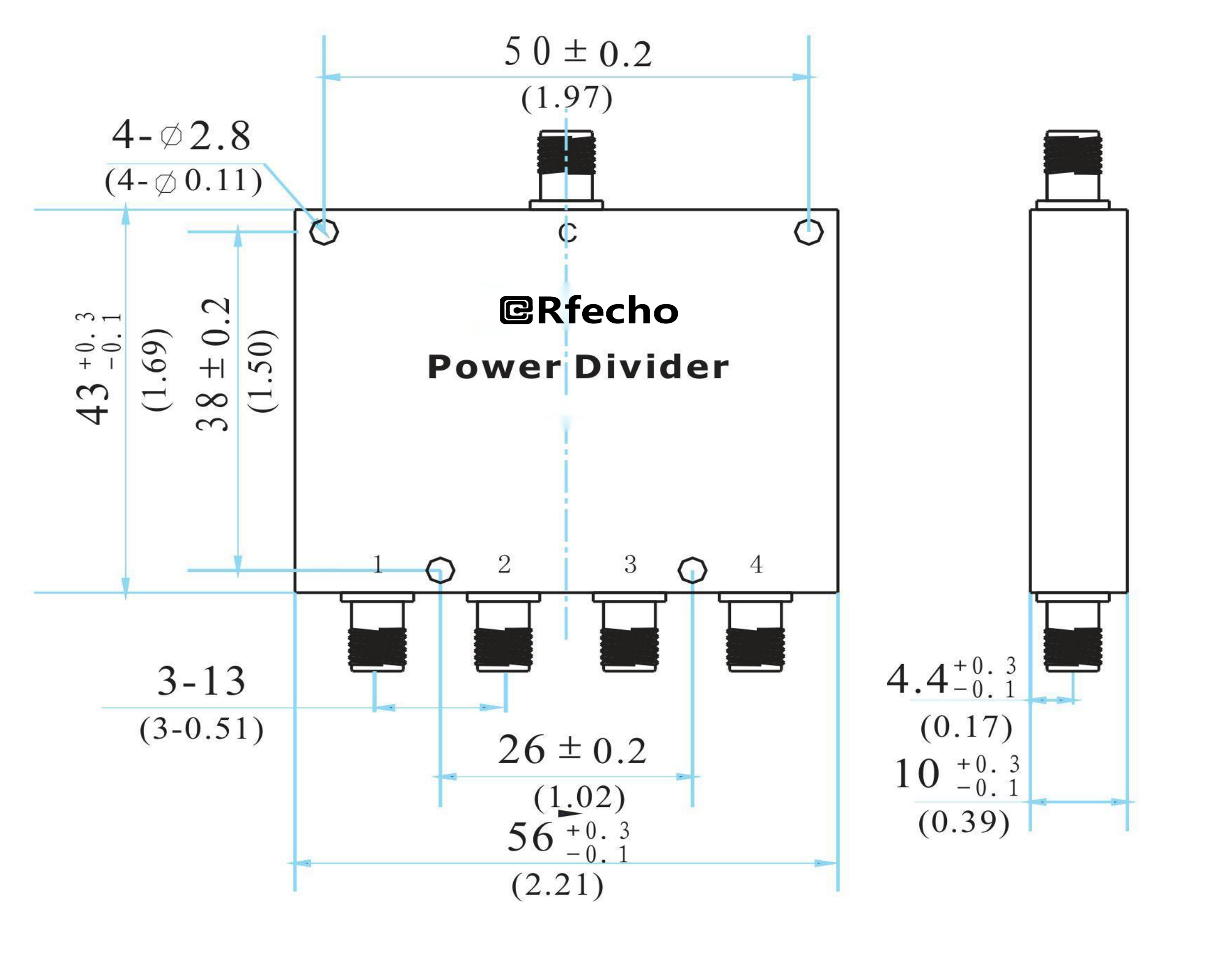

- Outline
- Reviews (0)
Description
The OPD-A series power dividers are SMA connector 0°power dividers, covering the full 0.5-18GHz range. They feature small size, low loss, low VSWR, and high isolation. Thisseries utilizes batch production control methods to ensurehigh product quality consistency and meet large-scale supply requirements. The OPD-A0431 is primarily used for signaldistribution and combination in systems such as electronicwarfare, radar, navigation, testing, and communications. Thisseries is a standard product, customizable based on userneeds.
OPD-A0431 |
|
|
1-2GHz Insertion Loss 0.60dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
1-2GHz |
|
Insertion Loss |
0.60dB |
|
Isolation |
20dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.30dB |
|
Phase Balance |
±3° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.3 |
|
Output VSWR |
1.2 |
|
Compliance |
Meets ‘GJB-1509-1992’ test requirements |
Features |
|
|
SMA connector 0-degree power divider |
|
|
Covers 0.5-18GHz series (Model specific: 1-2GHz) |
|
|
Small size |
|
|
Low insertion loss |
|
|
Low VSWR |
|
|
High isolation |
|
|
Batch production control ensures high consistency |
|
|
Applications: Electronic warfare, radar, navigation, test and measurement, communication systems |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
