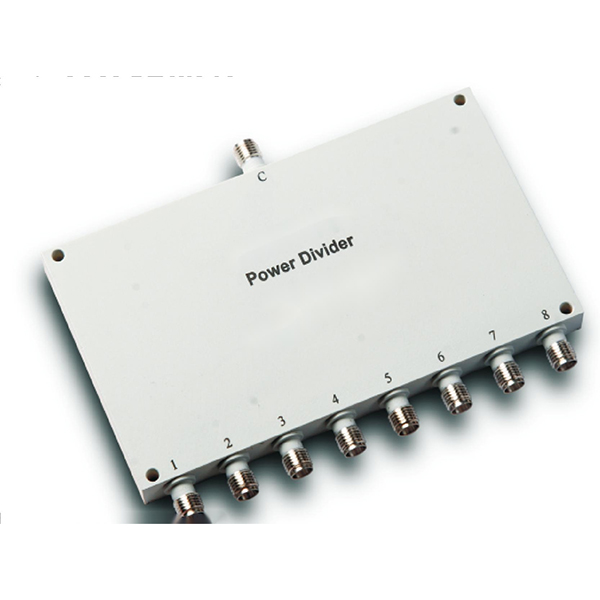

1-2GHz Insertion Loss 1.00dB SMA Connector 0° Power Divider
Frequency Range: 1-2GHz
8-Way Power Divider
SMA Connectors
Low Insertion Loss: 1.00dB
High Isolation: 20dB
Low VSWR: Input 1.30 / Output 1.20
Excellent Phase and Amplitude Balance
Applications: Electronic warfare, radar, navigation, communication systems
- Description
- Datasheet

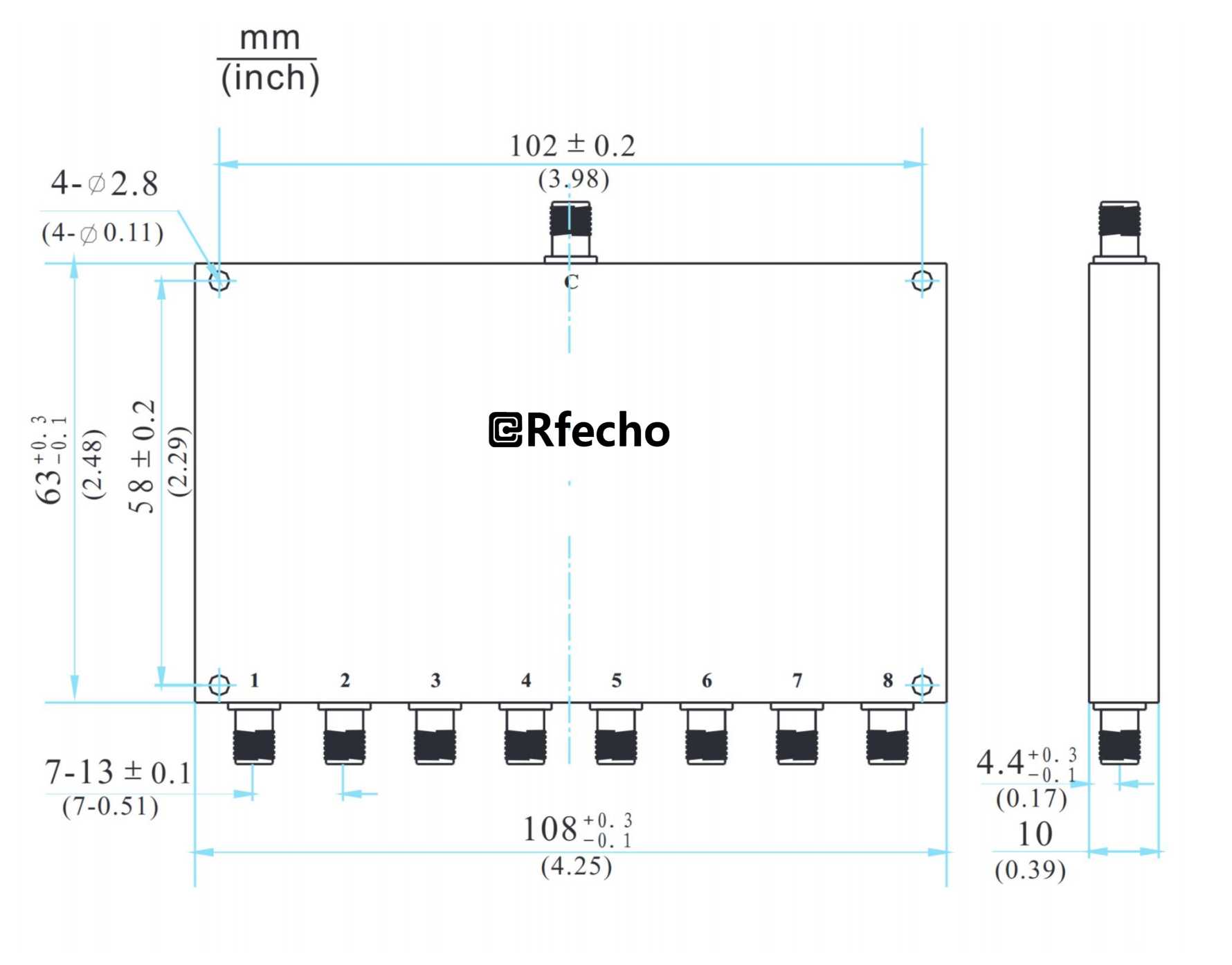

- Outline
- Reviews (0)
Description
The OPD-A0831 is a high-performance 8-way power divideroperating in the 1-2GHz frequency range. Part of the OPD-Aseries, this device features SMA-Female connectors and offers compact size with superior electrical performance, in-cluding low insertion loss and high isolation. It is designedfor reliability in demanding applications such as radar signaldistribution, electronic warfare, and test measurement systems.
OPD-A0831 |
|
|
1-2GHz Insertion Loss 1.00dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
1-2GHz |
|
Insertion Loss |
1.00dB |
|
Isolation |
20dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.40dB |
|
Phase Balance |
±5° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.3 |
|
Output VSWR |
1.2 |
|
Compliance |
Compliant with GJB-1509-1992 test standards |
Features |
|
|
Frequency Range: 1-2GHz |
|
|
8-Way Power Divider |
|
|
SMA Connectors |
|
|
Low Insertion Loss: 1.00dB |
|
|
High Isolation: 20dB |
|
|
Low VSWR: Input 1.30 / Output 1.20 |
|
|
Excellent Phase and Amplitude Balance |
|
|
Applications: Electronic warfare, radar, navigation, communication systems |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
