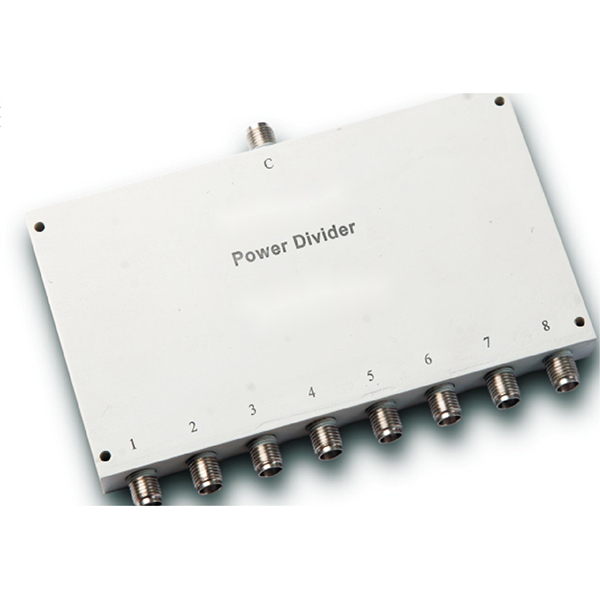

2-8GHz Insertion Loss 1.80dB SMA Connector 0° Power Divider
A-series power dividers are SMA connector 0° power dividers, covering the full 0.5-18GHz range.
Features include small size, low insertion loss, low VSWR, and high isolation.
This series adopts mass production control methods, ensuring consistent product quality and meeting large-vol- ume delivery requirements.
- Description
- Datasheet

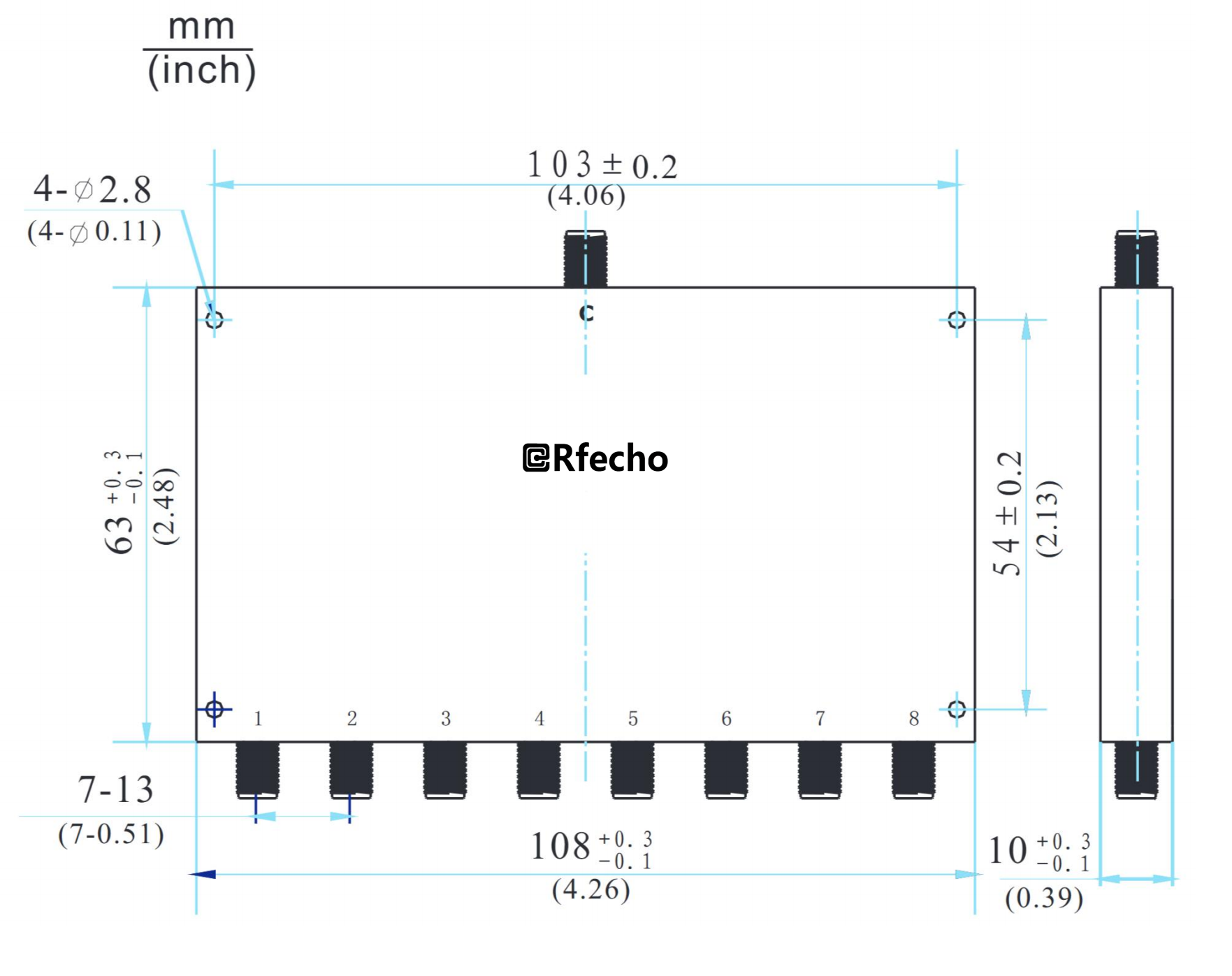

- Outline
- Reviews (0)
Description
The OPD-A0823 is used in communication, electronic warfare, radar, navigation, and measurement systems for thedistribution and combination of 8-way microwave signals.This series is a standardized product which can be customized according to user needs. Commercial and militarygrade products are available for users to choose.
OPD-A0823 | |
| 2-8GHz Insertion Loss 1.80dB SMA Connector 0° Power Divider | |
Property | Value |
| Frequency Range | 2-8GHz |
| Insertion Loss | 1.80dB |
| Isolation | 17dB |
| Power Handling | 30W |
| Connector | SMA-F |
| Amplitude Balance | ±0.70dB |
| Phase Balance | ±7° |
| Operating Temperature | -55~+85°C |
| Storage Temperature | -55~+100°C |
| Input VSWR | 1.65 |
| Output VSWR | 1.35 |
| Compliance | Meets ‘GJB-1426-92’ test requirements |
Features | |
| A-series power dividers are SMA connector 0° power dividers, covering the full 0.5-18GHz range. | |
| Features include small size, low insertion loss, low VSWR, and high isolation. | |
| This series adopts mass production control methods, ensuring consistent product quality and meeting large-vol- ume delivery requirements. | |
Applications | |
| Electronic Countermeasures, Testing and Measurement | |
