1-4GHz Insertion Loss 0.50dB SMA Connector 0° Power Divider
SMA connector 0° power divider
Series frequency coverage: 0.5-18GHz
Small size, low VSWR, low insertion loss, high isolation
High product consistency suitable for mass production
Applications: Communications, Electronic Warfare, Radar, Navigation, Test & Measurement
- Description
- Datasheet

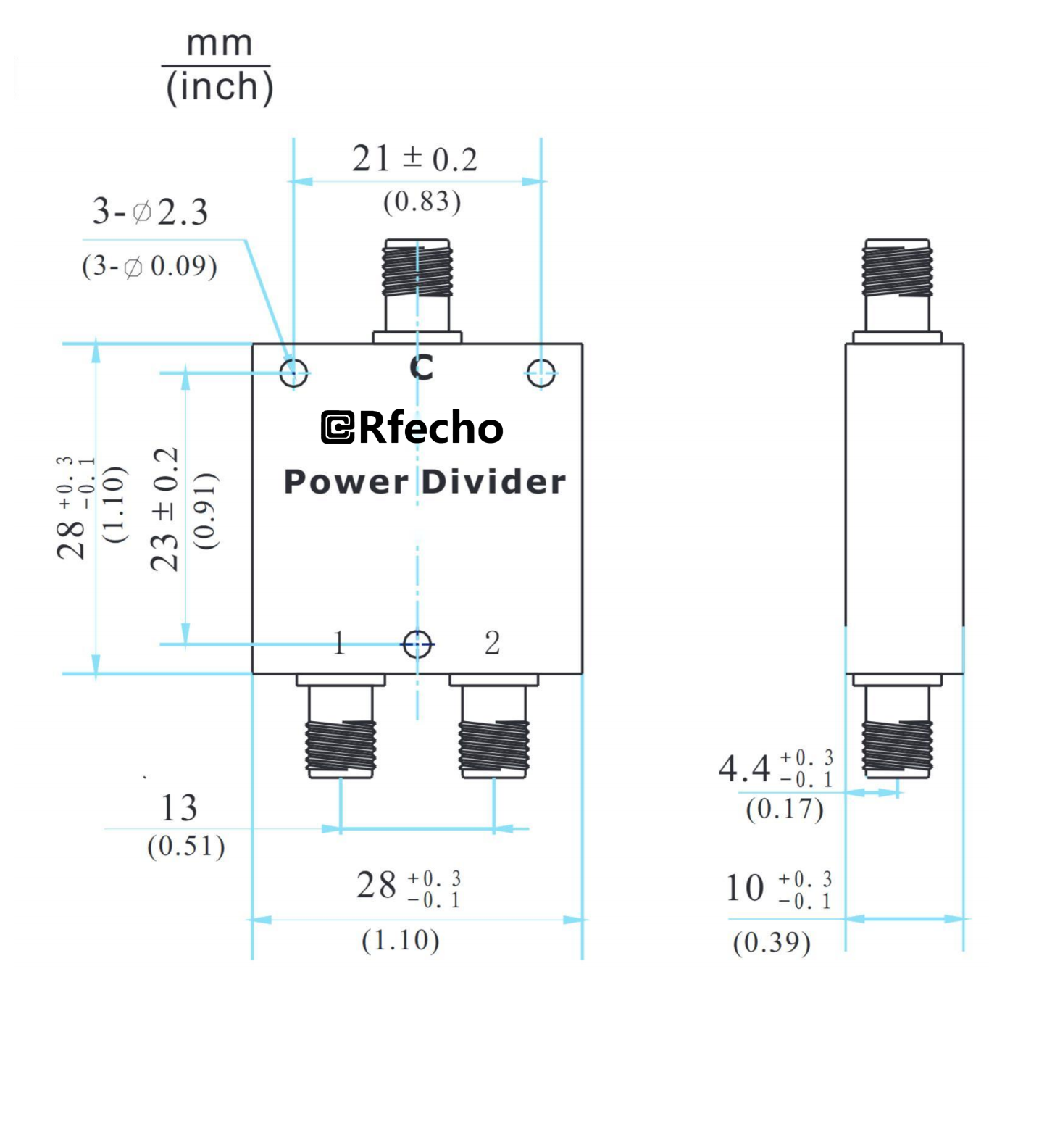

- Outline
- Reviews (0)
Description

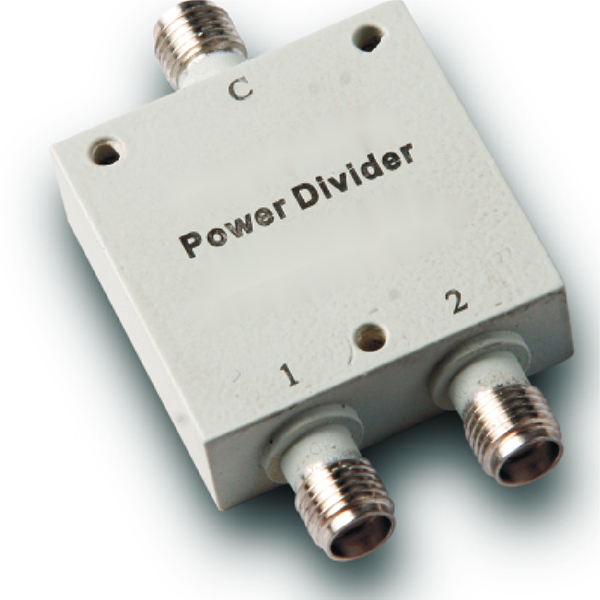

The OPD-A series power dividers are SMA connector 0°power dividers, covering a full range of 0.5-18GHz. Theyfeature small size, low standing wave, small insertion loss,and high isolation. This series uses mass production controlmethods, resulting in high product consistency, capable ofmeeting large-scale delivery requirements. The OPD-A0222is mainly used in communications, electronic countermeasures, radar, navigation, testing and measurement systemsfor the distribution and synthesis of 2-way microwave signals.This series consists of standardized products; customizationis available based on user needs.
OPD-A0222 |
|
|
1-4GHz Insertion Loss 0.50dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
1-4GHz |
|
Insertion Loss |
0.50dB |
|
Isolation |
20dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.30dB |
|
Phase Balance |
±2° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.3 |
|
Output VSWR |
1.25 |
|
Compliance |
Compliant with GJB-1426-92 test items and requirements |
Features |
|
|
SMA connector 0° power divider |
|
|
Series frequency coverage: 0.5-18GHz |
|
|
Small size, low VSWR, low insertion loss, high isolation |
|
|
High product consistency suitable for mass production |
|
|
Applications: Communications, Electronic Warfare, Radar, Navigation, Test & Measurement |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
