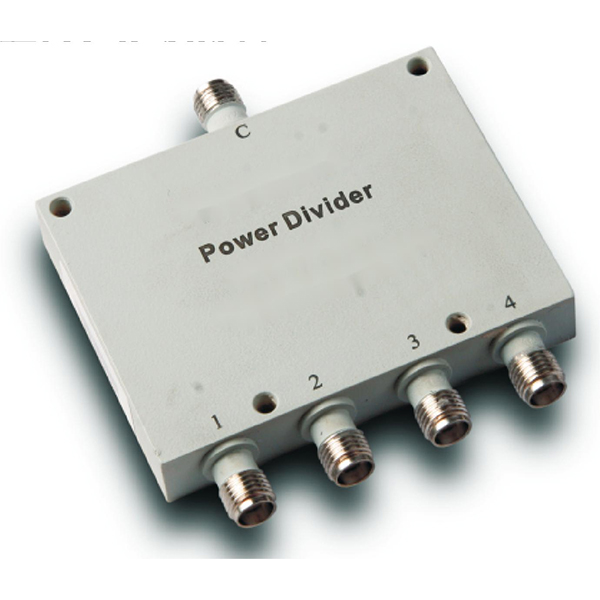

1-4GHz Insertion Loss 0.80dB SMA Connector 0° Power Divider
Frequency Range: 1-4GHz
0 degree power divider
SMA Connectors
Small size
Low insertion loss
Low VSWR
High isolation
High consistency for mass production
- Description
- Datasheet

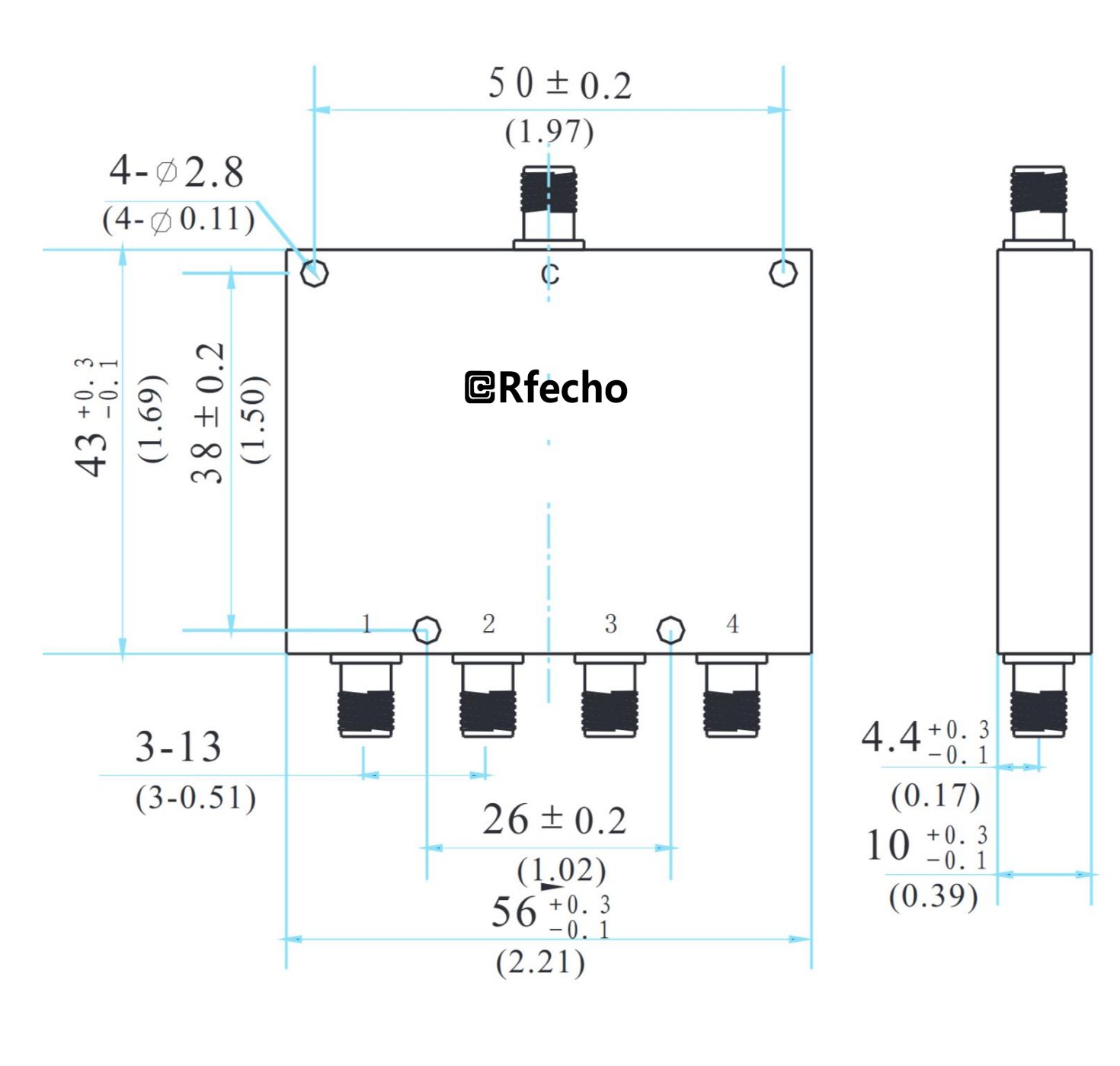

- Outline
- Reviews (0)
Description
The OPD-A0422 is an A-series universal power divider featuring SMA connectors and 0-degree splitting. It covers the1-4GHz frequency band and is designed for applicationsin communication, electronic warfare, radar, navigation, andtest measurement systems. The device offers excellent performance characteristics including small form factor, low loss,and high isolation, making it suitable for standardized massproduction and large-volume delivery.
OPD-A0422 |
|
|
1-4GHz Insertion Loss 0.80dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
1-4GHz |
|
Insertion Loss |
0.80dB |
|
Isolation |
20dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.30dB |
|
Phase Balance |
±4° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.3 |
|
Output VSWR |
1.2 |
|
Compliance |
Compliant with GJB-1426-92 test requirements |
Features |
|
|
Frequency Range: 1-4GHz |
|
|
0 degree power divider |
|
|
SMA Connectors |
|
|
Small size |
|
|
Low insertion loss |
|
|
Low VSWR |
|
|
High isolation |
|
|
High consistency for mass production |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
