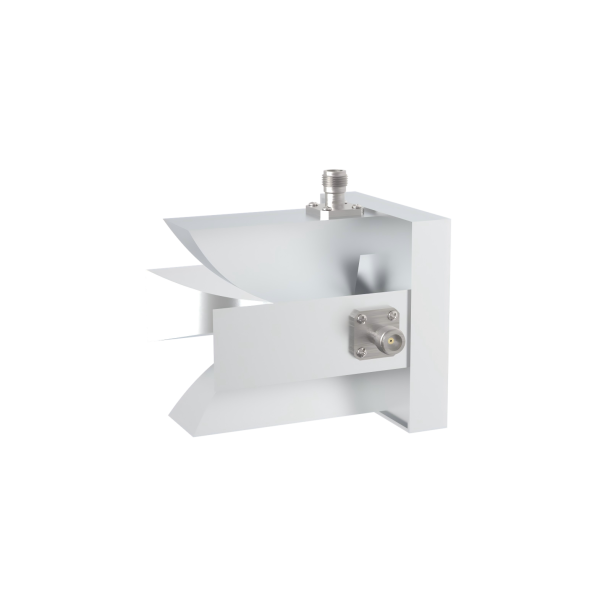

1.5-7.5 dBi Gain, 2GHz to 6GHz, Dual Polarized Horn Antenna ODPA-2060-LEGO
$0
Frequency Range: 2 GHz to 6 GHz
Gain: 1.5 dBi to 7.5 dBi
VSWR: 1.5Typ.
Impedance: 50Ohm
Connector Type: SMA Connector
Power handling: 100W
Dual Polarized Horn Antenna is suitable for high-precision applications.
- Description
- Datasheet

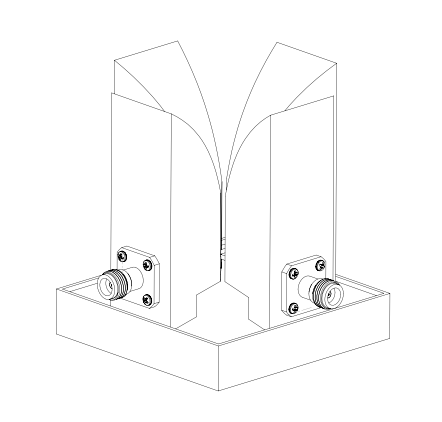

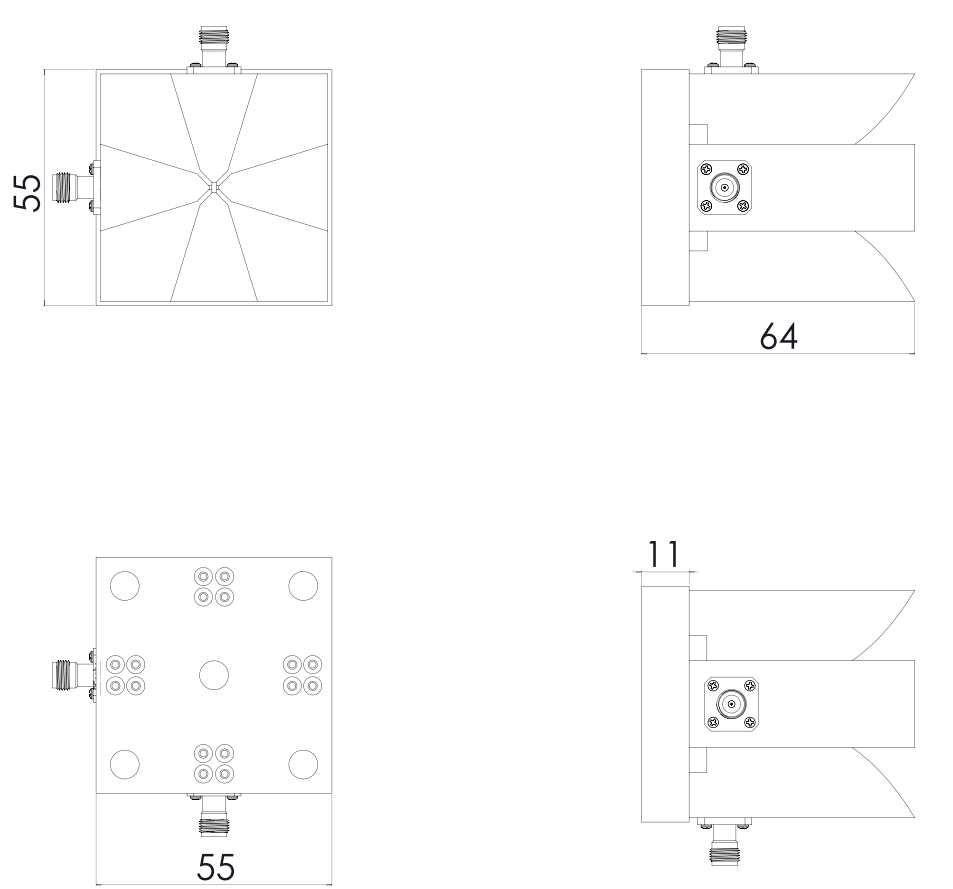

- Outline

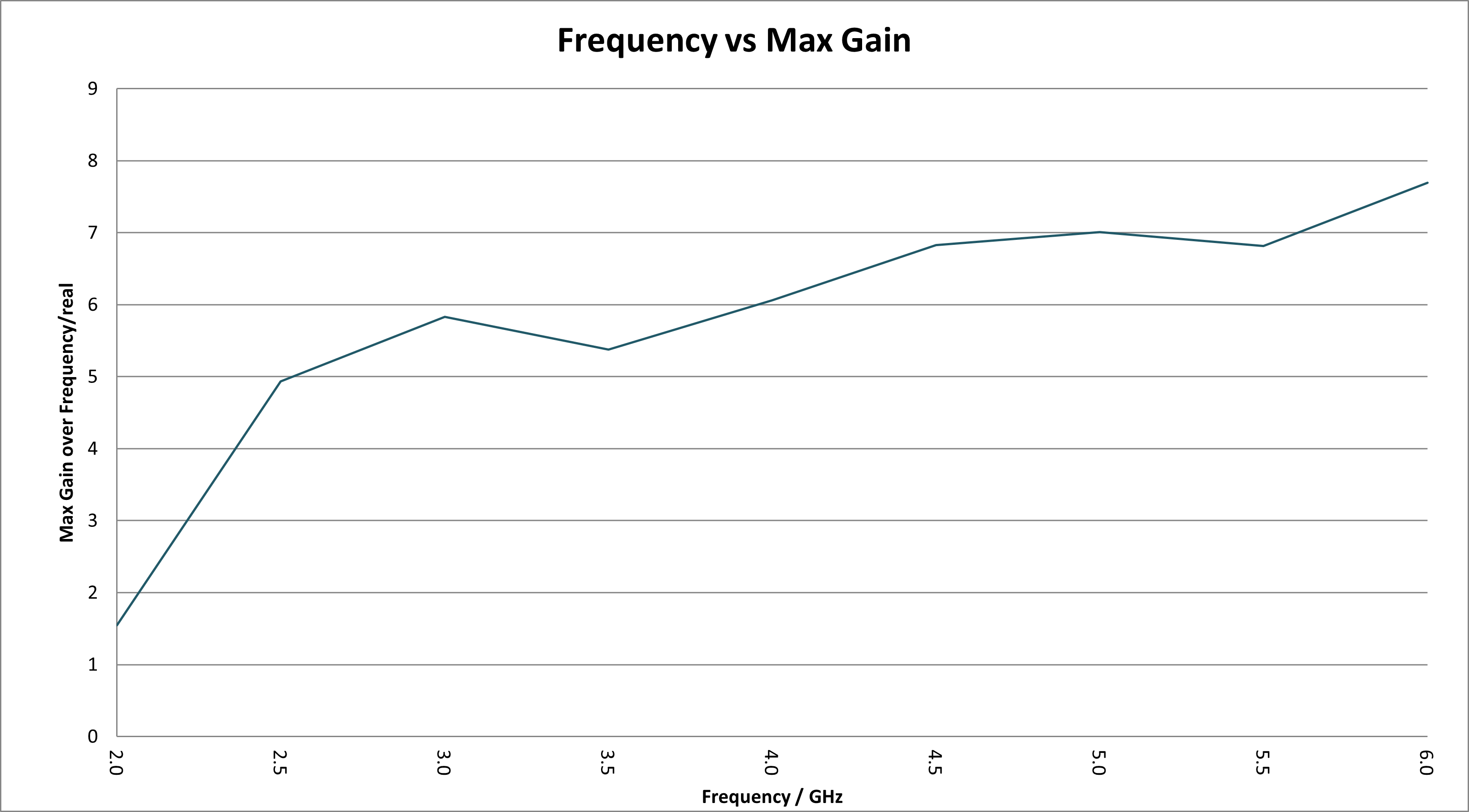

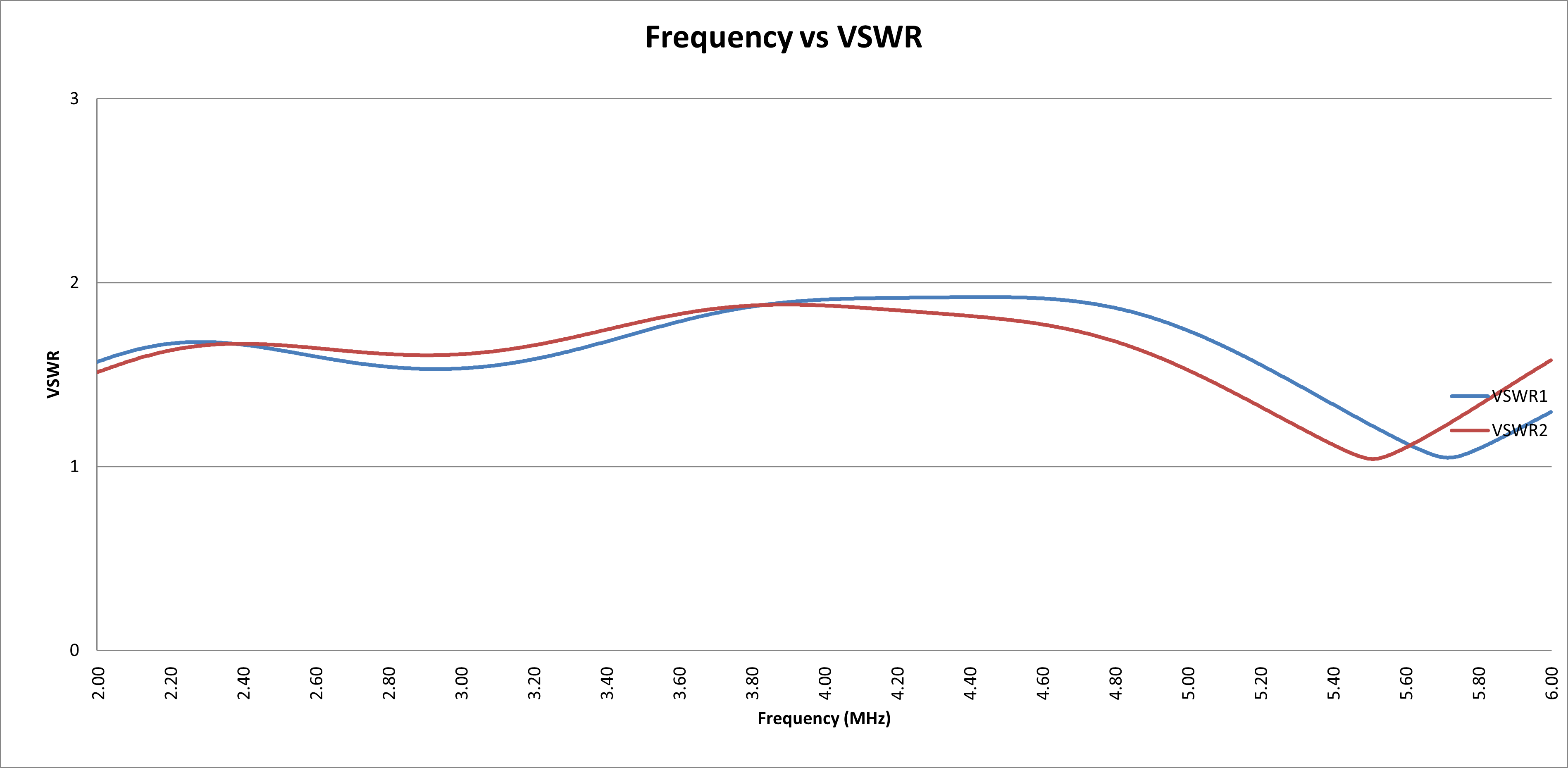

- Plot
- Reviews (0)
Description
The ODPA-2060-LEGO serves as a high-performance replacement for traditional Vivaldi antennas. It offers enhanced power handling capabilities of up to 100W, surpassing those of Vivaldi designs.This Dual Polarized Horn Antenna covers the L band, the ODPA-2060-LEGO can be used as low power radiators.Designed with an aperture matching that of the Vivaldi antenna, the ODPA-2060-LEGO ensures compatibility in existing systems. Moreover, its structure is optimized to minimize coupling and interference with neighboring antennas in array configurations. The antenna is available with SMA connectors.
ODPA-2060-LEGO |
|
|
1.5-7.5 dBi Gain, 2GHz to 6GHz, Dual Polarized Horn Antenna ODPA-2060-LEGO |
|
Property |
Value |
|
Min. Frequency (GHz) |
2 |
|
Max. Frequency (GHz) |
6 |
|
Gain (dBi) |
1.5-7.5 |
|
Impedance (Ohm) |
50 |
|
Connector |
SMA Connectors |
|
VSWR |
1.5Typ. |
Features |
|
|
Low return loss / VSWR |
|
|
High Power Handling Capability |
|
|
Wide bandwidth, less in size and weight |
|
|
The characteristics of the neighboring antenna are not affected in the antenna array |
|
|
Aperture is the same size as vivaldi antenna which makes it suitable for antenna array |
|
Applications |
|
|
EMC, 5G communication testing |
|
|
Suitable for high-precision applications |
|
|
Applicable for Radar system, Antenna characterization and measurments |
|
