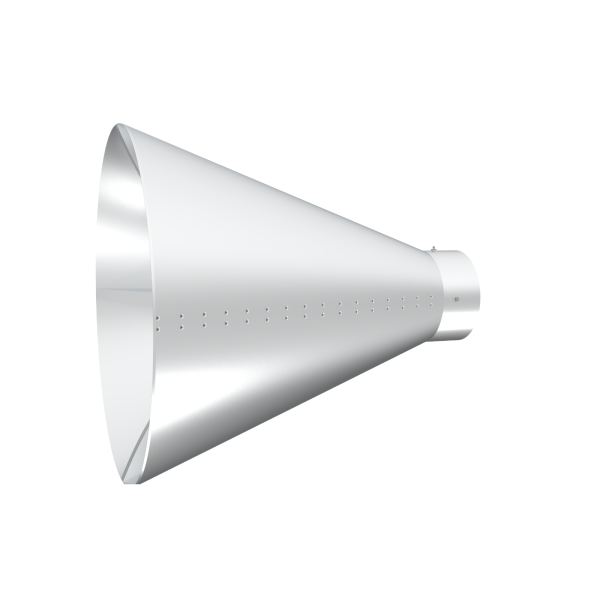

0.6 to 2GHz,11 to 18dBi Gain, Dual Polarized Horn Antenna ODPA-0620-15
Frequency Range: 0.6 GHz to 2 GHz
Gain: 11 dBi to 18 dBi
VSWR: 2Typ.
Impedance: 50Ohm
Connector Type: N Type
Power handling: 500W
Cross Polar Isolation: -30 dBTyp.
Dual Polarized Horn Antenna is suitable for high-precision applications.
- Description
- Datasheet

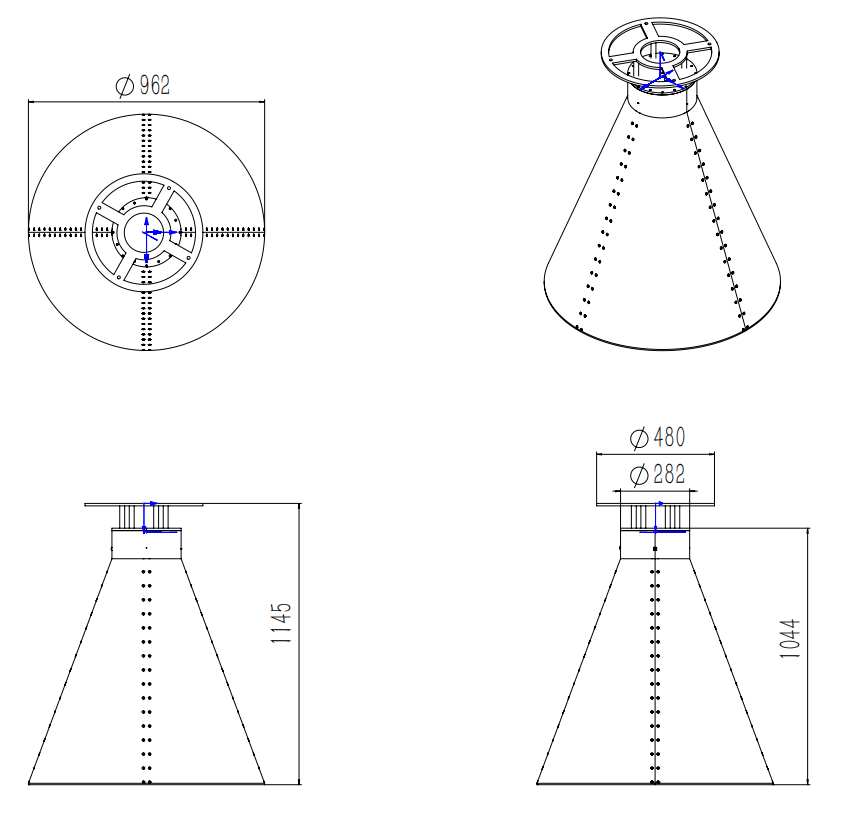

- Outline

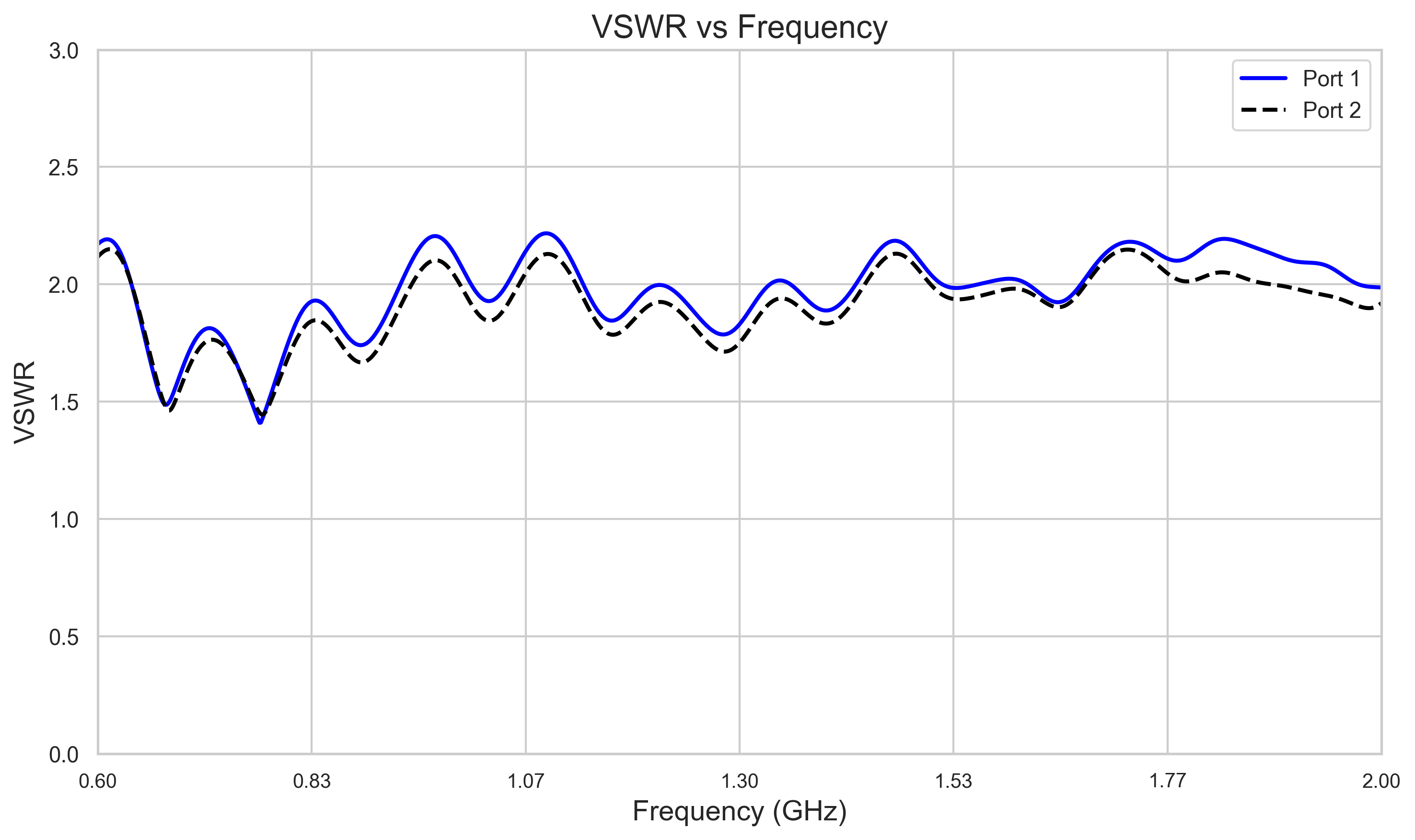

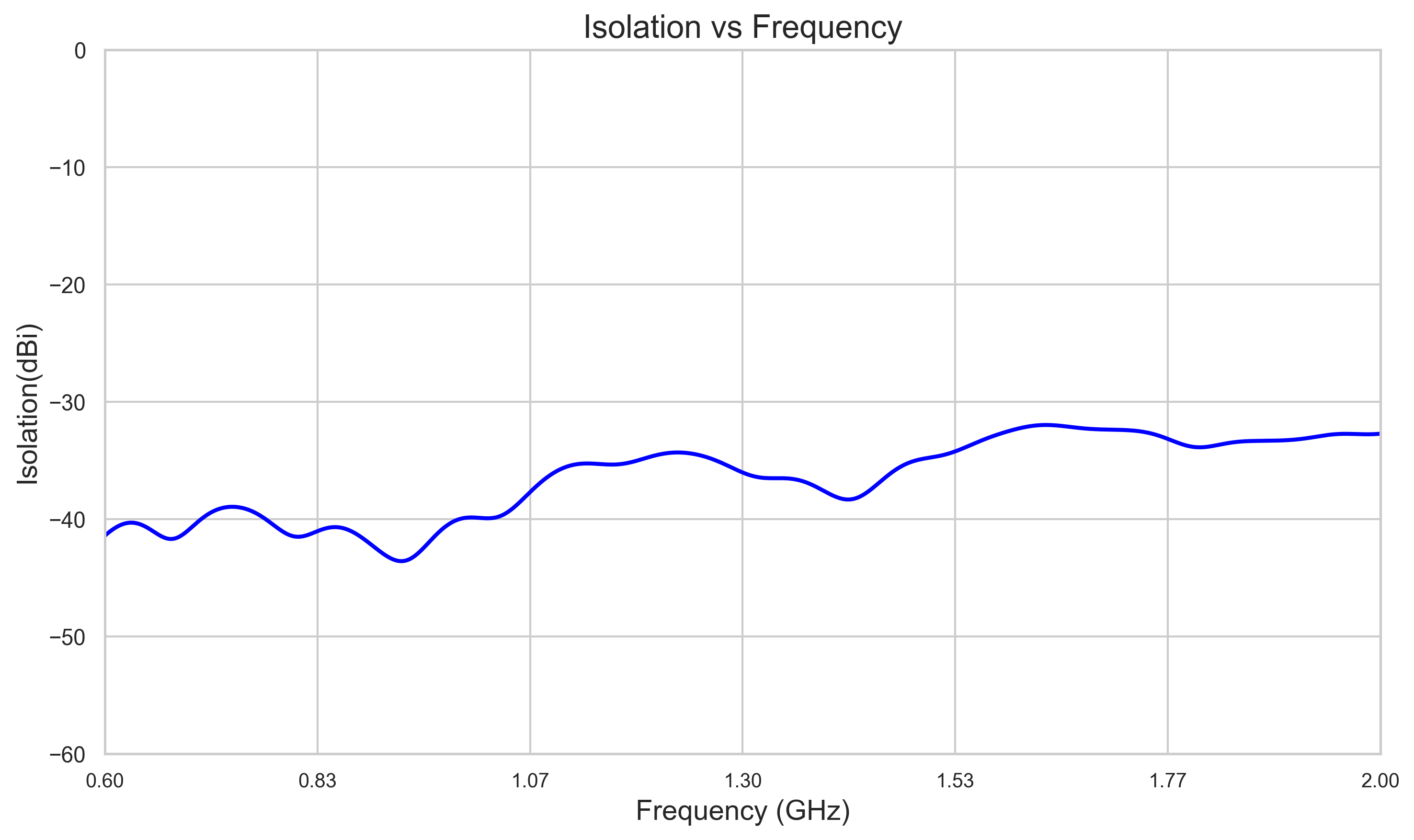

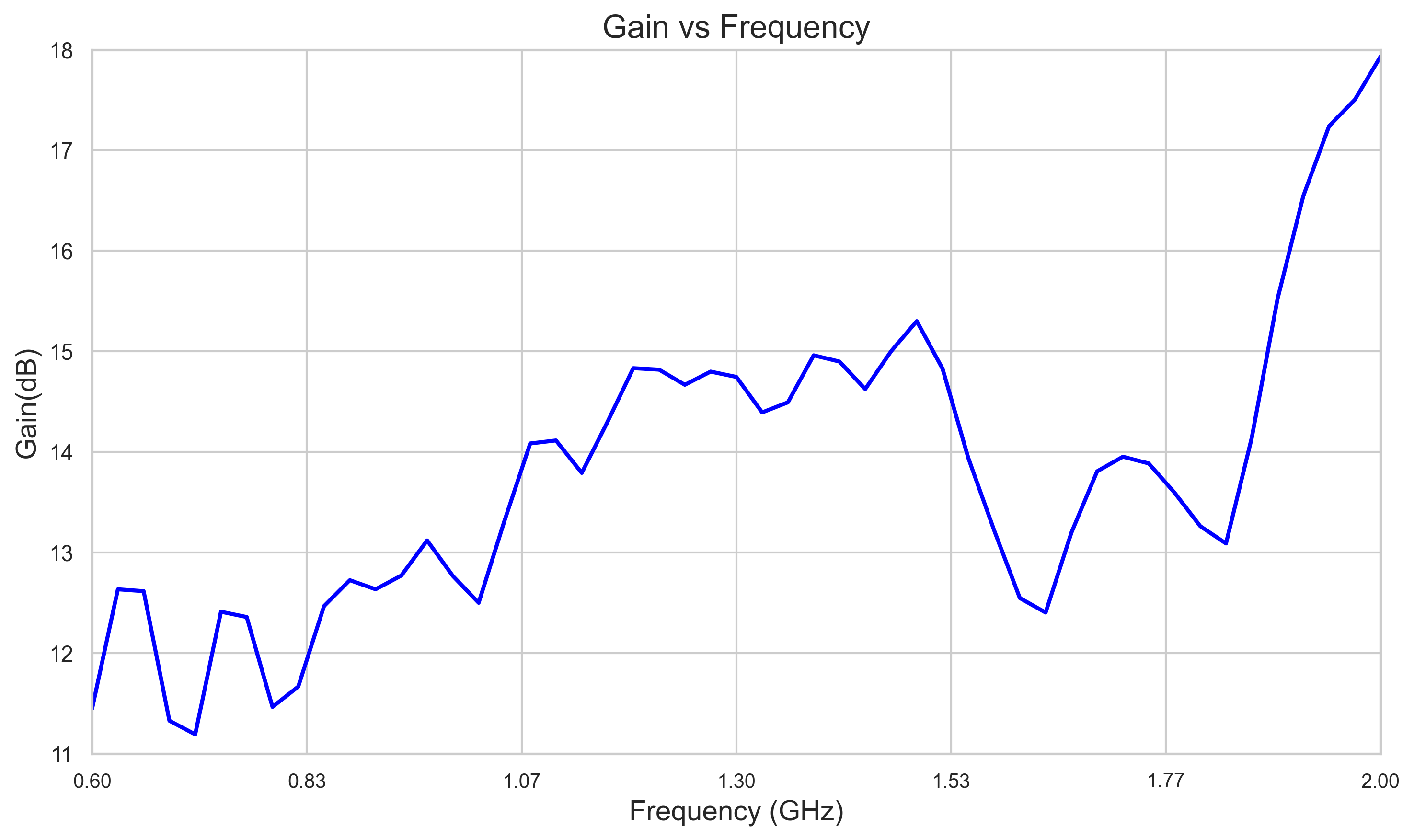

- Plot
- Reviews (3)
Description

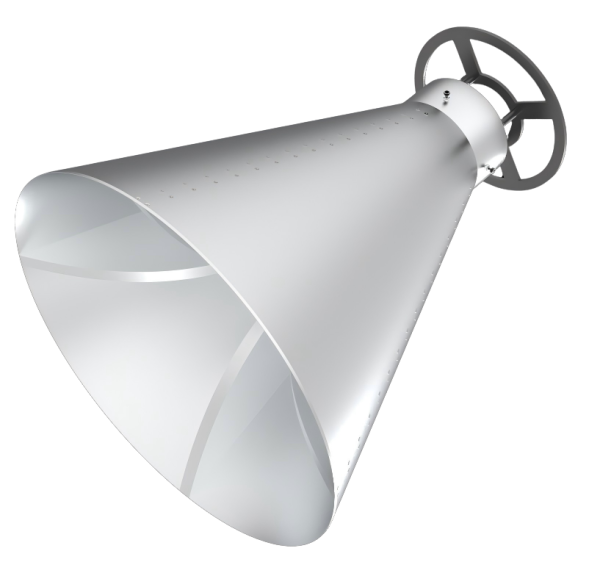

This RFecho quad ridged Antenna with dual-polarization covers the frequency range from 0.6 GHz to 2 GHz and is designed for the measurement of antennas in the MW range. This Dual Polarized Horn Antenna covers the L band, the ODPA-6020-15 can be used as low power radiators. with a maximum continuous power handling capability of 500W.
Good structural stability guarantees cross-polarization isolation is better than 30dB.
Dual Polarized Horn Antenna having the gain from 11 dBi to 18 dBi and the VSWR of 2Typ..
ODPA-0620-15 | |
| 0.6 to 2GHz,11 to 18dBi Gain, Dual Polarized Horn Antenna ODPA-0620-15 | |
Property | Value |
| Min. Frequency (GHz) | 0.6 |
| Max. Frequency (GHz) | 2 |
| Gain (dBi) | 11-18 |
| Impedance (Ohm) | 50 |
| Maximum Continuous Power | 500 Watts |
| Connector | N-Type |
| VSWR | 2Typ. |
| Cross Polar Isolation (dBi) | -30Typ. |
| Band Type | L Band |
Features | |
| L Band | |
| Low VSWR | |
| High power handling | |
| Good structural stability | |
Applications | |
| Suitable for high-precision applications | |
| Used for Radar cross-section and testing applications | |
| Designed for the measurement of antennas in the MW range | |
