This RFecho quad ridged  Antenna with dual-polarization covers the frequency range from 1GHz to 2 GHz and is designed for the measurement of antennas in the MW range. This Dual Polarized Horn Antenna covers the L-band,  the ODPA-1020 can be used as low power radiators.  with a maximum continuous power handling capability of 200W.

Good structural stability guarantees cross-polarization isolation is better than 30dB.

Two connectors input permit simultaneous measurements for both horizontal and vertical polarizations for linearly polarized waves.  Dual Polarized Horn Antenna having the gain from 14 dBi to 17 dBi and the VSWR of <2.0:1.

Used for Radar cross-section and testing applications.

Description

This RFecho quad ridged  Antenna with dual-polarization covers the frequency range from 1GHz to 2 GHz and is designed for the measurement of antennas in the MW range. This Dual Polarized Horn Antenna covers the L-band,  the ODPA-1020 can be used as low power radiators.  with a maximum continuous power handling capability of 200W.

Good structural stability guarantees cross-polarization isolation is better than 30dB.

Two connectors input permit simultaneous measurements for both horizontal and vertical polarizations for linearly polarized waves.  Dual Polarized Horn Antenna having the gain from 14 dBi to 17 dBi and the VSWR of <2.0:1.

Used for Radar cross-section and testing applications. More Rfecho RF Antenna.

SPEC

Dual Polarized Horn Antenna

1 GHz to 2 GHz,14 dBi to 17 dBi Gain, 30 dB Isolation, L band, 2 N-type Connectors, Dual Polarized Horn Antenna

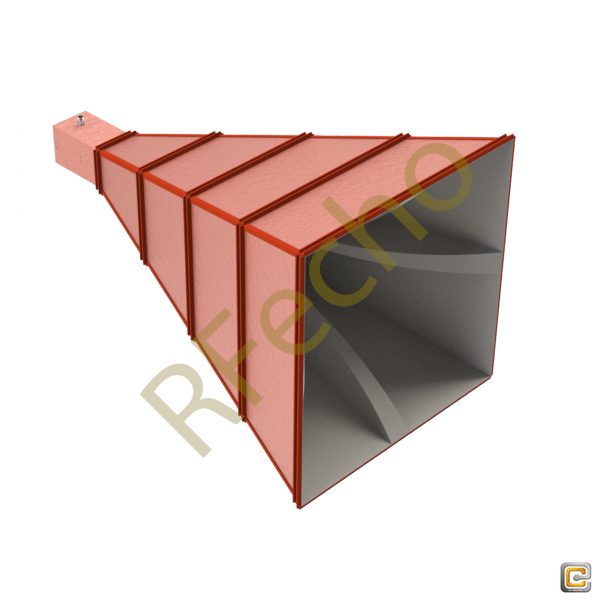

ODPA-1020 quad ridged horn antenna with two polarizations

Property

Value

Min. Frequency (GHz)

1

Max. Frequency (GHz)

2

Min. Gain (dBi)

14

Max. Gain (dBi)

17

VSWR (Max.)

2.0:1

Continuous Power (W) (Max.)

50

Impedance (?)

50

Connection Type

N type

Cross Polar Isolation (dB)

>30

Band Type

L band

PDF

Outline

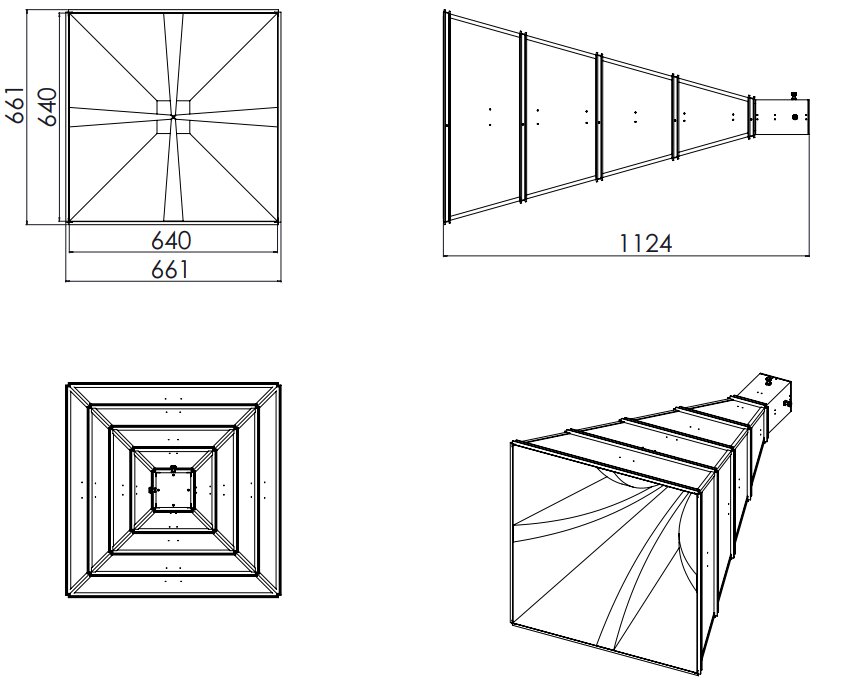

ODPA 1020 outline 1 GHz to 2 GHz, 14 dBi to 17 dBi Gain, 30 dB Isolation, L band, 2 SMA Connectors, Dual Polarized Horn Antenna

Plot

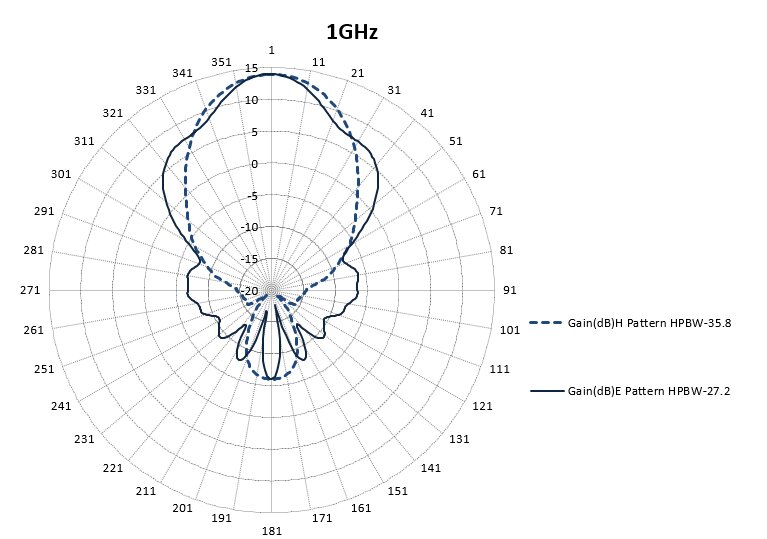

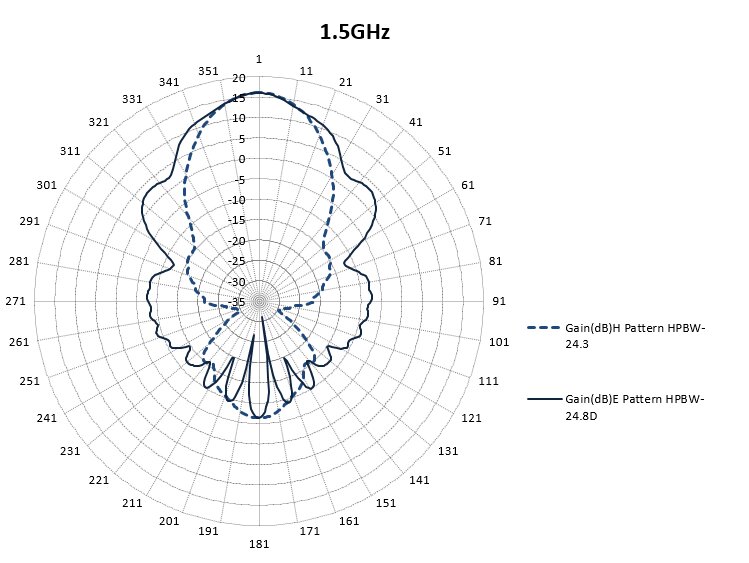

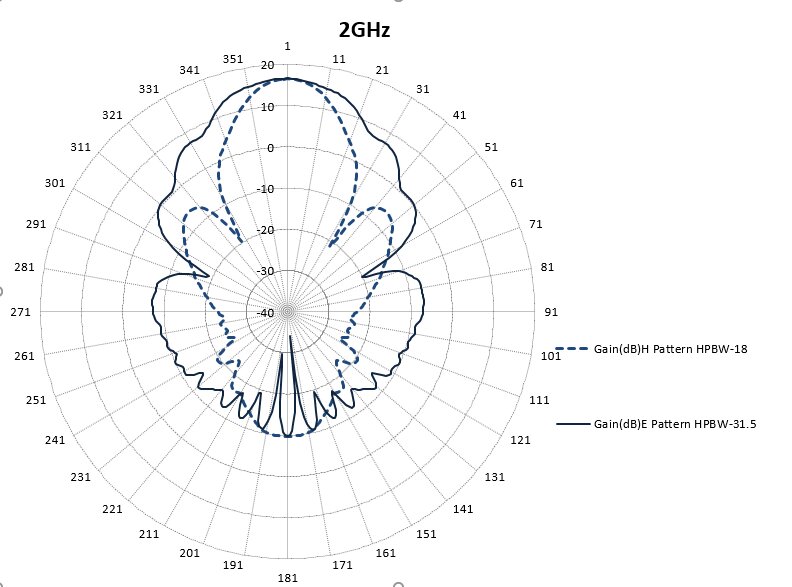

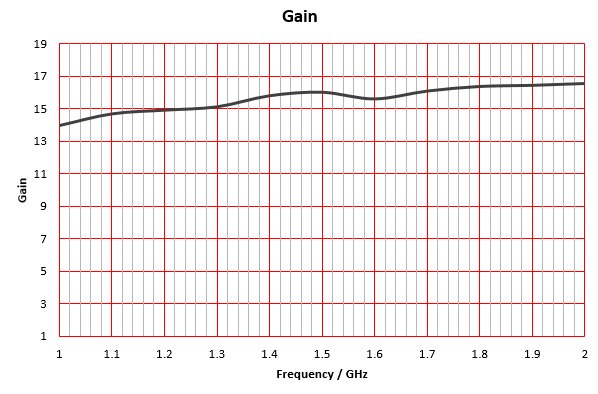

ODPA 1020 plot1 1 GHz to 2 GHz, 14 dBi to 17 dBi Gain, 30 dB Isolation, L band, 2 SMA Connectors, Dual Polarized Horn AntennaODPA 1020 plot2 1 GHz to 2 GHz, 14 dBi to 17 dBi Gain, 30 dB Isolation, L band, 2 SMA Connectors, Dual Polarized Horn AntennaODPA 1020 plot3 1 GHz to 2 GHz, 14 dBi to 17 dBi Gain, 30 dB Isolation, L band, 2 SMA Connectors, Dual Polarized Horn AntennaODPA 1020 plot4 1 GHz to 2 GHz, 14 dBi to 17 dBi Gain, 30 dB Isolation, L band, 2 SMA Connectors, Dual Polarized Horn Antenna

Additional information

Min. Frequency (GHz)

1

Max. Frequency (GHz)

2

Min. Gain (dBi)

Max. Gain (dBi)

Continuous Power (W) (Max.)

Band Type

Connection Type

Impedance (Ω)

Cross Polar Isolation (dB)
