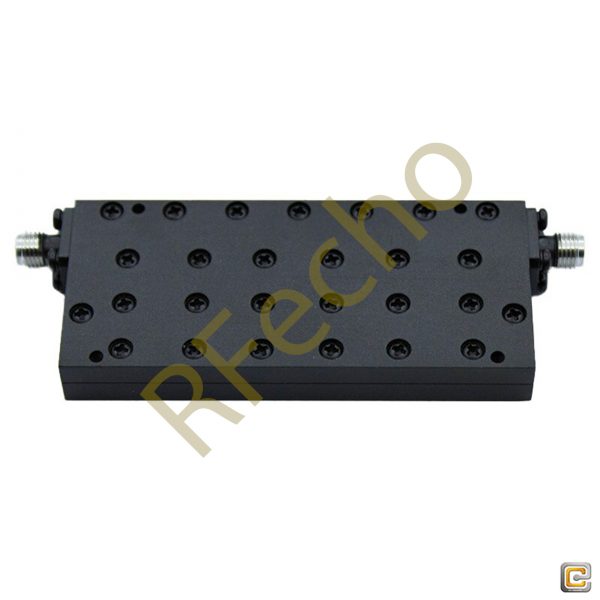

High Pass Cavity RF Filter 1.5GHz to 8GHz Passive Microwave High Pass Filter rejection ≥ 60dB @ DC~1.28GHz with SMA Female Connector

High Pass Cavity RF Filter model OHP: 1500-8000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This High Pass Cavity RF Filter Manufactured with a passband frequency from 1.5GHz to 8GHz and a Cut-off frequency 1.25GHz. Our Passive Microwave High Pass Filter provides a nominal insertion loss of ≤2.0dB @ 1.5GHz – 1.65GHz | ≤1.0dB @ 1.65GHz – 8GHz across its passband and a typical rejection of ≥60dB @ DC – 1.28GHz. Since the high end cutoff frequency of High Pass Cavity RF Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Passive Microwave High Pass Filter has Passband VSWR of ≤1.5:1 and power handling of ≤15W. High Pass Cavity RF Filter is manufactured with SMA Female Connector and Net weight of 0.07Kg.
1.5GHz to 8GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 1.5GHz to 8GHz High Pass Cavity RF Filter is ready for shipping worldwide after purchase. Additional specs of this Passive Microwave High Pass Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OHP-1500-8000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Cavity Filter – OHP-1500-8000:

  • Cut Off Frequency: 1.25GHz,
  • Pass Band Frequency:  1.5-8GHz,
  • Pass Band Insertion Loss: 2.0dB,
  • Pass Band VSWR: 1.5,
  • Rejection: ≥60 dB @ DC -1.28 GHz.

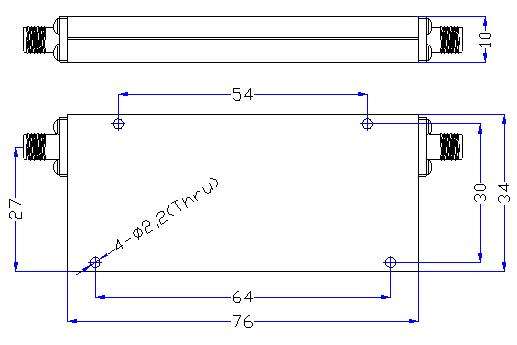

Additional information

Weight 0.07 kg
Min. Pass Band Frequency (GHz)

1.5

Max. Pass Band Frequency (GHz)

8

Connection Type

SMA-Female

Power Handling (W)

≤15

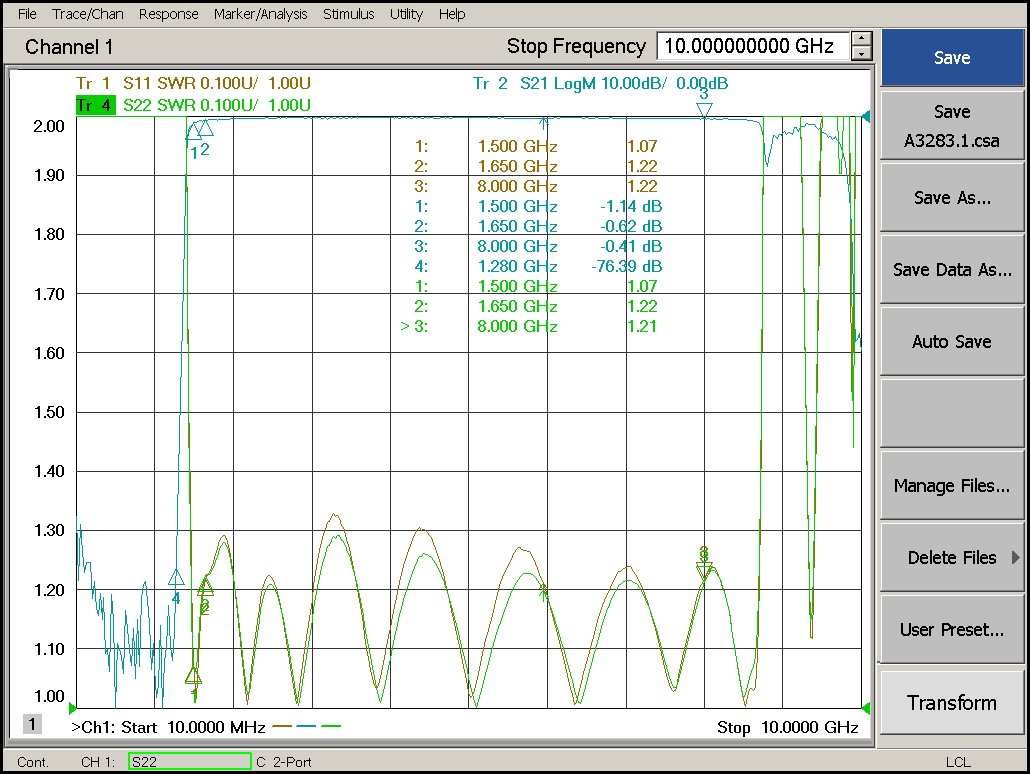

Insertion Loss

≤2.0dB @ 1.5 ~1.65GHz ≤1.0dB @ 1.65 ~8.0GHz

VSWR

≤1.5:1

Rejection

≥60 dB @ DC -1.28 GHz

Impedance (Ω)

50

Surface Finish

Guided Oxygen or Black Paint
