1.805 GHz to 1.88 GHz, 0.3 dB Insertion Loss, 21.0 dB Isolation, SMD Series Isolators Isolator-OG103D-1805-1880
Surface-mount design
Low insertion loss of 0.30dB
High isolation of 21dB
Wide operating temperature range from -40 to +105 degC
- Description
- Datasheet

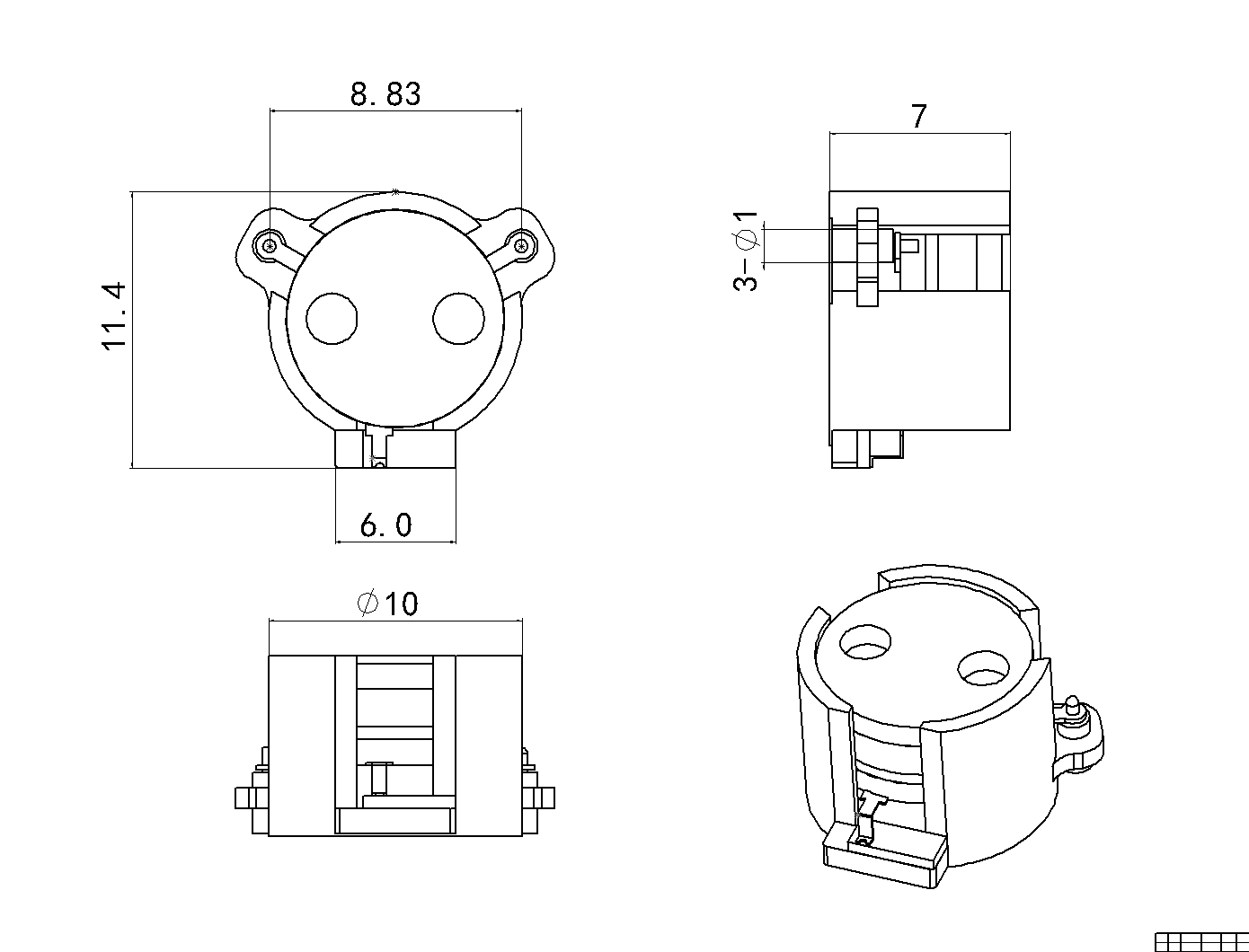

- Outline
- Reviews (0)
Description

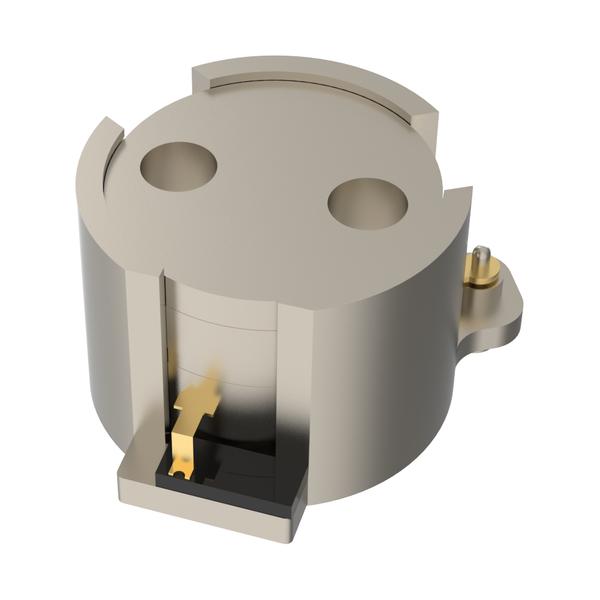

The product named OG103D-1805-1880 is high-performance stripline surface-mounted isolator designed for wireless infrastructure applications, offering low insertion loss and high isolation.
OG103D-1805-1880 | |
| 1.805 GHz to 1.88 GHz, 0.3 dB Insertion Loss, 21.0 dB Isolation, SMD Series Isolators Isolator-OG103D-1805-1880 | |
Property | Value |
| Frequency (MHz) | 1805-1880 |
| Return Loss (dB) | 21 |
| Isolation (dB) | 21 |
| Insertion Loss (dB) | 0.3 |
| IMD3 (dBc) | -55 |
| Power (W) | 2 |
| Operating Temp ( degC) | -40 to 105 |
Features | |
| Surface-mount design | |
| Low insertion loss of 0.30dB | |
| High isolation of 21dB | |
| Wide operating temperature range from -40 to +105 degC | |
Applications | |
| Designed for wireless infrastructure applications, offering low insertion loss and high isolation. | |
