3.3 GHz to 3.6 GHz, 0.35 dB Insertion Loss, 20.0 dB Isolation, SMD Series Isolators Isolator-OG102B-3300-3600
Surface-mount design for ease of integration
Stripline technology for consistent performance
High isolation up to 20dB
Low insertion loss down to 0.35dB
Wide operating temperature range from -40 to +125 degC
High power handling capability up to 50W Forward Power
- Description
- Datasheet

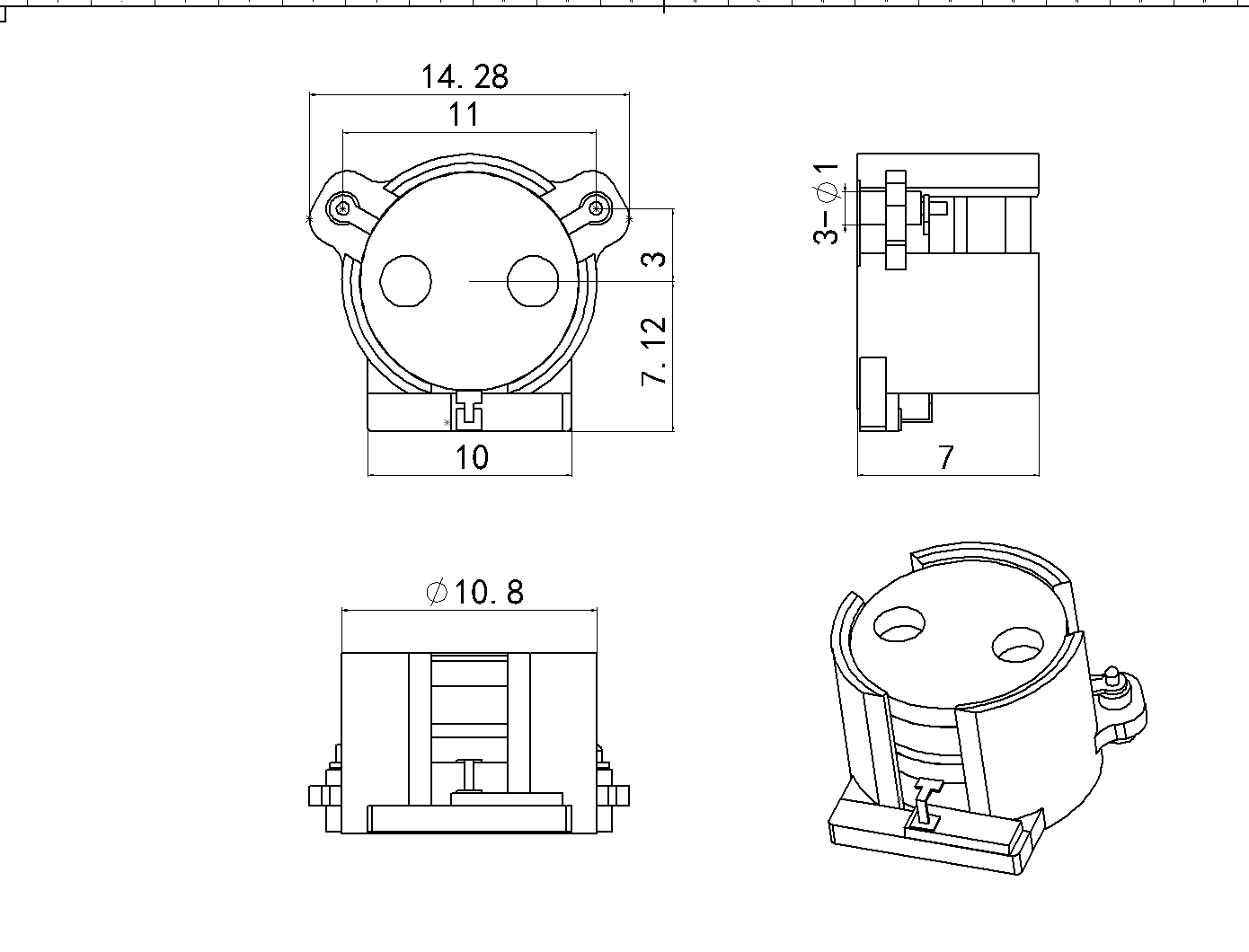

- Outline
- Reviews (0)
Description

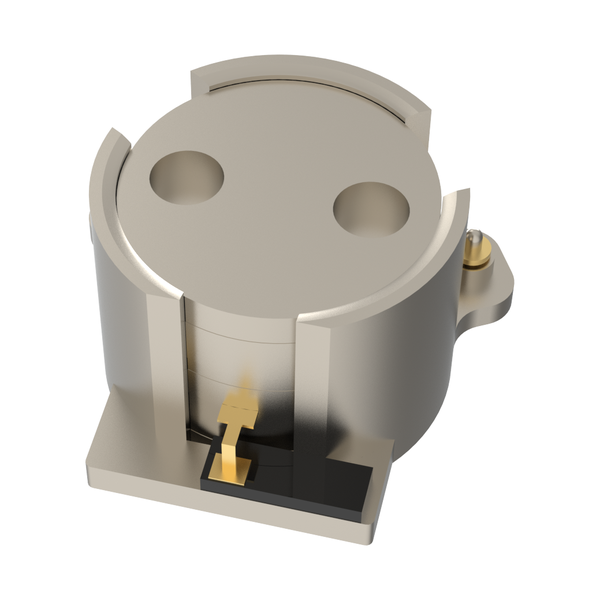

The product named OG102B is high-performance surface-mounted isolator designed for stripline applications, offering high isolation and low insertion loss across various frequency ranges.
OG102B-3300-3600 | |
| 3.3 GHz to 3.6 GHz, 0.35 dB Insertion Loss, 20.0 dB Isolation, SMD Series Isolators Isolator-OG102B-3300-3600 | |
Property | Value |
| Frequency (MHz) | 3300-3600 |
| Return Loss (dB) | 20 |
| Isolation (dB) | 20 |
| Insertion Loss (dB) | 0.35 |
| IMD3 (dBc) | -65 |
| Power (W) | 2 |
| Operating Temp ( degC) | -40 to 125 |
Features | |
| Surface-mount design for ease of integration | |
| Stripline technology for consistent performance | |
| High isolation up to 20dB | |
| Low insertion loss down to 0.35dB | |
| Wide operating temperature range from -40 to +125 degC | |
| High power handling capability up to 50W Forward Power | |
Applications | |
| Designed for wireless infrastructure applications, offering low insertion loss and high isolation. | |
