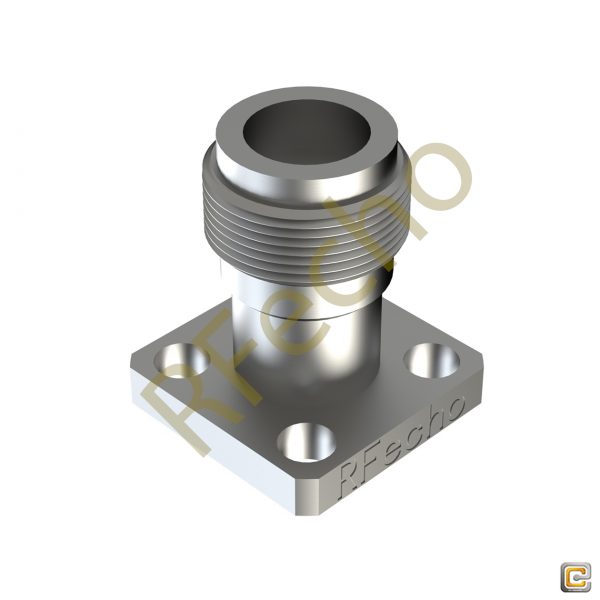

1.85mm 67 GHz, 0.009″ Accept Pin Diameter, 4 Hole 0.375″ Square Mounting Flange Female Connector
Model D180-P09-F02 is a Female connector. 1.85mm (V) Connectors are durable, operational temperature rating of -55°C to +165°C, offering well-matched impedance, excellent repeatability, having the low VSWR and RF leakage ≤ -100 dB.
1.85mm (V) Connectors offers the frequency range from DC to 67GHz. 1.85mm (V) Connectors have 4 Hole 0.375″ Square mounting. This model of 1.85mm (V) Connectors provide the Accept Pin Diameter of 0.009″ inches.
- Description
- Reviews (0)
Description
| 1.85mm (V) Connectors | |
| 1.85mm 67 GHz, 0.009″ Accept Pin Diameter, 4 Hole 0.375″ Square Mounting Flange Female Connector | |
| D180-P09-F02 | |
| Model D180-P09-F02 is a Female connector. 1.85mm (V) Connectors are durable, operational temperature rating of -55°C to +165°C, offering well-matched impedance, excellent repeatability, having the low VSWR and RF leakage ≤ -100 dB. 1.85mm (V) Connectors offers the frequency range from DC to 67GHz. 1.85mm (V) Connectors have 4 Hole 0.375″ Square mounting. This model of 1.85mm (V) Connectors provide the Accept Pin Diameter of 0.009″ inches. | |
| Property | Value |
| Min. Frequency (GHz) | DC |
| Max. Frequency (GHz) | 67 |

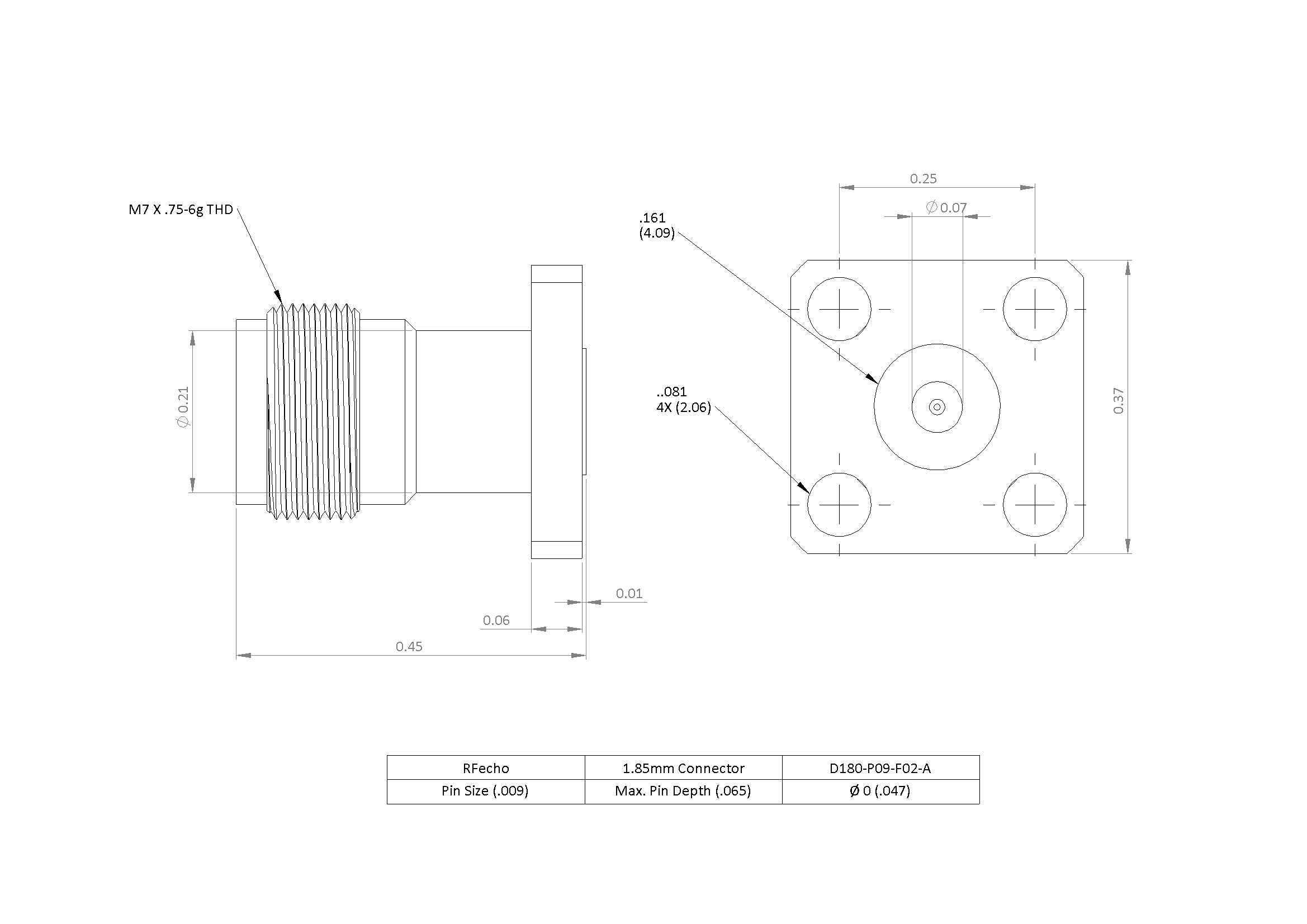

| Flange (inch) | 0.375″ Square |
| Mounting | 4 Hole |
| Accept Pin Diameter (inch) | 0.009″ |
| Gender | Female |
| Features | |
| Low VSWR | |
| Free through 67 GHz | |
| Applications | |
| Telecom Communication | |
| Sub-assemblies | |
| Radio equipment and instruments | |
| Wireless Communication | |
| Test Labs | |
| Instrumentations | |
