1.85mm 67 GHz, 0.012″ Accept Pin Diameter, 2 Hole 0.550″ Long Mounting Flange Female Connector

1.85mm 67 GHz, 0.012″ Accept Pin Diameter, 2 Hole 0.550″ Long Mounting Flange Female Connector

Model D180-P12-F05 is a Female connector. 1.85mm (V) Connectors are durable, operational temperature rating of -55°C to +165°C, offering well-matched impedance, excellent repeatability, having the low VSWR and RF leakage ≤ -100 dB.

1.85mm (V) Connectors offers the frequency range from DC to 67GHz. 1.85mm (V) Connectors have 2 Hole 0.550″ Long mounting. This model of 1.85mm (V) Connectors provide the Accept Pin Diameter of 0.012″ inches.

Description

SPEC

1.85mm (V) Connectors

1.85mm 67 GHz, 0.012″ Accept Pin Diameter, 2 Hole 0.550″ Long Mounting Flange Female Connector

D180-P12-F05

Model D180-P12-F05 is a Female connector. 1.85mm (V) Connectors are durable, operational temperature rating of -55°C to +165°C, offering well-matched impedance, excellent repeatability, having the low VSWR and RF leakage ≤ -100 dB.

1.85mm (V) Connectors offers the frequency range from DC to 67GHz. 1.85mm (V) Connectors have 2 Hole 0.550″ Long mounting. This model of 1.85mm (V) Connectors provide the Accept Pin Diameter of 0.012″ inches.

Property

Value

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

67

Flange (inch)

0.550″ Long

Mounting

2 Hole

Accept Pin Diameter (inch)

0.012″

Gender

Female

Features

Low VSWR

Free through 67 GHz

Applications

Telecom Communication

Sub-assemblies

Radio equipment and instruments

Wireless Communication

Test Labs

Instrumentations

PDF

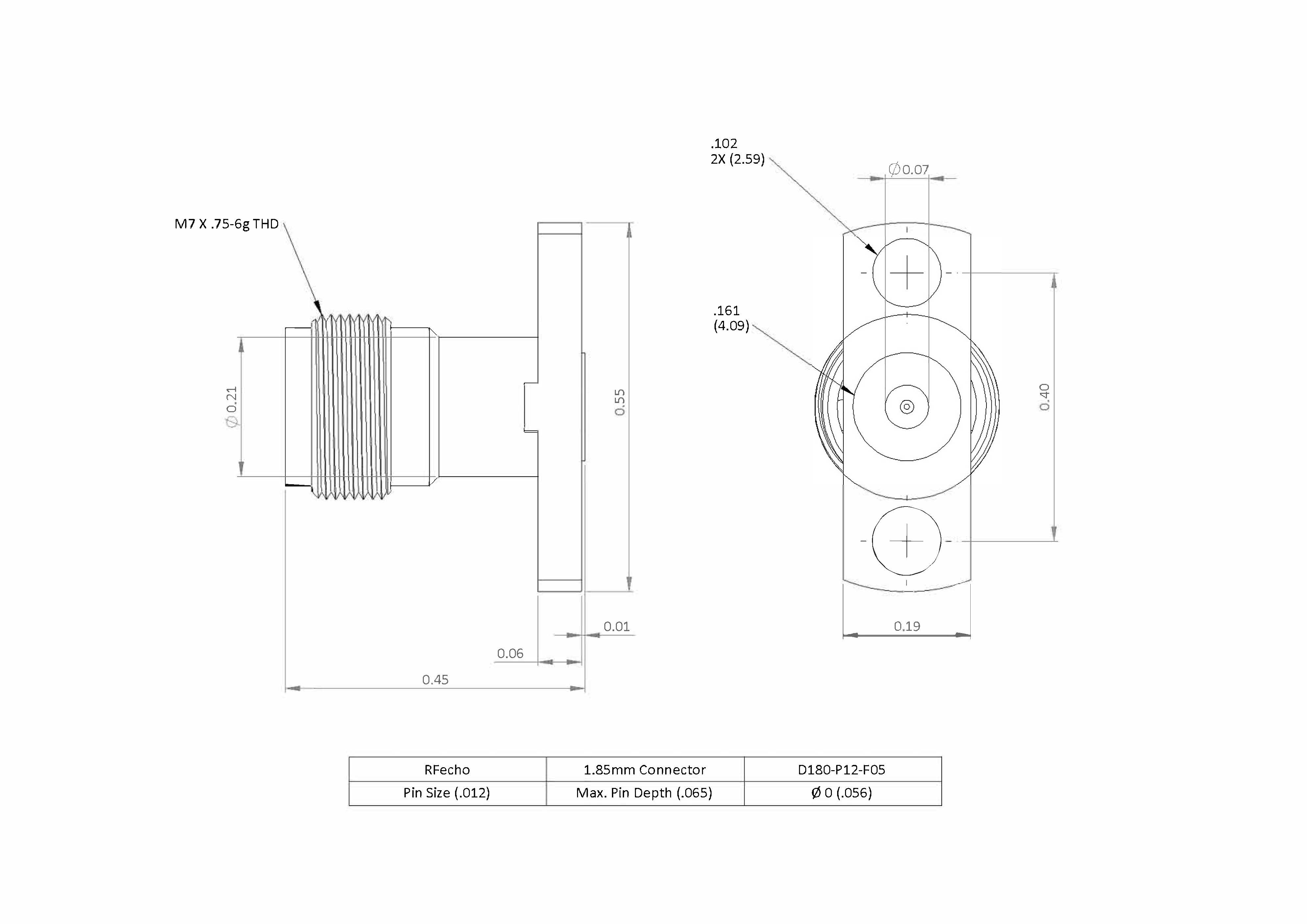

Outline

D180 P12 F05 outline 1.85mm 67 GHz, 0.012" Accept Pin Diameter, 2 Hole 0.550″ Long Mounting Flange Female Connector

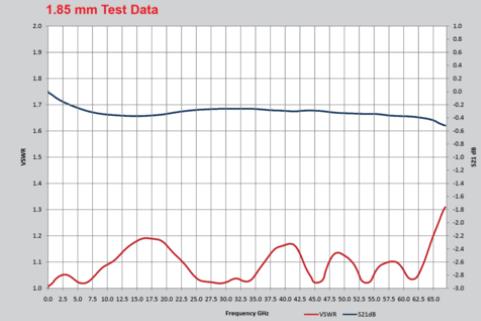

Plot

D180 P12 F05 plot1 1.85mm 67 GHz, 0.012" Accept Pin Diameter, 2 Hole 0.550″ Long Mounting Flange Female Connector

Additional information

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

67

Flange (inch)

Mounting

Accept Pin Diameter (inch)

Gender
