10GHz to 24GHz High Pass Cavity Filter rejection ≥ 60dB @ DC~9.17GHz High Pass Passive Filter with SMA Female Connector

10GHz to 24GHz High Pass Cavity Filter rejection ≥ 60dB @ DC~9.17GHz High Pass Passive Filter with SMA Female Connector

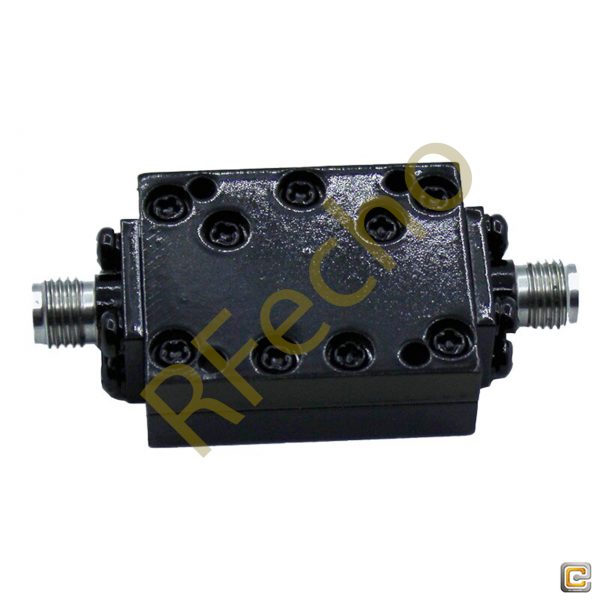

10GHz to 24GHz High Pass Cavity Filter model OHP: 10000-24000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This 10GHz to 24GHz High Pass Cavity Filter manufactured with a passband frequency from 10GHz to 24GHz and a Cut-off frequency 10GHz. Our High Pass Passive Filter provides a nominal insertion loss of ≤2.0dB @ 10GHz to 10.5GHz | ≤1.0dB @ 10.5GHz to 24GHz across its passband and a typical rejection of ≥60dB @ DC to 9.17GHz. Since the high end cutoff frequency of 10GHz to 24GHz High Pass Cavity Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This High Pass Passive Filter has Passband VSWR of ≤1.5:1 @ 10GHz to 20GHz | ≤ 1.8:1 @ 20GHz to 24GHz and power handling of ≤15W. 10GHz to 24GHz High Pass Cavity Filter is manufactured with SMA Female Connector and Net weight of 0.021Kg. 10GHz to 24GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 10GHz to 24GHz High Pass Cavity Filter is ready for shipping worldwide after purchase. Additional specs of this High Pass Passive Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OHP-10000-24000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Filter (OHP) – OHP-10000-24000:

  • Cut Off Frequency: 10.0GHz,
  • Pass Band Frequency: 10-24GHz,
  • Pass Band Insertion Loss: 2.0dB,
  • Pass Band VSWR: 1.8,
  • Rejection: ≥60 dB @ DC- 9.17 GHz.

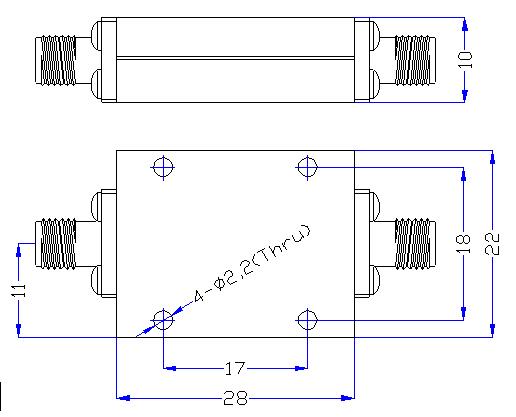

Outline

10.0 GHz to 24 GHz Rejection ≥60 dB @ DC- 9.17 GHz High Pass Cavity Filter 01

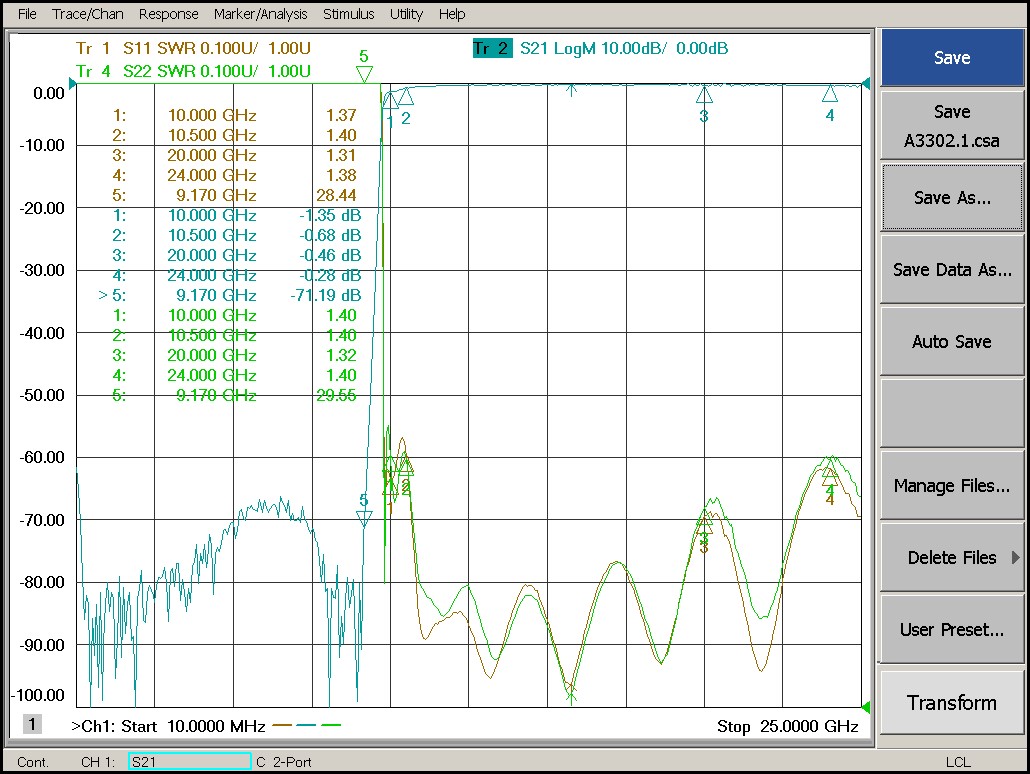

Plot

10.0 GHz to 24 GHz Rejection ≥60 dB @ DC- 9.17 GHz High Pass Cavity Filter 02

PDF

Additional information

Weight 0.021 kg
Min. Pass Band Frequency (GHz)

10.0

Max. Pass Band Frequency (GHz)

24

Connection Type

SMA-Female

Power Handling (W)

≤15

Insertion Loss

≤2.0dB @10~ 10.5GHz ≤1.0dB @ 10.5 ~ 24GHz

VSWR

≤1.5:1 @ 10~ 20GHz ≤1.8:1 @ 20~ 24GHz

Rejection

≥60 dB @ DC- 9.17 GHz

Impedance (Ω)

50

Surface Finish

Guided Oxygen or Black Paint
