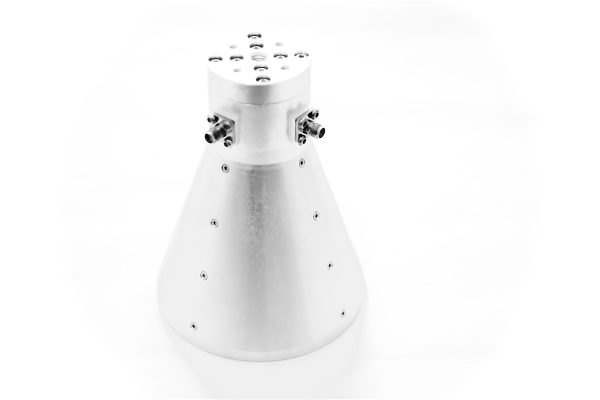

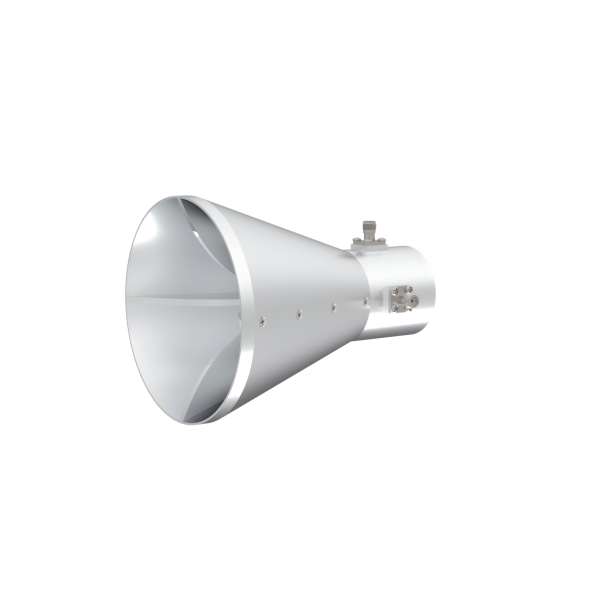

11-16 dBi Gain, 6GHz to 18GHz, Dual Polarized Horn Antenna ODPA-60180-C
$0
Frequency Range: 6 GHz to 18 GHz
Gain: 11-16 dBi
VSWR: 1.5Typ.
Impedance: 50Ohm
Connector Type: SMA Connector
Power handling: 100W
Dual Polarized Horn Antenna is suitable for high-precision applications.
- Description
- Datasheet

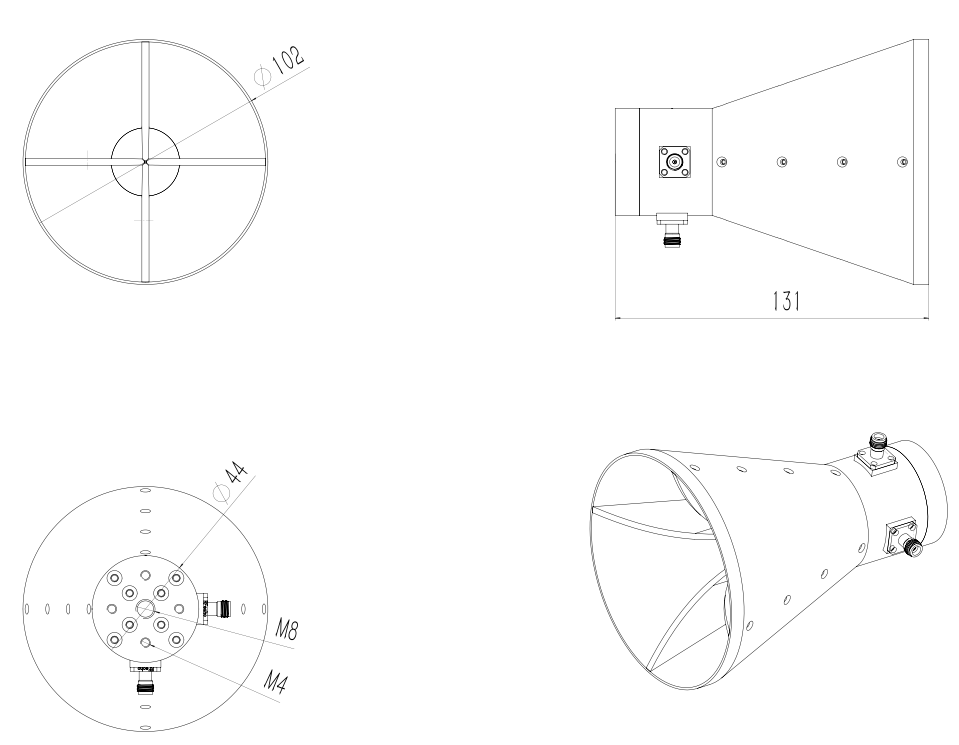

- Outline

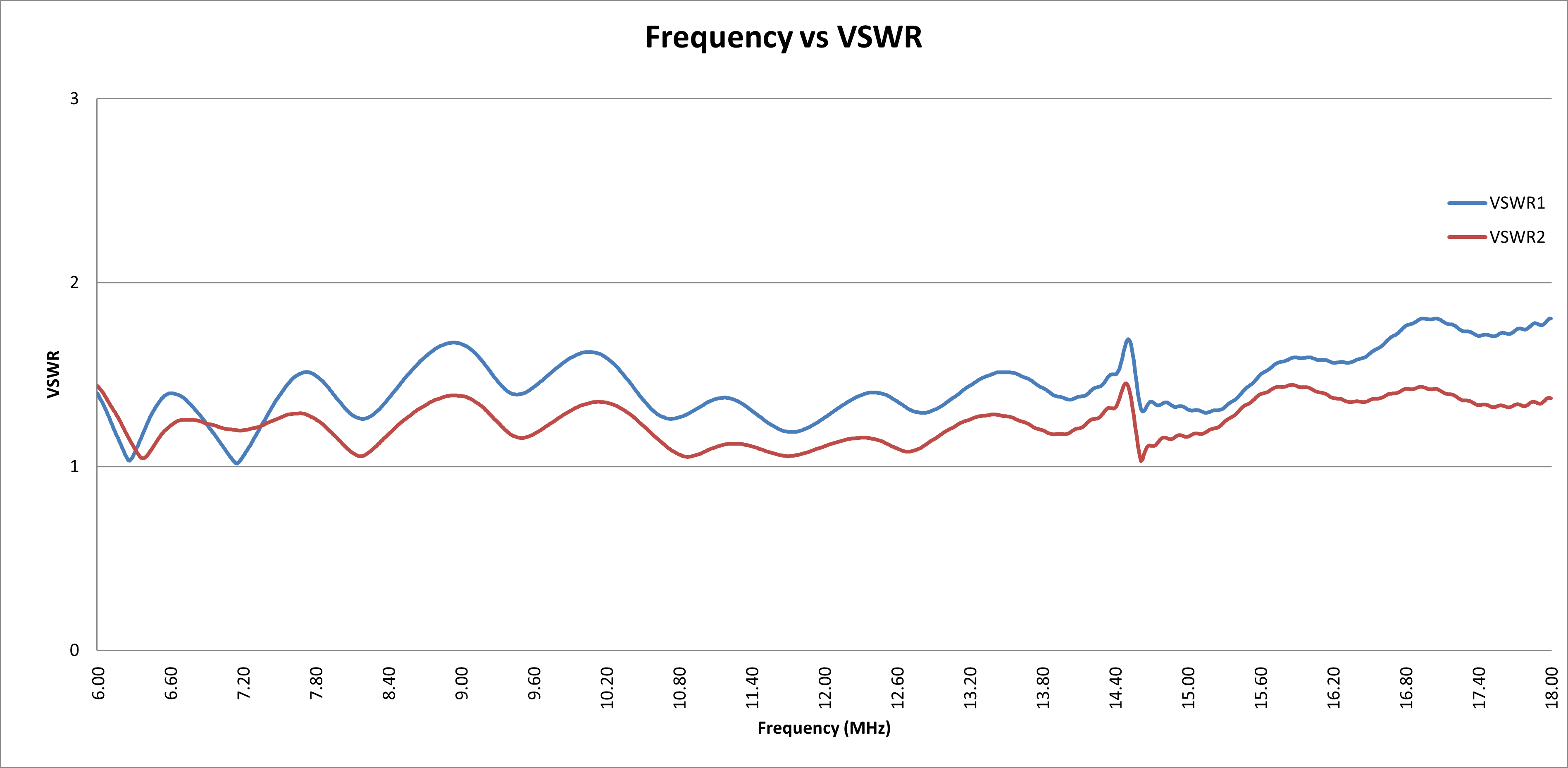

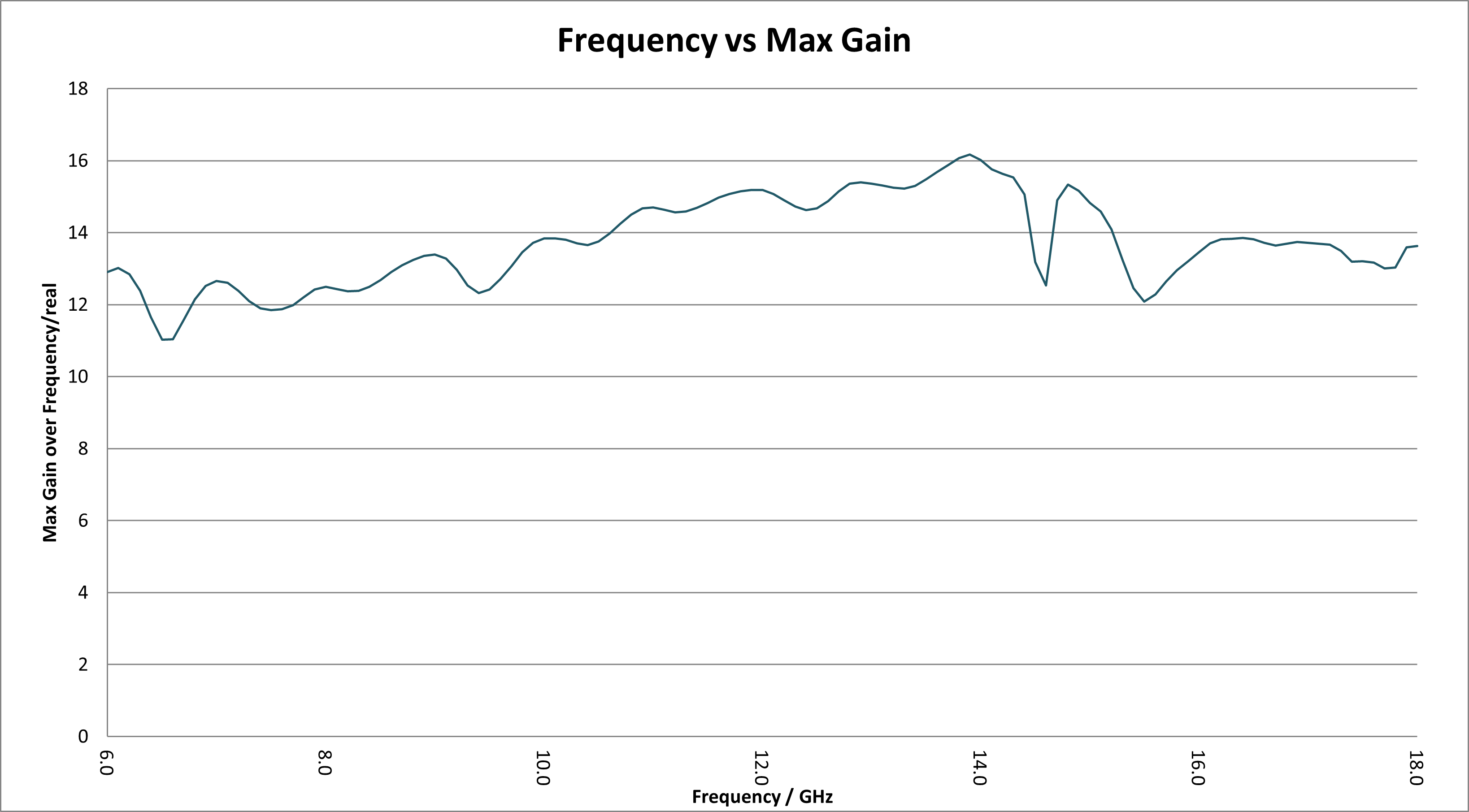

- Plot
- Reviews (0)
Description
This RFecho quad ridged Antenna with dual-polarization covers the frequency range from 6 GHz to 18 GHz and is designed for the measurement of antennas in the MW range. This Dual Polarized Horn Antenna covers the C、X and Ku band, the ODPA-60180-C can be used as low power radiators.With a maximum continuous power handling capability of 100W.
Dual Polarized Horn Antenna having the gain from 11 dBi to 16 dBi and the VSWR of 1.5Typ..
ODPA-60180-C |
|
|
11-16 dBi Gain, 6GHz to 18GHz, Dual Polarized Horn Antenna ODPA-60180-C |
|
Property |
Value |
|
Min. Frequency (GHz) |
6 |
|
Max. Frequency (GHz) |
18 |
|
Gain (dBi) |
11-16 |
|
Impedance (Ohm) |
50 |
|
Connector |
SMA Connectors |
|
VSWR |
1.5Typ. |
Features |
|
|
Low return loss / VSWR |
|
|
High Power Handling Capability |
|
|
Wide bandwidth, less in size and weight |
|
|
The characteristics of the neighboring antenna are not affected in the antenna array |
|
|
Aperture is the same size as vivaldi antenna which makes it suitable for antenna array |
|
Applications |
|
|
EMC, 5G communication testing |
|
|
Suitable for high-precision applications |
|
|
Applicable for Radar system, Antenna characterization and measurments |
|
