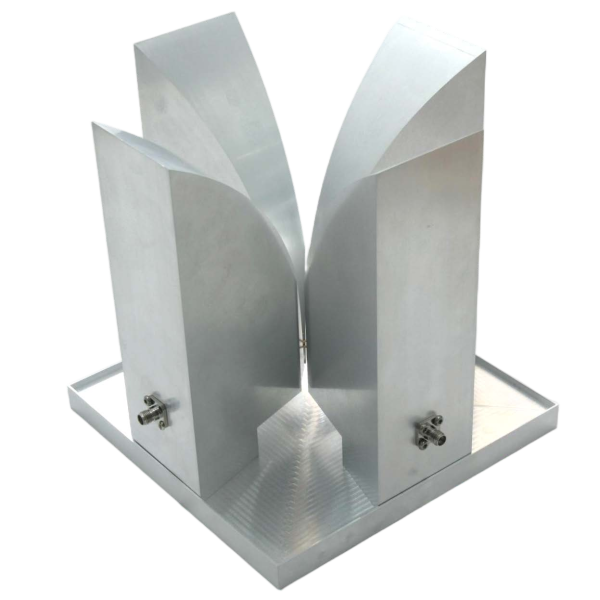

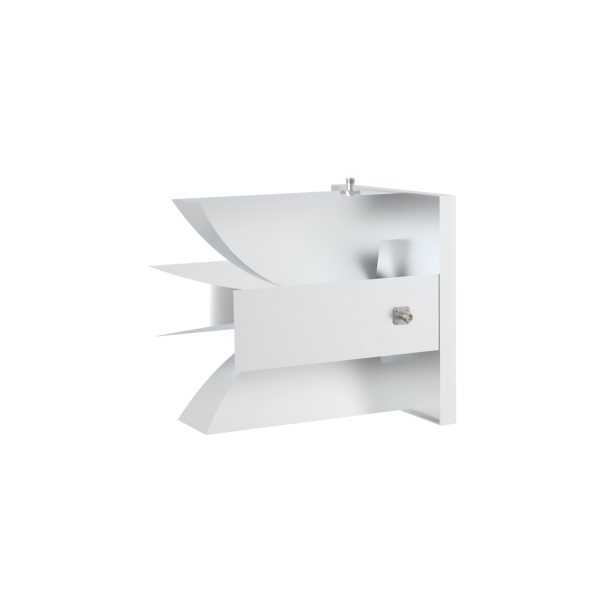

1.5-7.8dBi Gain, 0.6GHz to 2GHz, Dual Polarized Horn Antenna
Frequency range: 0.6GHz to 2GHz
Gain: 1.5-7.8dBi
Impedance: 50Ohm
Connector Type: 2xSMA/2xN-Type
VSWR: 2:1 Typ.
Maximum Continuous Power：1400W with N-Type
The ODPA-0620-LEGO offers flexibility for various testing setups
- Description
- Datasheet

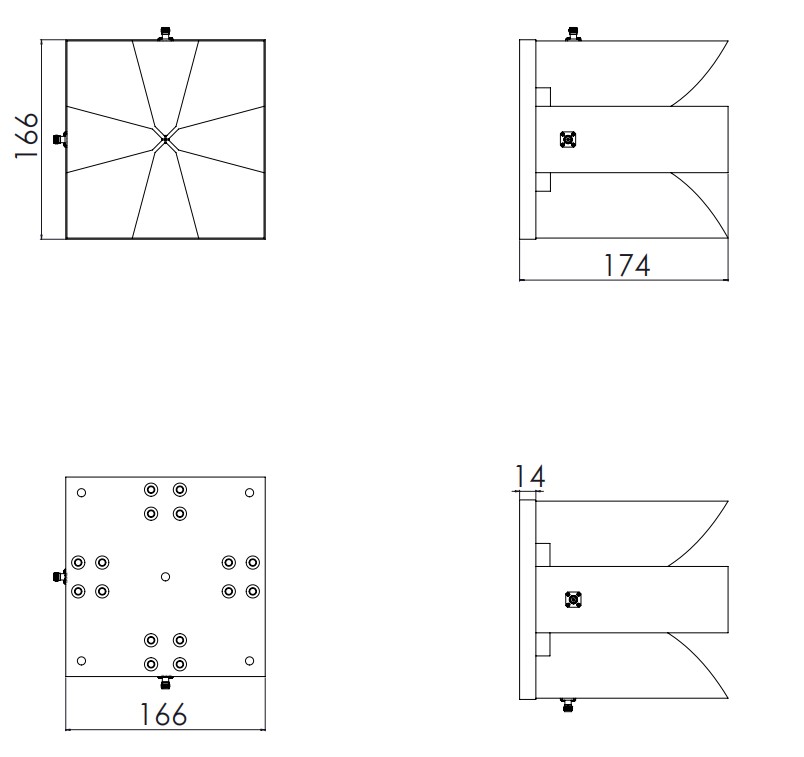

- Outline
- Plot
- Reviews (0)
Description

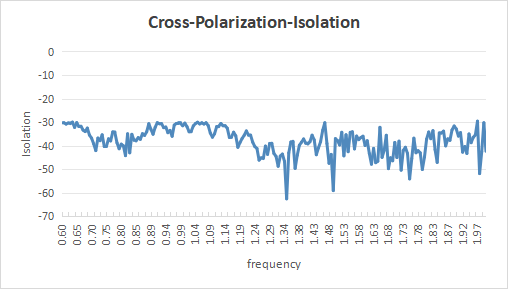

The ODPA-0620-LEGO serves as a high-performance replacement for traditional Vivaldi antennas. It offers enhanced power handling capabilities of up to 1400W, surpassing those of Vivaldi designs. One of its key advantages is high cross-polarization isolation, consistently exceeding 30 dB, which significantly improves measurement accuracy.Designed with an aperture matching that of the Vivaldi antenna, the ODPA-0620-LEGO ensures compatibility in existing systems.Moreover, its structure is optimized to minimize coupling and interference with neighboring antennas in array configurations.Performance testing confirms that the isolation between the two test ports of the ODPA-0620-LEGO remains better than 30 dB. The antenna is available with both SMA and NType connectors, offering flexibility for various testing setups.
ODPA-620 |
|
|
6-7.8 dBi Gain, 0.6GHz to 2GHz, Dual Polarized Horn Antenna ODPA-620 |
|
Property |
Value |
|
Min. Frequency (GHz) |
0.6 |
|
Max. Frequency (GHz) |
2 |
|
Gain (dBi) |
1.5-7.8 |
|
Impedance (Ohm) |
50 |
|
Connector |
2 SMA/ 2 N-Type |
|
VSWR |
2:1 Typ. |
|
Maximum Continuous Power （W) |
1400 |
Features |
|
|
Low return loss / VSWR |
|
|
High Power Handling Capability |
|
|
Wide bandwidth, less in size and weight |
|
|
The characteristics of the neighboring antenna are not affected in the antenna array |
|
Applications |
|
|
Most suitable antenna for the antenna array0.6-2GHz |
|
|
Applicable for Radar system, Antenna characterization and measurments |
|
|
EMC, 5G communication testing |
|
