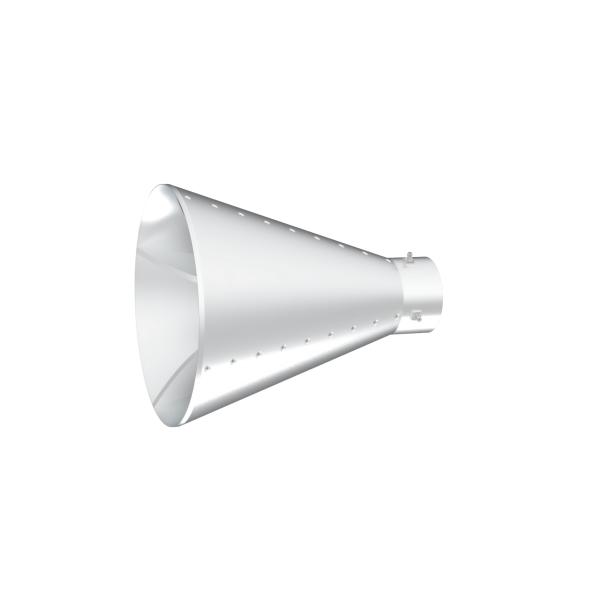

2GHz to 6GHz, Dual Polarized Horn Antenna ODPA-2060-C
Frequency Range: 2 GHz to 6 GHz
Gain: 11-16dBi
VSWR: 1.5Typ.
Impedance: 50Ohm
Connector Type: 2xN or 2xSMA Connector
Dual Polarized Horn Antenna is suitable for high-precision applications.
- Description

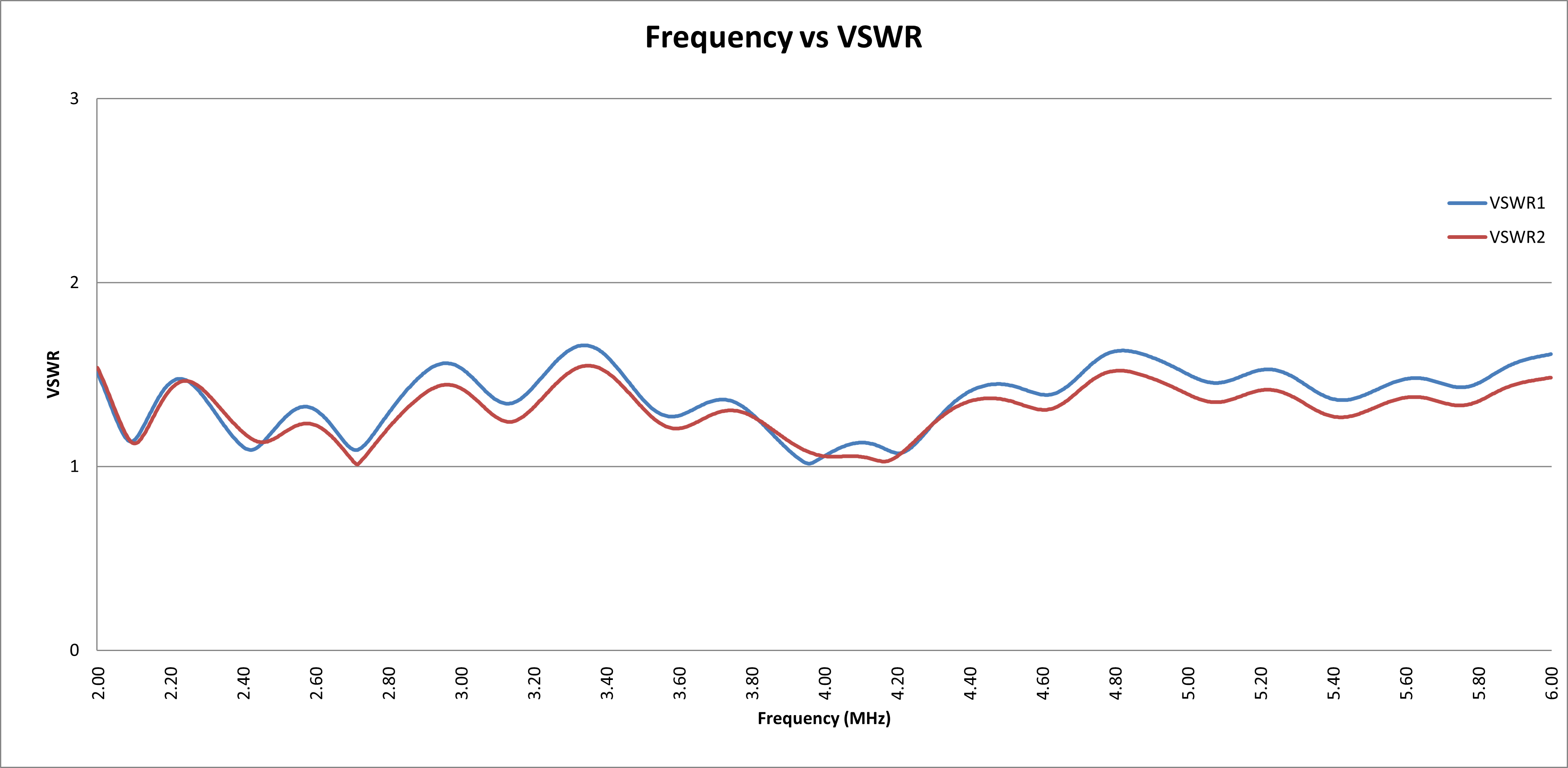

- Plot
- Reviews (1)
Description
The ODPA-2060-C serves as a high-performance replacement for traditional Vivaldi antennas. It offers enhanced power handling capabilities of up to 100W, surpassing those of Vivaldi designs.This Dual Polarized Horn Antenna covers the L band, the ODPA-2060-C can be used as low power radiators.Designed with an aperture matching that of the Vivaldi antenna, the ODPA-2060-C ensures compatibility in existing systems. Moreover, its structure is optimized to minimize coupling and interference with neighboring antennas in array configurations. The antenna is available with SMA connectors.
ODPA-2060-C | |
| 14 dBi Gain, 2GHz to 6GHz, Dual Polarized Horn Antenna ODPA-2060-C | |
Property | Value |
| Min. Frequency (GHz) | 2 |
| Max. Frequency (GHz) | 6 |
| Gain (dBi) | 14 |
| Impedance (Ohm) | 50 |
| Connector | SMA Connectors |
| VSWR | 1.5Typ. |
Features | |
| Low return loss / VSWR | |
| High Power Handling Capability | |
| Wide bandwidth, less in size and weight | |
| The characteristics of the neighboring antenna are not affected in the antenna array | |
| Aperture is the same size as vivaldi antenna which makes it suitable for antenna array | |
Applications | |
| EMC, 5G communication testing | |
| Suitable for high-precision applications | |
| Applicable for Radar system, Antenna characterization and measurments | |
Mark Bennett –
We use the ODPA-2060-C horn antenna for our 5G EMC lab testing. Its stable 14dBi gain delivers consistent signal across 2-6GHz, and the typical 1.5 VSWR keeps signal reflection minimal. Wide bandwidth, dual polarization works perfectly for antenna array measurement, test data stays steady all day long.
