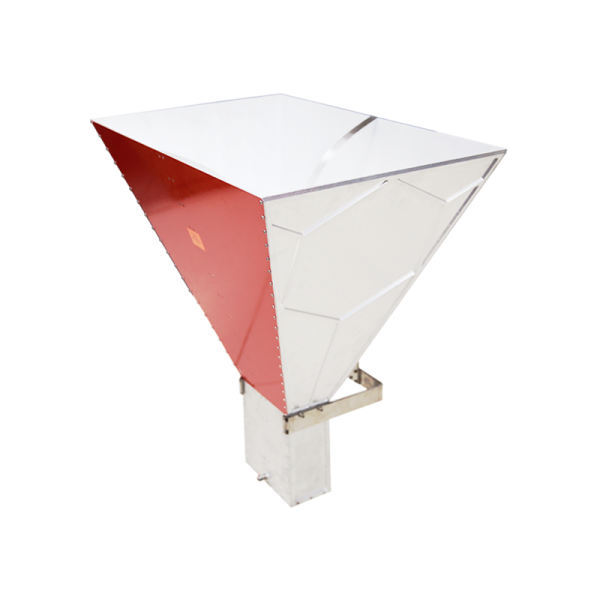

13 dBi Gain, 0.8 GHz to 2 GHz Broadband Dual Ridged Horn Antenna OBH-80D-15

-16%

13 dBi Gain, 0.8 GHz to 2 GHz Broadband Dual Ridged Horn Antenna OBH-80D-15

$6900

The OBH-80D-15 operates over a frequency range of 800MHz to 2GHz, maintaining a single lobe at higher frequencies than traditional Dual-Ridged Horn Antennas. Its design includes a lightweight structure, reducing the total weight to just 13kg, and optimizations in the coaxial design allow for an excellent VSWR coefficient in ultra-wideband applications. With a gain of 13dBi, cross-polar isolation of 25dB, and power handling up to 200 watts, this antenna supports linear polarized waveforms, making it a powerful and reliable tool for a range of industrial, technological, and research applications.

The OBH-80D-15 is ideal for a variety of applications due to its lower frequency range. Firstly, it is particularly suited for television and broadcasting, supporting UHF and VHF bands for over-the-air communication services. In cellular communications, this antenna is widely used for testing and deploying 2G, 3G, and 4G LTE networks, where lower frequencies provide better signal penetration and coverage. Additionally, this antenna is well-suited for IoT and LPWAN (Low Power Wide Area Networks), including technologies like LoRa, NB-IoT, and Sigfox, which rely on lower frequencies for extended range and lower power consumption. The OBH-80D-15 is also highly effective for EMC testing in the low to mid-frequency range, ensuring devices comply with relevant low-frequency standards. Moreover, it is often used in RF testing for lower frequency wireless systems, such as Bluetooth and Wi-Fi 2.4GHz applications, making it a versatile tool in various wireless communication environments.
Dual-Ridged Horn Antenna:ttps://www.rfecho.com/product-category/emc-antenna/emc-broadband-dual-ridged-horn-antenna/

Description

The OBH-80D-15 operates over a frequency range of 800MHz to 2GHz, maintaining a single lobe at higher frequencies than traditional Dual-Ridged Horn Antennas. Its design includes a lightweight structure, reducing the total weight to just 13kg, and optimizations in the coaxial design allow for an excellent VSWR coefficient in ultra-wideband applications. With a gain of 13dBi, cross-polar isolation of 25dB, and power handling up to 200 watts, this antenna supports linear polarized waveforms, making it a powerful and reliable tool for a range of industrial, technological, and research applications.

The OBH-80D-15 is ideal for a variety of applications due to its lower frequency range. Firstly, it is particularly suited for television and broadcasting, supporting UHF and VHF bands for over-the-air communication services. In cellular communications, this antenna is widely used for testing and deploying 2G, 3G, and 4G LTE networks, where lower frequencies provide better signal penetration and coverage. Additionally, this antenna is well-suited for IoT and LPWAN (Low Power Wide Area Networks), including technologies like LoRa, NB-IoT, and Sigfox, which rely on lower frequencies for extended range and lower power consumption. The OBH-80D-15 is also highly effective for EMC testing in the low to mid-frequency range, ensuring devices comply with relevant low-frequency standards. Moreover, it is often used in RF testing for lower frequency wireless systems, such as Bluetooth and Wi-Fi 2.4GHz applications, making it a versatile tool in various wireless communication environments.Dual-Ridged Horn Antenna:ttps://www.rfecho.com/product-category/emc-antenna/emc-broadband-dual-ridged-horn-antenna/

SPEC

Broadband Horn Antenna Specifications

13 dBi Gain, 0.8 GHz to 2 GHz

OBH-80D-15

Property

Value

Min. Frequency (GHz)

0.8

Max. Frequency (GHz)

2

Gain(dBi)

13

VSWR (Max.)

2

Polarization

Single Linear

Cross Polar Isolation (dB)

50

Impedance (?)

50

Features

Linear polarized with high polarization purity

Frequency from 0.8 GHz to 2 GHz

Low return loss / VSWR

Wide bandwidth

Uniform Gain

High Power Handling Capability

Radiation pattern contains only one main lobe over the entire frequency range

Each antenna is calibrated individually in line with ANSI C63.5-2006

PDF

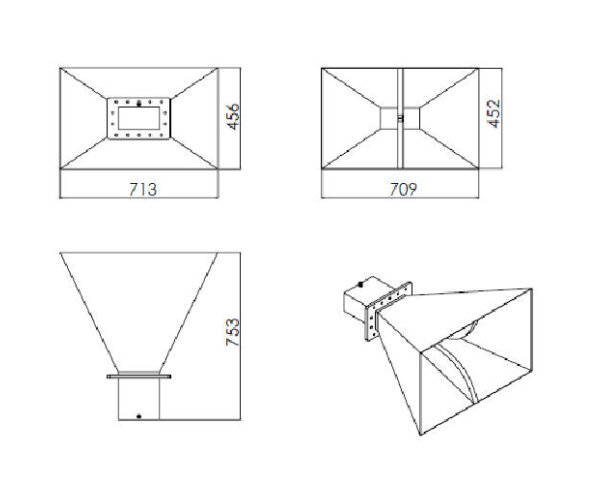

Outline

Additional information

Min. Frequency (GHz)

0.8

Max. Frequency (GHz)

2

Gain (dBi)

13

VSWR (Max.)

2

Cross Polar Isolation (dB)

50

Polarization

Single Linear

Impedance (Ω)

50
