15–25 GHz Four-Channel Transmitter IC – MH213W
LO input frequency: 7.5 to 12.5 GHz
TX output power: 10 / 12 / — dBm (min. / typ. / max.)
TX power variation with frequency: −1.5 to +1.5 dB
Supply voltage: 1.1 V, 3.3 V
MIMO operation supported
SPI control interface
Simultaneous or time-division transmission
- Description
- Datasheet
- Functional Block Diagram
Description
The MH213W is a four-channel transmitter IC covering 15–25 GHz. It integrates a local-oscillator signal path, a 1:4 power splitter, four power amplifiers, a temperature sensor, power detectors and an SPI interface. The four channels support simultaneous or time-division output. Operating state and channel switching are controlled with 3.3 V LVCMOS signals.
Applications: Millimeter-wave security screening, traffic radar, industrial monitoring and fire safety.
Product status: Engineering sample.
Four-Channel Transmitter IC Specifications | |
| 15–25 GHz | |
| MH213W | |
Index | Value |
| TX output frequency | 15 to 25 GHz |
| Number of TX channels | 4 typ. |
| LO input frequency | 7.5 to 12.5 GHz |
| LO input power | −20 dBm typ. |
| TX output power | 10 / 12 / — dBm (min. / typ. / max.) |
| TX power variation with frequency | −1.5 to +1.5 dB |
| TX power variation with temperature | −1.5 to +1.5 dB |
| Channel-to-channel power variation | −1.5 to +1.5 dB |
| Channel-to-channel phase variation | −7 to +7 ° |
| Channel isolation | 40 dB typ. |
| Power-down recovery time | — / 20 / 50 ns (min. / typ. / max.) |
| TX channel switching time | — / 20 / 50 ns (min. / typ. / max.) |
| Power consumption | 260 mW typ.; Continuous wave, one TX channel |
| Operating temperature | −40 to +85 °C |
| Supply voltage | 1.1 V, 3.3 V |
| Package / dimensions | 4.55 × 4.55 mm |
Features | |
| MIMO operation supported | |
| SPI control interface | |
| Simultaneous or time-division transmission | |
| Integrated temperature sensor and power detectors | |
| Power consumption: 260 mW, one channel, continuous wave | |
Application Scenarios

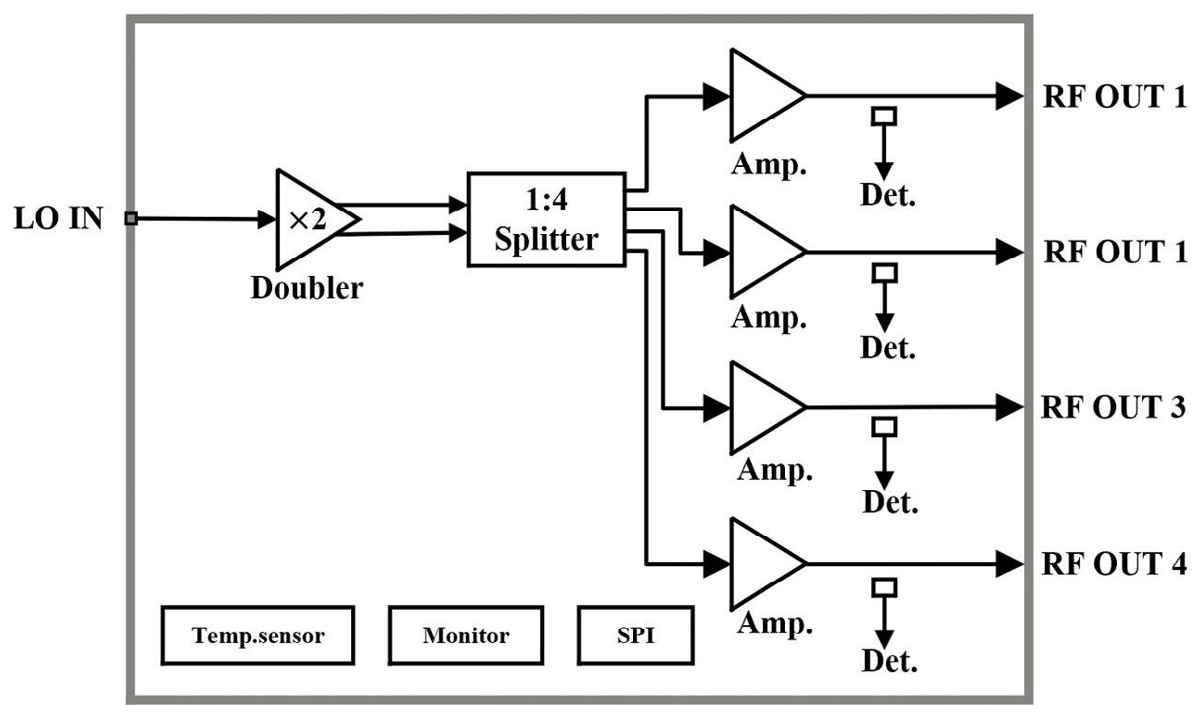

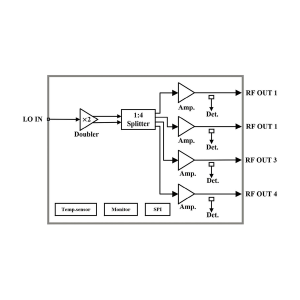

Functional Block Diagram
