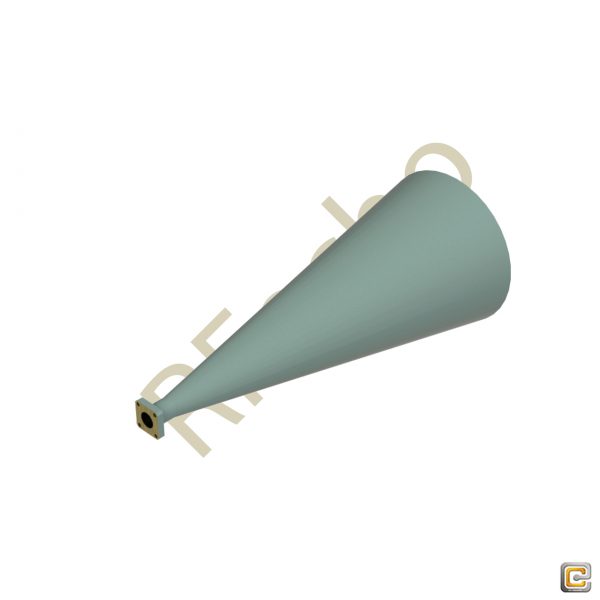

Model OCN-315-15 is a WR-315 Circular Waveguide K Band conical horn antenna that operates from 26 GHz to 33 GHz. The antenna offers 15 dB nominal gain and a typical half-power beamwidth of 30 degrees on the E-plane and 36 degrees on the H-plane.

The horn also offers typical side lobes of 16 dB on the E-plane and 28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.315 diameter circular waveguide with UG-599/U-M flange.

SKU: OCN-315-15 Categories: Conical Horn Antennas, RF Antenna

Description

Model OCN-315-15 is a WR-315 Circular Waveguide K Band conical horn antenna that operates from 26 GHz to 33 GHz. The antenna offers 15 dB nominal gain and a typical half-power beamwidth of 30 degrees on the E-plane and 36 degrees on the H-plane.

The horn also offers typical side lobes of 16 dB on the E-plane and 28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.315 diameter circular waveguide with UG-599/U-M flange.

SPEC

WR-315 Circular Waveguide K Band Conical Horn Antennas

15 dBi Gain, 26 GHz to 33 GHz, 0.315″ Diameter

OCN-315-15

Property

Value

Min. Frequency (GHz)

26

Max. Frequency (GHz)

33

Gain(dBi)

15

3 dB Beamwidth, E-plane (?)

30

3 dB Beamwidth, H-plane (?)

36

Side Lobes, E-Plane (dB)

16

Side Lobes, H-plane (dB)

28

Return Loss (dB)

23

Waveguide

WR-315

Band Type

K Band

Flange

UG-599/U-M flange

Diameter (Inch)

0.315

VSWR

1.15:1

Features

Circular Waveguide Interface

Precisely Machined and Gold Plated

High Return Loss

Linear and Circular Polarization

Applications

Antenna Ranges

Feed Horns

System Setups

PDF

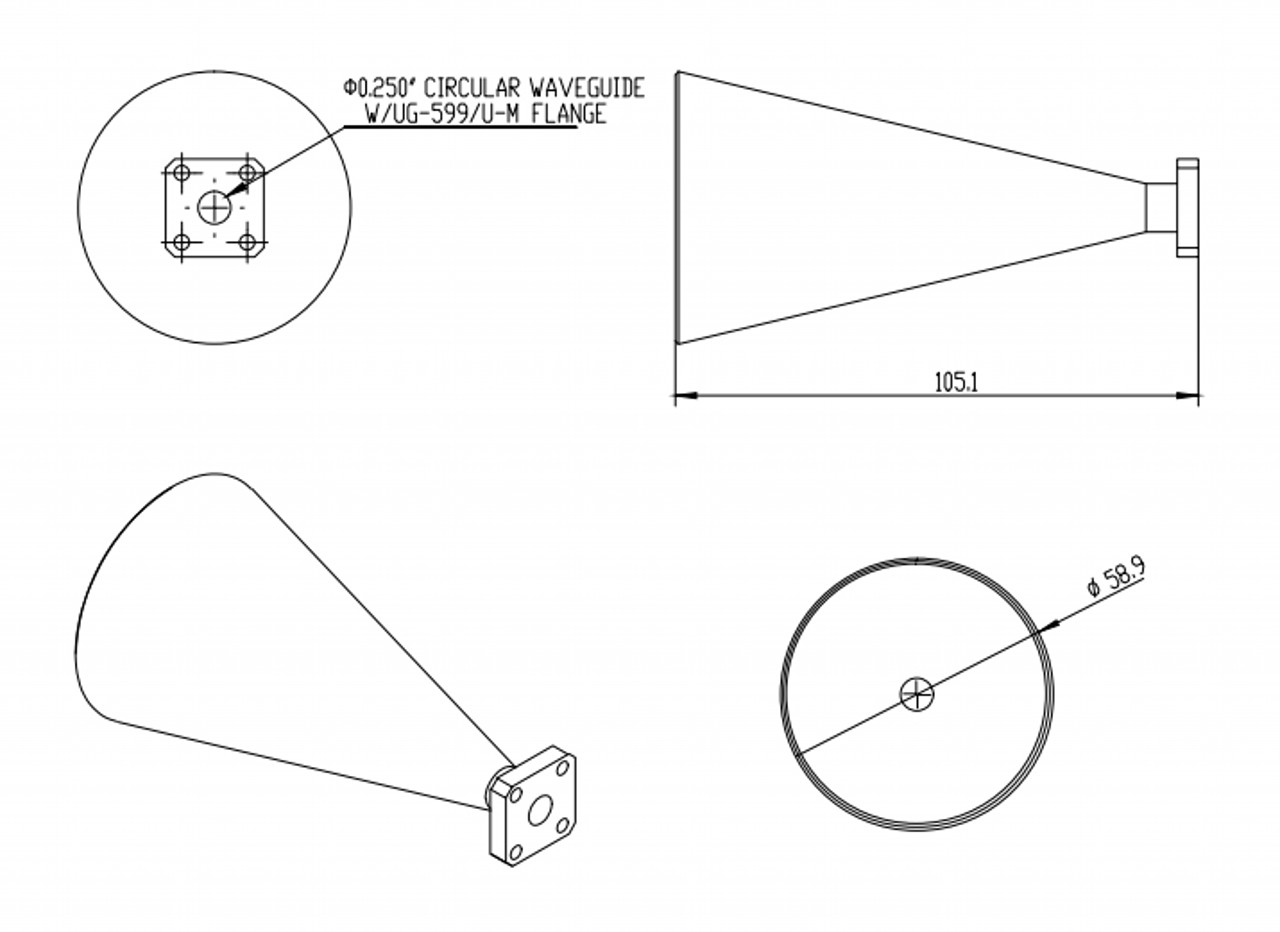

Outline

WR-315 - Circular Waveguide - K Band - Conical Horn Antenna

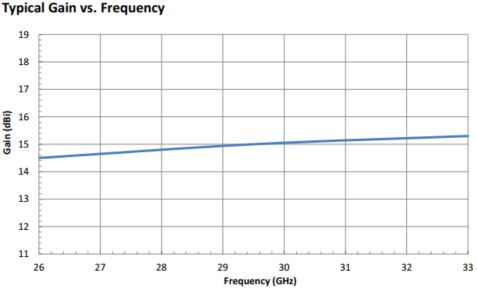

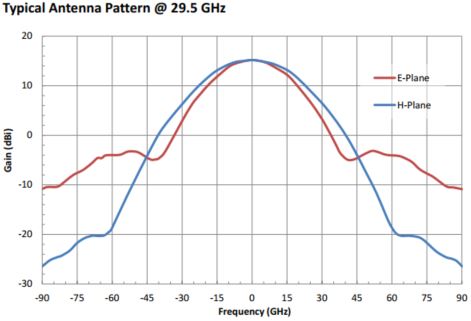

Plot

WR-315 Circular Waveguide K Band Conical Horn Antenna. Nominal Gain: 15dBi. Frequency Range: 26GHz to 33GHz. Diameter: 0.315"WR-315 Circular Waveguide K Band Conical Horn Antenna. Nominal Gain: 15dBi. Frequency Range: 26GHz to 33GHz. Diameter: 0.315"

Additional information

Min. Frequency (GHz)

26

Max. Frequency (GHz)

33

Gain (dBi)

15

Waveguide

WR-315

VSWR

1.15:1

Side Lobes, H-Plane (dB)

28

Side Lobes, E-Plane (dB)

16

Flange

UG-599/U-M flange

Band Type

K Band

Return Loss (dB)

23

Diameter (inch)

0.315
