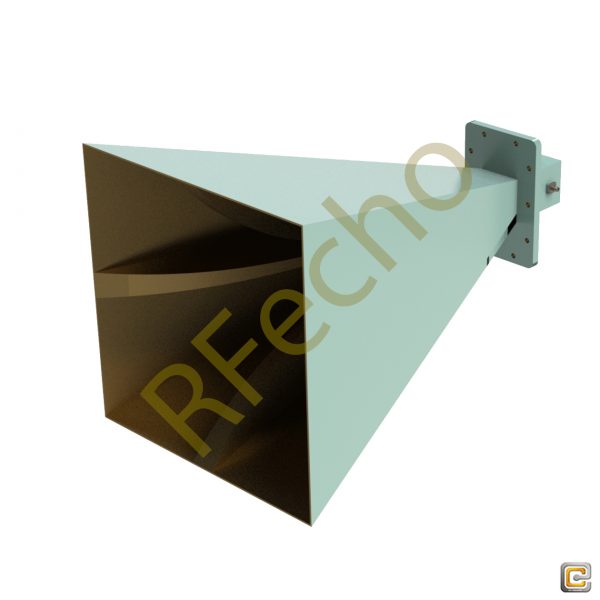

2 GHz to 6 GHz, 15 dBi to 22 dBi Gain, 30 dB Isolation, S band and C band, 2 SMA Connectors, Dual Polarized Horn Antenna

HOT
-15%

2 GHz to 6 GHz, 15 dBi to 22 dBi Gain, 30 dB Isolation, S band and C band, 2 SMA Connectors, Dual Polarized Horn Antenna

$6,350 $5,398

This RFecho quad ridged  Antenna with dual-polarization covers the frequency range from 2GHz to 6 GHz and is designed for the measurement of antennas in the MW range. This Dual Polarized Horn Antenna covers the S-band, C band,  the ODPA-2060 can be used as low power radiators.  with a maximum continuous power handling capability of 200W.

 Good structural stability guarantees cross-polarization isolation is better than 30dB.

Two connectors input permit simultaneous measurements for both horizontal and vertical polarizations for linearly polarized waves.  Dual Polarized Horn Antenna having the gain from 15 dBi to 22 dBi and the VSWR of <2.0:1.

Used for Radar cross-section and testing applications.

Description

This RFecho quad ridged  Antenna with dual-polarization covers the frequency range from 2GHz to 6 GHz and is designed for the measurement of antennas in the MW range. This Dual Polarized Horn Antenna covers the S-band, C band,  the ODPA-2060 can be used as low power radiators.  with a maximum continuous power handling capability of 200W.

Good structural stability guarantees cross-polarization isolation is better than 30dB.

Two connectors input permit simultaneous measurements for both horizontal and vertical polarizations for linearly polarized waves.  Dual Polarized Horn Antenna having the gain from 15 dBi to 22 dBi and the VSWR of <2.0:1.

Used for Radar cross-section and testing applications, More Rfecho RF Antenna.

SPEC

Dual Polarized Horn Antenna

2 GHz to 6 GHz, 15 dBi to 22dBi Gain, 30 dB Isolation, S-band and C band, 2 SMA Connectors, Dual Polarized Horn Antenna

ODPA-2060  quad ridged horn antenna with two polarizations

Property

Value

Min. Frequency (GHz)

2

Max. Frequency (GHz)

6

Min. Gain (dBi)

15

Max. Gain (dBi)

22

VSWR (Max.)

2.0:1

Continuous Power (W) (Max.)

50

Impedance (?)

50

Connection Type

N-type

Cross Polar Isolation (dB)

>30

Band Type

S band and C band

PDF

Outline

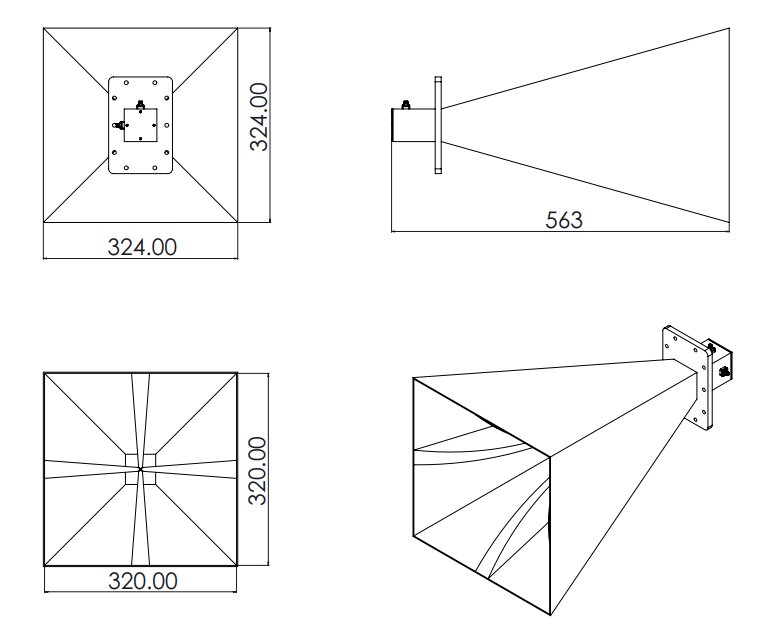

ODPA 2060 outline 2 GHz to 6 GHz, 15 dBi to 22 dBi Gain, 30 dB Isolation, S band and C band, 2 SMA Connectors, Dual Polarized Horn Antenna

Plot

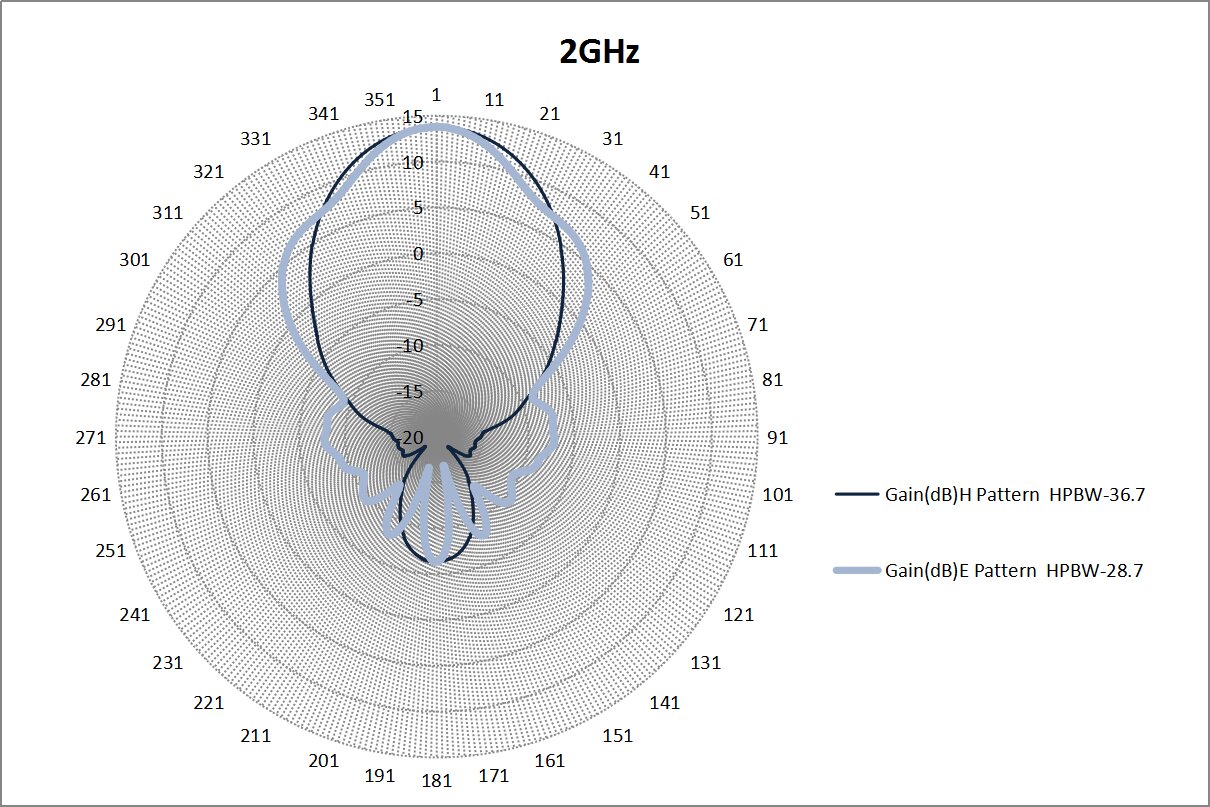

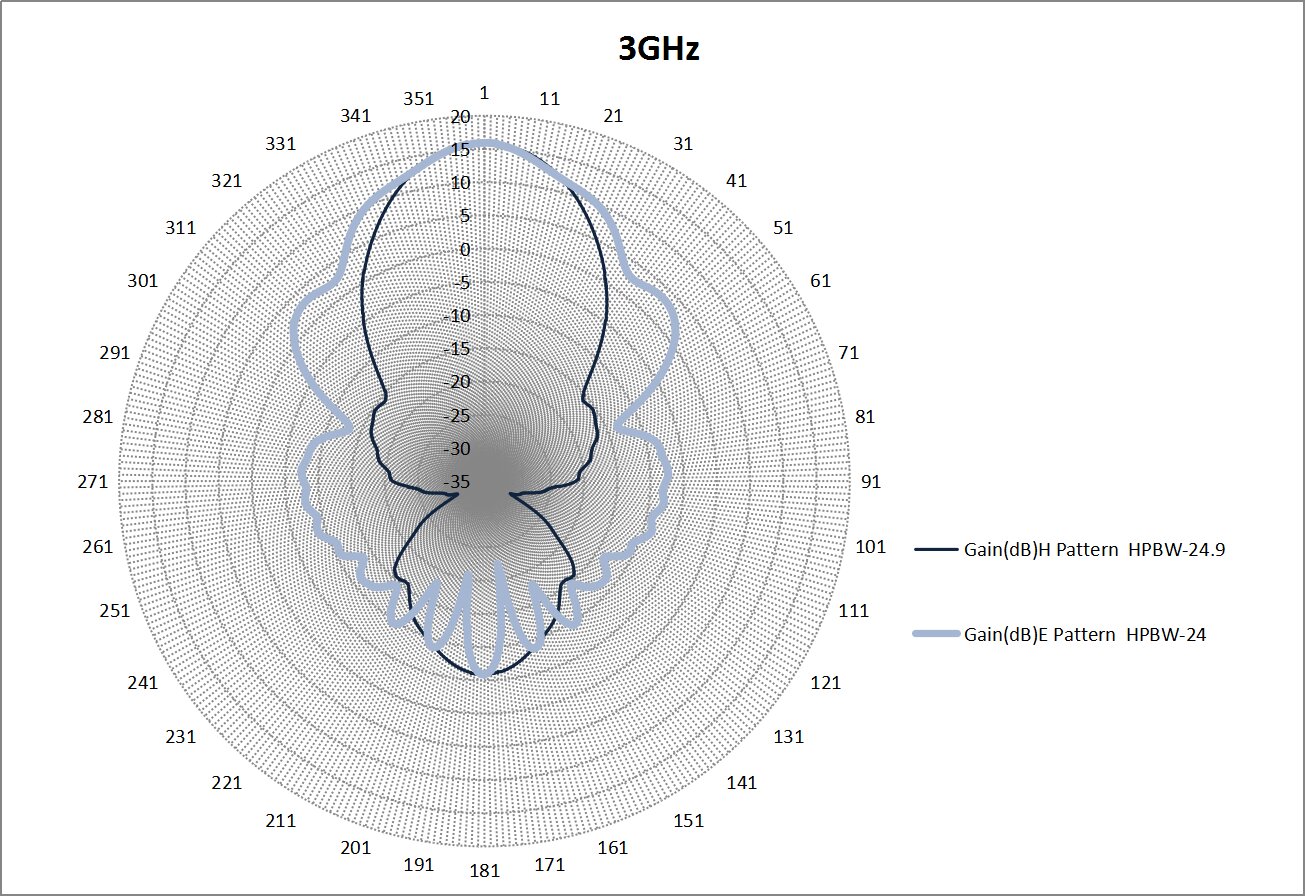

ODPA 2060 plot1 2 GHz to 6 GHz, 15 dBi to 22 dBi Gain, 30 dB Isolation, S band and C band, 2 SMA Connectors, Dual Polarized Horn AntennaODPA 2060 plot2 2 GHz to 6 GHz, 15 dBi to 22 dBi Gain, 30 dB Isolation, S band and C band, 2 SMA Connectors, Dual Polarized Horn AntennaODPA 2060 plot3 2 GHz to 6 GHz, 15 dBi to 22 dBi Gain, 30 dB Isolation, S band and C band, 2 SMA Connectors, Dual Polarized Horn Antenna

Additional information

Min. Frequency (GHz)

2

Max. Frequency (GHz)

6

Min. Gain (dBi)

Max. Gain (dBi)

Continuous Power (W) (Max.)

Band Type

Connection Type

Impedance (Ω)

Cross Polar Isolation (dB)
