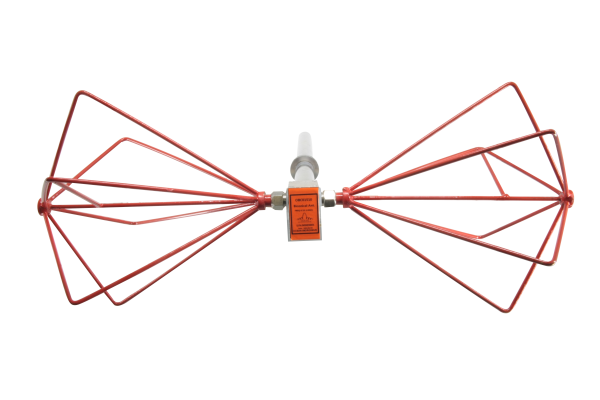

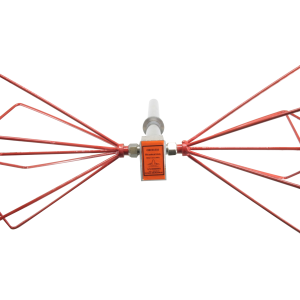

170 MHz to 1100 MHz, N Female, EMC Biconical Antenna OBC-170M1100M-200W

170 MHz to 1100 MHz, N Female, EMC Biconical Antenna OBC-170M1100M-200W

$1590

Biconical antenna is a vertically polarized omnidirectional antenna. Its frequency range is 170 MHz to 1100 MHz. Its pattern stability is better. Biconical antenna model OBC-170M1100M-200W is used for transmission and immunity test to meet various EMC standards. Its broadband characteristics make it an ideal choice for a wide range of EMI testing applications, including demonstrating compliance with FCC, CE, MIL-STD, RTCADO-160, and other requirements.

SKU: OBC-170M1100M-200W Categories: Biconical Antenna, EMC Antenna, EMC-Biconical Antenna, RF Antenna

Description

SPEC

Biconical antenna is a vertically polarized omnidirectional antenna. Its frequency range is 170 MHz to 1100 MHz. Its pattern stability is better. Biconical antenna model OBC-170M1100M-200W is used for transmission and immunity test to meet various EMC standards. Its broadband characteristics make it an ideal choice for a wide range of EMI testing applications, including demonstrating compliance with FCC, CE, MIL-STD, RTCADO-160, and other requirements.

OBC-170M1100M-200W biconical EMC broadband antenna has a durable aluminum alloy, and we powder coated them to improve corrosion resistance.OBC-170M1100M-200W model is used for radiation and immunity testing to meet various EMC standards. The broadband characteristic of the biconical antenna makes it an ideal choice for scanning measurement and automatic measurement systems. Biconical antennas can be used for many applications, in which half-wave dipoles have been used traditionally. An enormous reduction of measurement time can be achieved because the time-consuming tuning of the antenna elements to the half-wavelength is not needed, an important condition for swept broadband.

Electrical Specifications

170 MHz to 1100 MHz, N Female

OBC-170M1100M-200W

Property

Value

Min. Frequency (MHz)

170

Max. Frequency (MHz)

1100

Impedance (?)

50

Power Handling (W)

200

Balun Type Transform Ratio

NA

Connection Type

N Female

Features

Low Return Loss

Linear gain with frequency

EMC and EMI testing

Radio Link Testing

Applications

Broadband RX-Antenna for Emission Testing

TX-Antenna for Immunity testing

Specially designed at low frequencies

PDF

Outline

Biconical Antenna 170 MHz to 1100 MHz for EMI/EMC Testing

Additional information

Min. Frequency (MHz)

170

Max. Frequency (MHz)

1100

Impedance (Ω)

50

Power Handling (W)

200

Max. Output Power (mW), AM

NA

Min. Gain (dBi)

NA

Max. Gain (dBi)

NA

Balun Type Transform Ratio

NA

Connection Type

N Female
