‘-31 dBi to 1 dBi Gain,30 MHz to 1000 MHz, SMA (F) or N, Biconical Antenna-RFecho

The OBC-30M-10-E is designed to deliver higher gain, particularly in the low-frequency range, ensuring compliance with even the most restrictive EMC standards. Each EC Antenna undergoes rigorous laboratory testing to guarantee superior performance and reliability. The antenna is coated with high-quality rubber paint, protecting against mechanical damage and environmental factors. Additionally, it features a top-quality integrated tripod connection for a stable and convenient setup and an SMA connector for easy integration with various test systems.

The OBC-30M-10-E is highly effective for various demanding applications. First of all, it is commonly used for standard EMC testing, for industries like consumer electronics, telecommunications, and automotive. This antenna is also particularly suited for broadcasting and communications, covering critical frequencies such as FM radio, VHF TV broadcasting, and communication systems like Tetra/BOS, which are vital for emergency services operating in the 300 MHz range. Lastly, for commercial applications, this antenna excels in testing commercial electronics and radio communication devices where high-frequency testing is crucial. https://www.rfecho.com/product-category/rf-antenna/biconical-antenna/

SKU: OBC-30M-10-EA Categories: Biconical Antenna, RF Antenna

Description

The OBC-30M-10-E is designed to deliver higher gain, particularly in the low-frequency range, ensuring compliance with even the most restrictive EMC standards. Each EC Antenna undergoes rigorous laboratory testing to guarantee superior performance and reliability. The antenna is coated with high-quality rubber paint, protecting against mechanical damage and environmental factors. Additionally, it features a top-quality integrated tripod connection for a stable and convenient setup and an SMA connector for easy integration with various test systems.

The OBC-30M-10-E is highly effective for various demanding applications. First of all, it is commonly used for standard EMC testing, for industries like consumer electronics, telecommunications, and automotive. This antenna is also particularly suited for broadcasting and communications, covering critical frequencies such as FM radio, VHF TV broadcasting, and communication systems like Tetra/BOS, which are vital for emergency services operating in the 300 MHz range. Lastly, for commercial applications, this antenna excels in testing commercial electronics and radio communication devices where high-frequency testing is crucial. https://www.rfecho.com/product-category/rf-antenna/biconical-antenna/

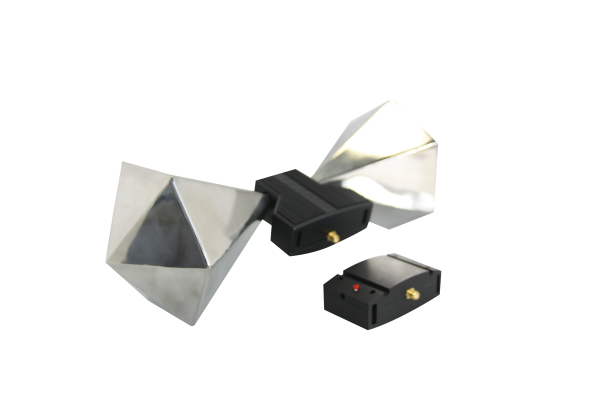

Biconical Antenna with Amplifier

9 dBi to 41 dBi Gain,30 MHz to 1000 MHz, SMA (F) or N

OBC-30M-10-EA

Property

Value

Min. Frequency (MHz)

30

Max. Frequency (MHz)

1000

Impedance (?)

50

Max. Output Power (mW), AM

100

Min. Gain (dBi)

9

Max. Gain (dBi)

41

Connection Type

SMA (F) or N

Features

The excellent cost-effective choice for low-frequency measurements down to 50MHz

Typical standard calibration data (on CD)

Coverage of various mobile radio frequency ranges

Suitable for field-strength and EMC measurements due to high precision

Compact design

Can be used in the lab and for open-field application

Applications

Frequency range 50MHz – 700MHz

Radio & TV Tetra/BOS

ISM434

Additional information

Min. Frequency (MHz)

30

Max. Frequency (MHz)

1000

Impedance (Ω)

50

Power Handling (W)

NA

Max. Output Power (mW), AM

100

Min. Gain (dBi)

9

Max. Gain (dBi)

-41

Balun Type Transform Ratio

NA

Connection Type

SMA (F) or N
