Ultra wide-band dual ridged horn antenna 18-50GHz
Gain: 13-17dBi.
VSWR: 1.5:1 Typ.
High gain and low VSWR
Ideal for EMC/RF measurements

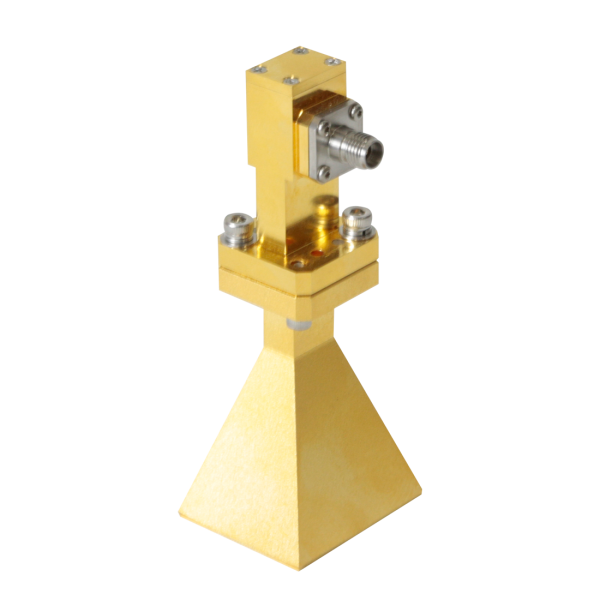

OBH-180500-15 Ultra wide-band dual ridged horn antenna supports linear polarized waveforms.
This Ultra wide-band dual ridged horn antenna is appropriate for the test of wireless and telecom communication antennas
- Description
- Datasheet

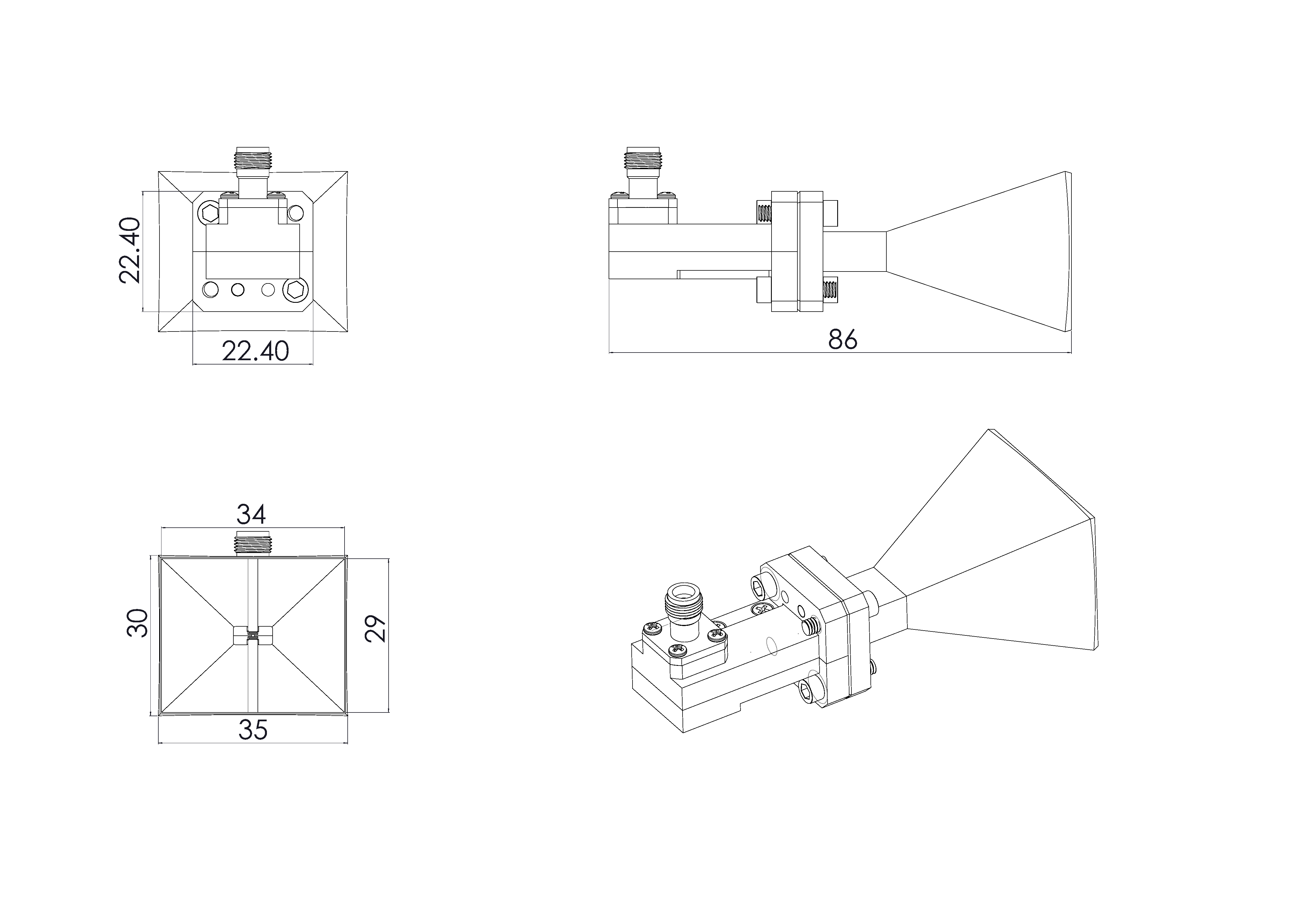

- Outline
- Reviews (3)
Description
OBH-180500 double ridge horn antennas operate broadband from 18GHz to 50GHz. The antenna supports linear polarized waveforms. This antenna is appropriate for the test of wireless and telecom communication antennas. High gain and low VSWR permit the measurement of weak signals and the generation of high field strengths without any significant return loss.
OBH-180500 is calibrated individually in line with ANSI C63.5-2006, making the antennas ideal for EMC/RF measurements. OBH-180500’s radiation pattern contains only one single main lobe over the entire frequency range without any other side lobes. More Rfecho RF Antenna.
Broadband Horn Antenna Specifications | |
| 15 dBi Gain, 18 GHz to 50 GHz | |
| OBH-180500-15 | |
Property | Value |
| Min. Frequency (GHz) | 18 |
| Max. Frequency (GHz) | 50 |
| Gain(dBi) | 15 |
| VSWR (Max.) | 2.0:1 |
| Polarization | Linear |
| Cross Polar Isolation (dB) | 50 |
| Impedance (Ω) | 50 |
Features | |
| Broad Frequency Range of 18 GHz to 40 GHz | |
| Linearly Polarized High Gain, Low VSWR | |
| Individually Calibrated | |
| Linear polarized with high polarization purity | |
Applications | |
| FCC, MIL-STD, VDE and TEMPEST Testing | |
| Transmission and receiving applications | |
