18.0 GHz to 28 GHz Rejection ≥50 dB @ DC – 15 GHz High Pass Cavity Filter

18.0 GHz to 28 GHz Rejection ≥50 dB @ DC – 15 GHz High Pass Cavity Filter

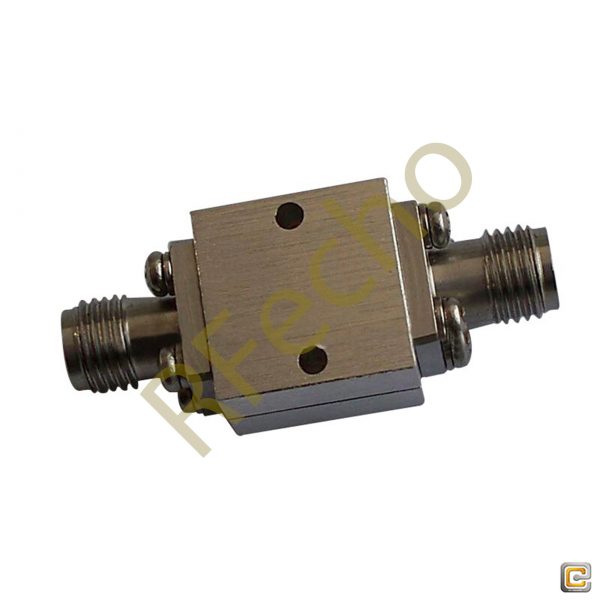

OHP-18000-28000:

  • Cut Off Frequency: 18.0GHz,
  • Pass Band Frequency: 18-28GHz,
  • Pass Band Insertion Loss: 2.0dB,
  • Pass Band VSWR: ≤1 .8:1,
  • Rejection: ≥50 dB @ DC-15 GHz.



SKU: OHP-18000-28000-A Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Filter (OHP) – OHP-18000-28000:

  • Cut Off Frequency: 18.0GHz,
  • Pass Band Frequency: 18-28GHz,
  • Pass Band Insertion Loss: 2.0dB,
  • Pass Band VSWR: ≤1 .8:1,
  • Rejection: ≥50 dB @ DC-15 GHz.

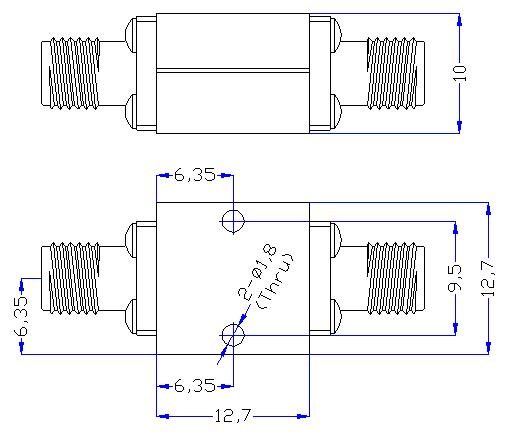

Outline

18.0 GHz to 28 GHz Rejection ≥50 dB @ DC - 15 GHz High Pass Cavity Filter 01

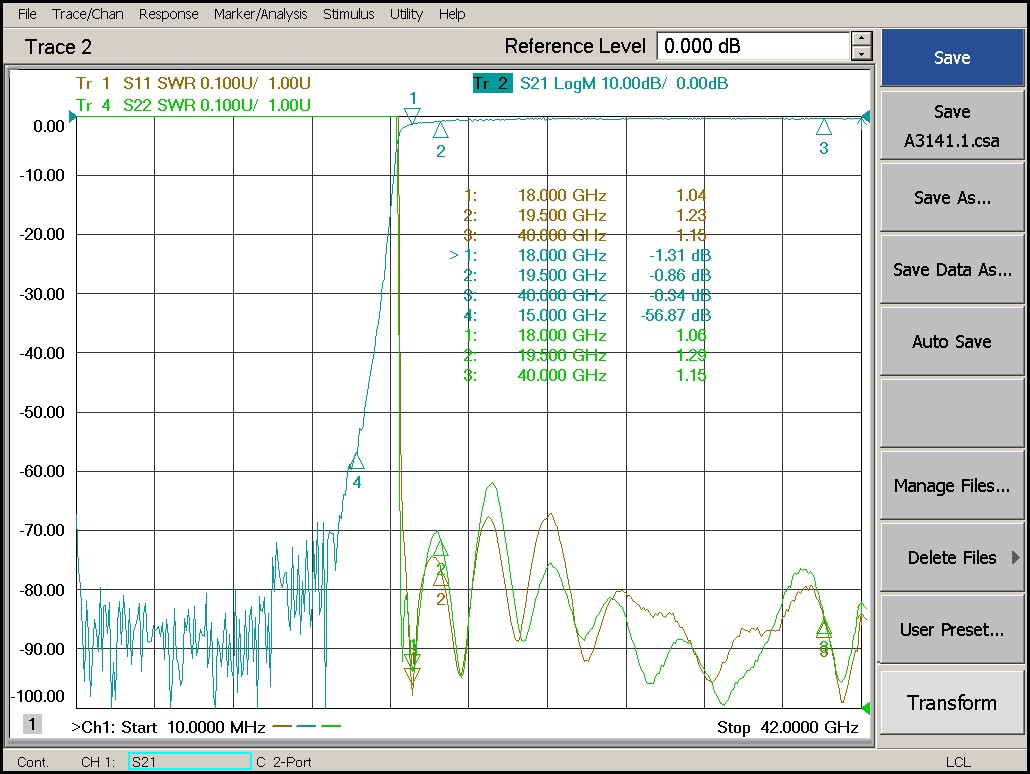

Plot

18.0 GHz to 28 GHz Rejection ≥50 dB @ DC - 15 GHz High Pass Cavity Filter 02

PDF

Additional information

Weight 0.01 kg
Min. Pass Band Frequency (GHz)

18.0

Max. Pass Band Frequency (GHz)

28

Connection Type

SMA-Female

Power Handling (W)

≤15

Insertion Loss

≤2.0dB @ 18 ~ 19.5GHz ≤1.0dB @ 19.5 ~ 28GHz

VSWR

≤1.8:1

Rejection

≥50 dB @ DC – 15 GHz

Impedance (Ω)

50

Surface Finish

Guided Oxygen or Black Paint
