2.11 GHz to 2.2 GHz, 0.3 dB Insertion Loss, 21.0 dB Isolation, SMD Series Isolators Isolator-OG103D-2110-2200
$0.00
Surface-mount design
Low insertion loss of 0.30dB
High isolation of 21dB
Wide operating temperature range from -40 to +105 degC
- Description
- Datasheet

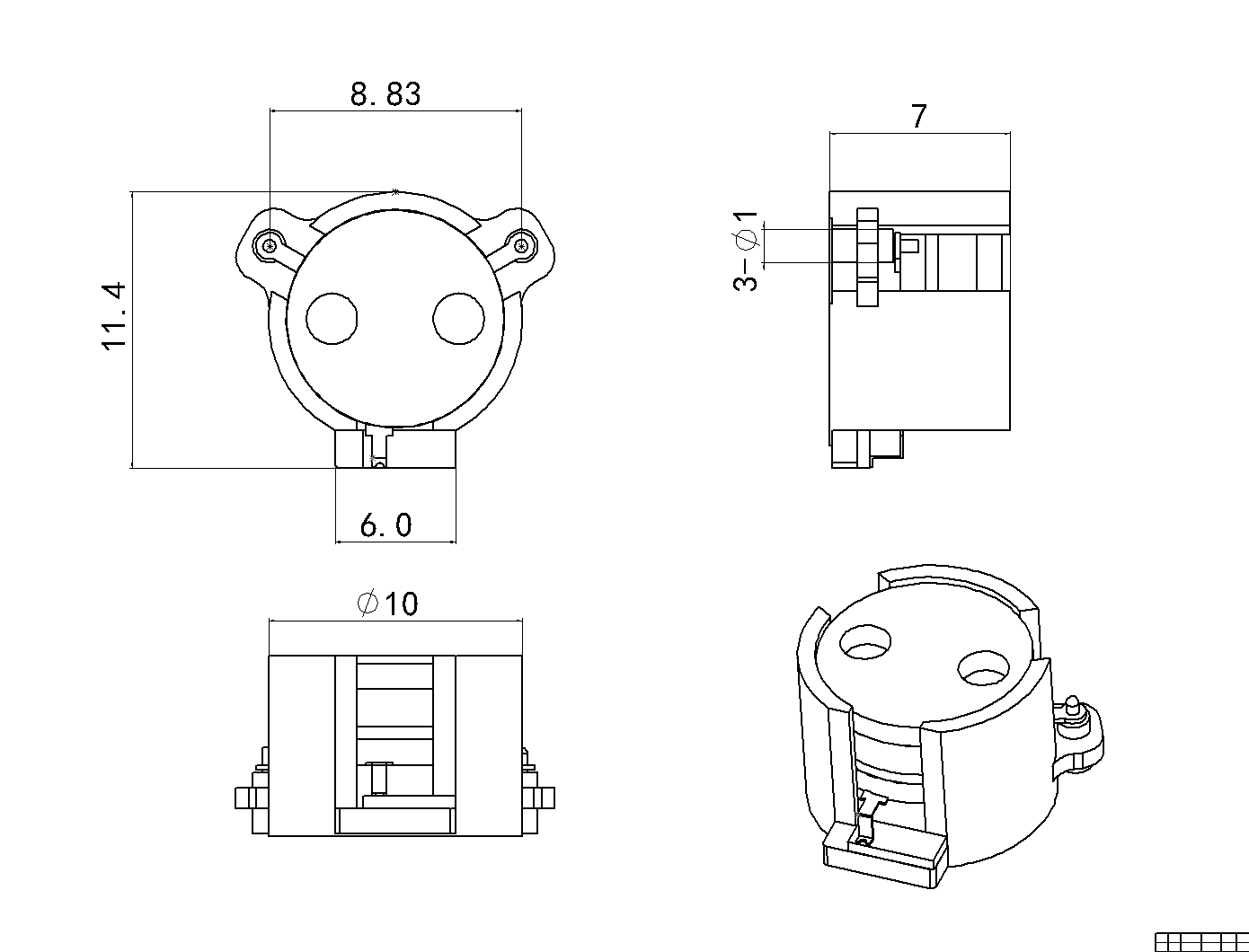

- Outline
- Reviews (0)
Description

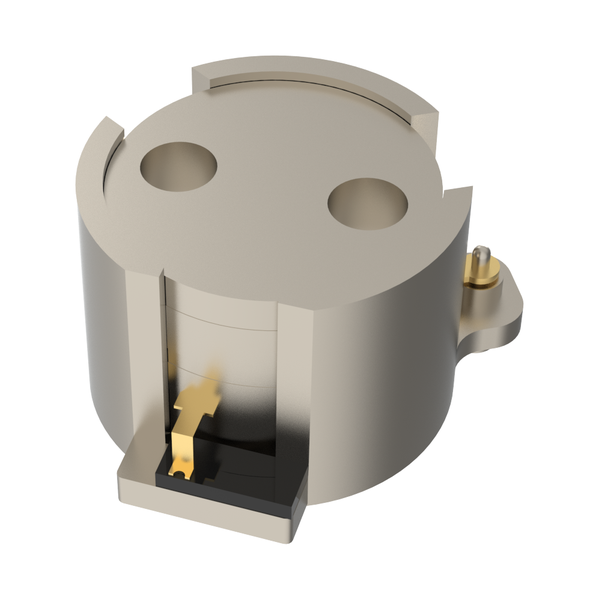

The product named OG103D-2110-2200 is high-performance stripline surface-mounted isolator designed for wireless infrastructure applications, offering low insertion loss and high isolation.
OG103D-2110-2200 |
|
|
2.11 GHz to 2.2 GHz, 0.3 dB Insertion Loss, 21.0 dB Isolation, SMD Series Isolators Isolator-OG103D-2110-2200 |
|
Property |
Value |
|
Frequency (MHz) |
2110-2200 |
|
Return Loss (dB) |
21 |
|
Isolation (dB) |
21 |
|
Insertion Loss (dB) |
0.3 |
|
IMD3 (dBc) |
-55 |
|
Power (W) |
2 |
|
Operating Temp ( degC) |
-40 to 105 |
Features |
|
|
Surface-mount design |
|
|
Low insertion loss of 0.30dB |
|
|
High isolation of 21dB |
|
|
Wide operating temperature range from -40 to +105 degC |
|
Applications |
|
|
Designed for wireless infrastructure applications, offering low insertion loss and high isolation. |
|
