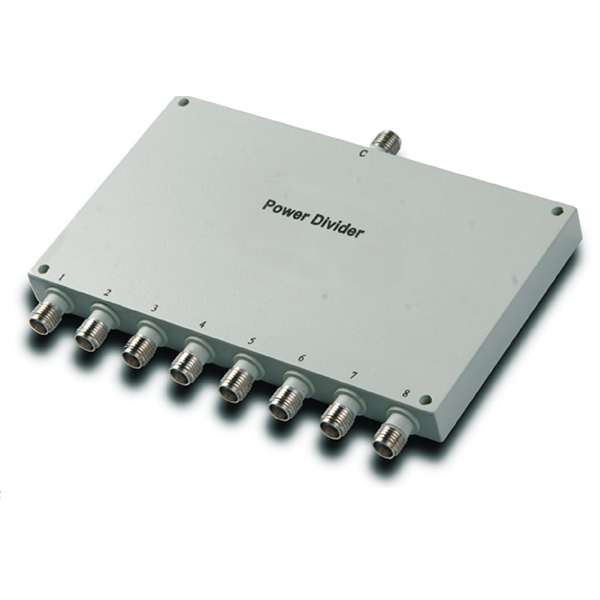

2-4GHz Insertion Loss 0.90dB SMA Connector 0° Power Divider
SMA connector 0° power divider
Frequency Coverage: 2-4GHz
Small size, low loss, low VSWR, high isolation
High mass production consistency
Applications: Electronic warfare, radar, navigation, test & measurement, communications
Used for 8-way microwave signal distribution and synthesis
- Description
- Datasheet

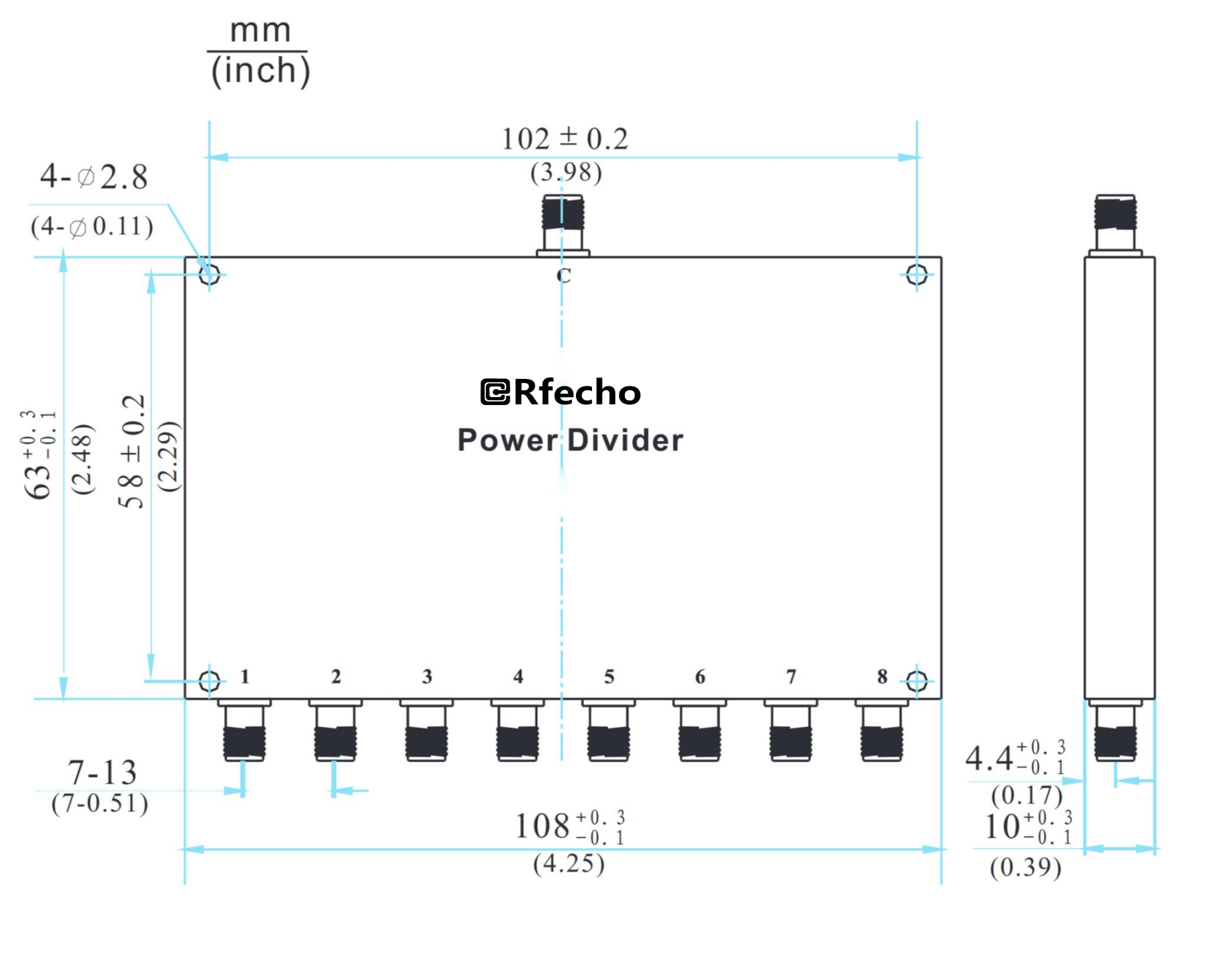

- Outline
- Reviews (0)
Description
The A-series power dividers are SMA connector 0° power dividers, with the full series covering 0.5-18GHz. They featuresmall size, low loss, low VSWR, and high isolation. This series utilizes mass production control methods, ensuring highproduct consistency to meet large-volume supply requirements. The OPD-A0832 is primarily used in electronic war-fare, radar, navigation, test and measurement, and communication systems for the distribution and synthesis of 8-waymicrowave signals.
OPD-A0832 |
|
|
2-4GHz Insertion Loss 0.90dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
2-4GHz |
|
Insertion Loss |
0.90dB |
|
Isolation |
20dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.40dB |
|
Phase Balance |
±5° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.3 |
|
Output VSWR |
1.2 |
|
Compliance |
Compliant with GJB-1509-1992 test items and requirements |
Features |
|
|
SMA connector 0° power divider |
|
|
Frequency Coverage: 2-4GHz |
|
|
Small size, low loss, low VSWR, high isolation |
|
|
High mass production consistency |
|
|
Applications: Electronic warfare, radar, navigation, test & measurement, communications |
|
|
Used for 8-way microwave signal distribution and synthesis |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
